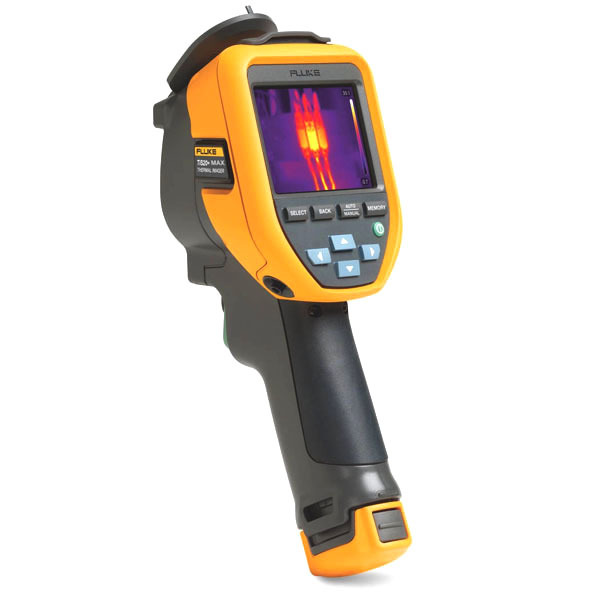

Fluke TiS20+ MAX Thermal Imaging Camera

All the features and functionality of the TiS20+ with the addition of a higher temperature measurement range of up to 400 °C.

Need to thermal image objects and surfaces above 150° C.
The TiS20+ MAX is the right thermal camera for:

  • Higher temperature machinery assessment (up to 400 ° C)
  • Heating, ventilation, air conditioning, and refrigeration technicians
  • Maintenance technicians

    • Due to its detector resolution of only 120 x 90 (10,800 pixels), fixed focus lens and the geometric resolution of 7.6mRad, it is recommended that if you are intending to thermal image smaller objects, or materials and objects at distance, the TiS55+ and above models are better suited and will provide more accurate and detailed thermal results. Click here to learn more about the TiS55+.

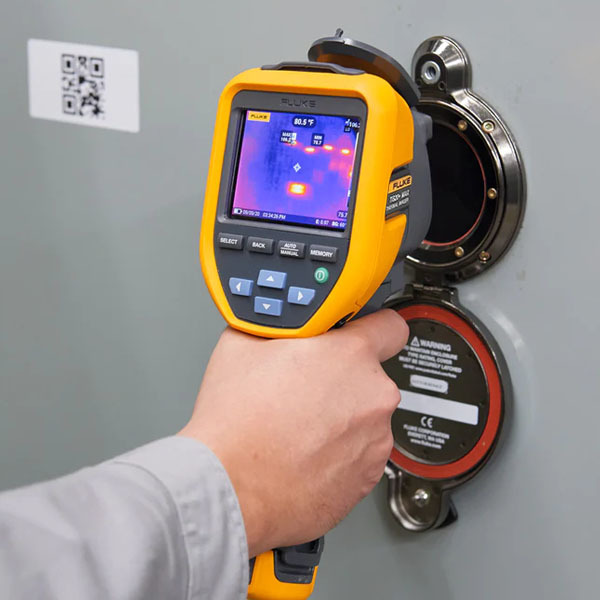

    In thermography, context matters. Let Fluke IR-Fusion™ make your job easier by using a thermal image overlaid on a visual light image to give you the full picture of where the issue is before it becomes a problem. Simply slide your finger across the screen to adjust the level of infrared. Whether you are finding an uneven load on a switchgear or inspecting a ventilation system, the Fluke TiS20+ helps you detect issues quickly.

    Specifications

    • Detector Size: 120 x 90 (10,800 pixels)
    • SuperResolution: No
    • Thermal Sensitivity (NETD): 0.06° C (60 mK)
    • Temperature Measuring Range: -20 to +400° C
    • Frame Rate: 9Hz
    • Lens Size: 50x38°
    • Display: 3.5" touchscreen LCD
    • Geometric Resolution: 7.6 mRad; D:S 130:1
    • IR-Fusion®: Yes
    • Picture In Picture (PIP): No
    • Focus System: Fixed
    • MultiSharp™ focus: No
    • LaserSharp® Auto Focus: No
    • Video Recording: No
    • Video Out/External Monitor: No
    • Voice Annotation: Optional Bluetooth Headset
    • Connectivity: WiFi, Mini USB
    • Battery Type: Li-Ion Smart Battery
    • Battery Life: approx. 5 hours continuous
    • Weight: 720 grams
    • Warranty: 2 Years

    Packages

    Product Details Price
    Fluke TiS20+ MAX Thermal Imaging Camera

    TiS20+ MAX camera with 50x38° lens, mains power supply, 1x Li-Ion smart battery, USB cable and soft transport bag, Fluke Connect APP and Desktop download.

    • INFRARED-FLUKE-TiS20+ MAX
      $3,535.00 + GST
    Fluke TiS20+ MAX Bluetooth Headset

    Bluetooth Headset for TiS20+ MAX.

    • INFRARED-FLUKE-TiS20+ MAX HEADSET
      $154.00 + GST
    Fluke TiS20+ 12V Automotive Charger

    Automotive 12V Charger for TiS20+.

    • INFRARED-FLUKE-TiS20+ MAX 12VCHARGER
      $119.00 + GST
