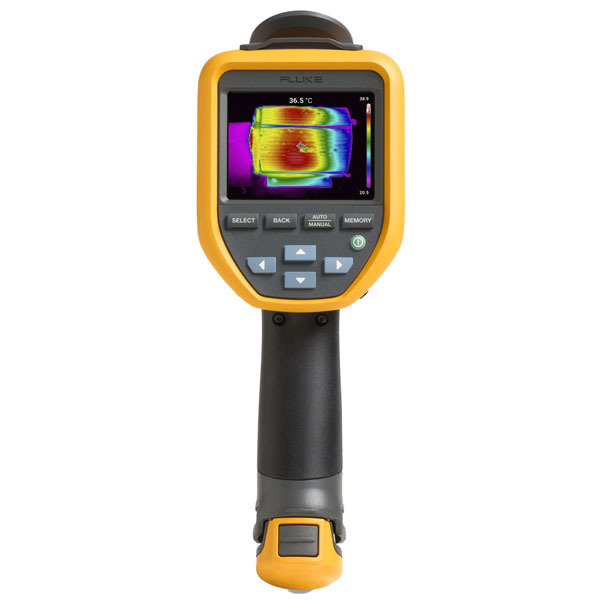

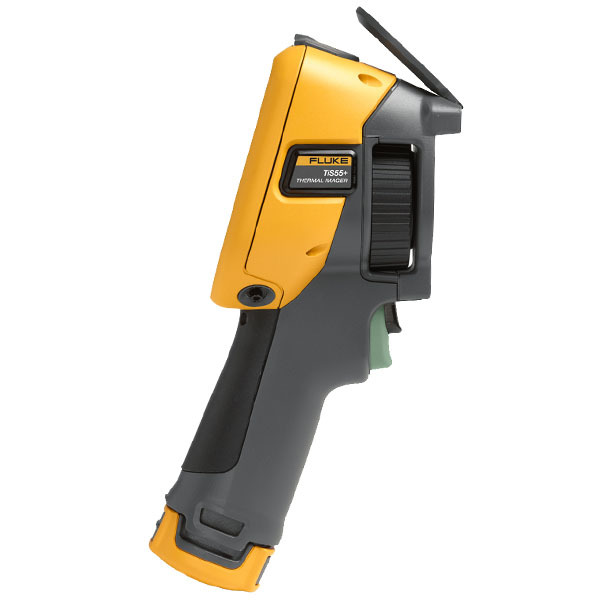

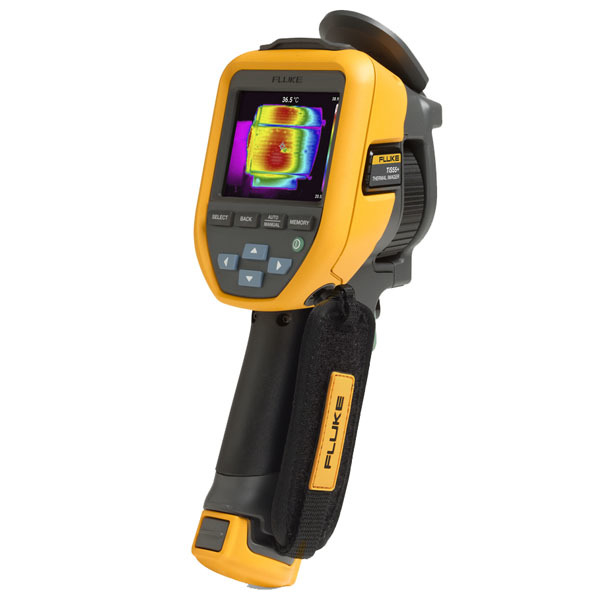

Fluke TiS55+ Thermal Imaging Camera
The Fluke TiS55+ blends performance and packed features with economy, featuring a 256 x 192 resolution detector and a low 40mK thermal sensitivity.
The Fluke TiS55+ is the ideal thermal imaging camera for the beginner or individual wanting to achieve excellent thermal imaging results, across multiple surfaces, objects and materials, without the large cost.
Due to its thermal detector specification of 256 x 192 (49,152 pixels) with a low 40mK thermal sensitivity, high temperature range of up to 550 °C and a good geometric resolution of 1.91 mRad, the TiS55+ is an excellent economical performer across multiple industries.
It's use is well suited to;
When compared with the TiS20=/20+ MAX models, the TiS55+ features 78% better pixel resolution, 33% better thermal sensitivity, 75% better geometric resolution plus manual focusing - crisp imaging at multiple distances from up close to over 10-15 meters away.
Ditch the Clipboard.
With so many inspections in your day, it can be hard to remember what you saw and where you inspected. Maybe you carry around a clipboard or notebook to jot down notes. The TiS55+ comes with a built-in personal assistant, which means you can finally ditch the clipboard and have all the information you need embedded in the images you save.
Be prepared with everything you need to establish a baseline for your equipment, establish a preventive maintenance program and set standard work. The Fluke TiS55+ gives you the thermal data needed to get the job done.
Specifications
- Detector Size: 256 x 192 (49,152 pixels)
- SuperResolution (NETD): No
- Thermal Sensitivity (NETD): 0.04° C (40 mK)
- Temperature Measuring Range: -20 to +550° C
- Frame Rate: 9Hz
- Lens Size: 42x30°
- Display: 3.5" touchscreen LCD
- Geometric Resolution: 1.91 mRad
- IR-Fusion®: Yes
- Picture In Picture (PIP): Yes
- Focus System: Manual
- MultiSharp™ focus: No
- LaserSharp® Auto Focus: No
- Video Recording: No
- Video Out/External Monitor: No
- Voice Annotation: Yes, 60 seconds max per image (optional Bluetooth headset required)
- Connectivity: WiFi, Mini USB
- Battery Type: Li-Ion Smart Battery
- Battery Life: approx. 3.5 hours continuous
- Weight: 855g incl. battery
- Warranty: 2 Years
Packages
Product | Details | Price |
---|---|---|

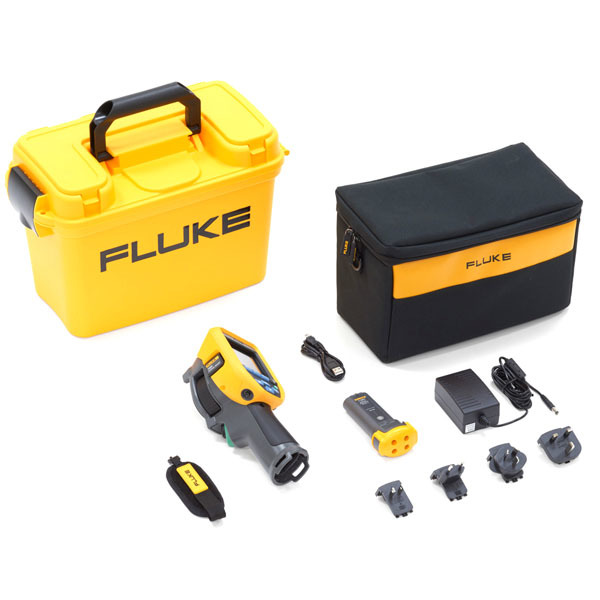

Fluke TiS55+ Thermal Imaging Camera | TiS55+ camera with 42x30° lens, mains power supply, 1x Li-Ion smart battery with charger, USB cable, 4GB micro SD card, soft transport bag, hand strap and hard transport case, Fluke Connect APP and Desktop download. |
|
Fluke TiS55+ Bluetooth Headset | Bluetooth Headset for TiS55+. |
|
Fluke TiS55+ 12V Automotive Charger | Automotive 12V Charger for TiS55+. |
