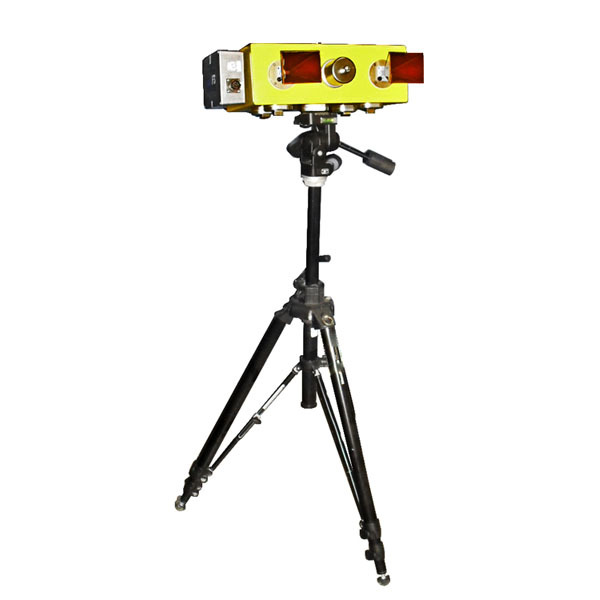

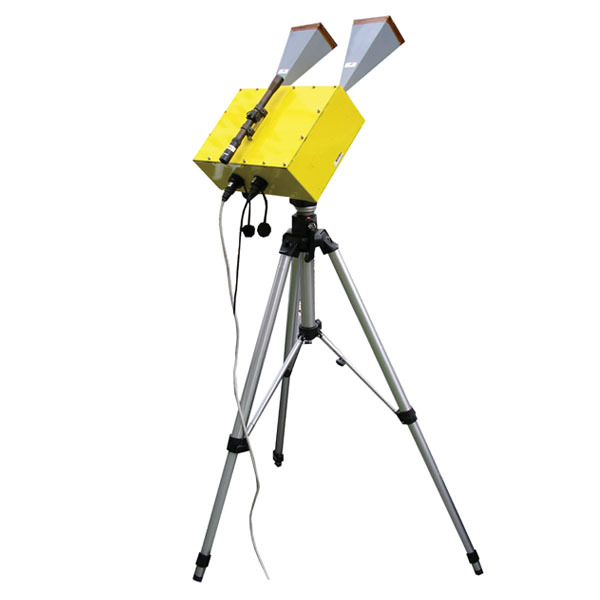

IDS IBIS-FS Interferometric Radar

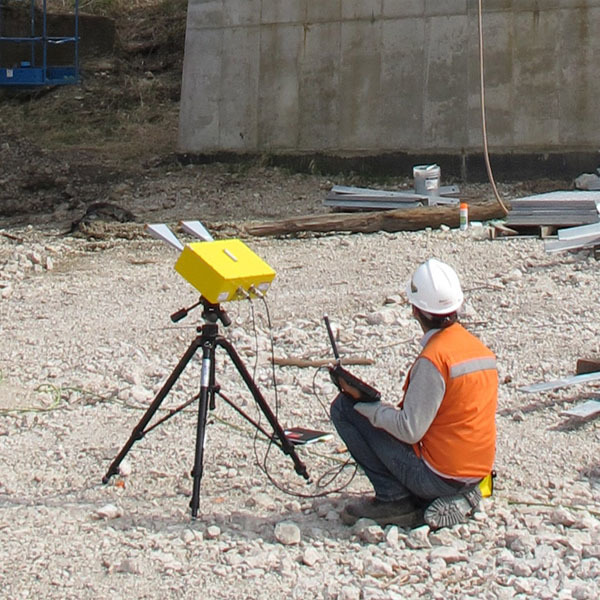

A microwave interferometry based system for remote static and dynamic monitoring, IBIS-FS interferometric radar is used on bridges and other structures including buildings, historical monuments and towers.
In static, the IBIS-FS is ideal for:
- Structure load testing;
- Structure displacement and collapse hazards;
- Cultural heritage preservation.
In dynamic, the IBIS-FS is best used for:
- Structure resonance frequency measurements;
- Structural modal shape analysis.
In either state, the IBIS-FS features:
- Remote sensing: Real-time remote sensing at up to 1 km with no need for equipment to be installed on the monitored structure.
- Accurate measurements: Measures displacements of as little as 0.01mm @ 0.5km range. No standard instrument can achieve such accuracy.
- Ground vibration removal: Built-in accelerometer to cancel the self-induced vibrations transmitted to the radar from the ground (IBIS-FS Plus).
- Sampling: Structural vibration sampling up to 200 Hz.
- Always operational: Operates day and night and in all weather conditions.
IDS
IDS is a world leading provider of high-tech solutions, geo-radar and locating equipment in selected niche defence and civil market sectors. IDS Ingegneria Dei Sistemi is headquartered in Pisa, Italy with offices in six countries around 500 employees worldwide with experience and expertise in the most sophisticated technologies. IDS's roots date back to 1980; over the past 30 years the company has evolved and grown without losing its tradition.
