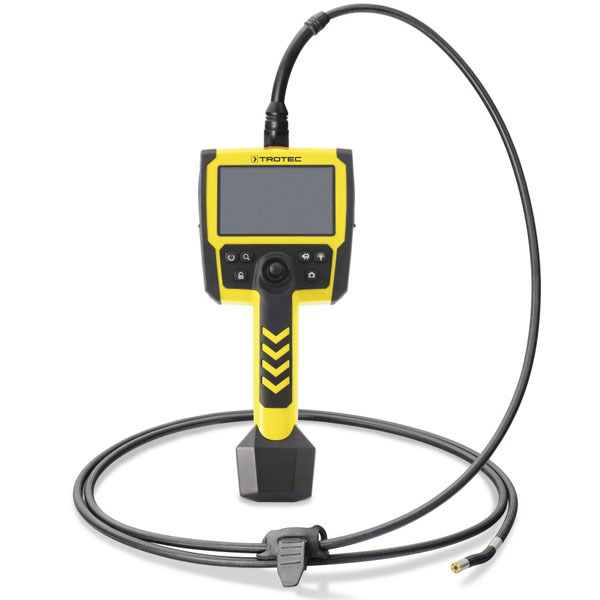

Trotec VSC3008 Articulated Videoscope

High-definition video and imaging videoscope from Trotec with USB and WLAN video synchronisation and articulated camera head adjustment control.

The VSC3008 from Trotec is an industrial grade professional borescope featuring a high 440,000 pixel resolution CMOS imaging sensor, providing clear precision imaging for both captured photos and recorded videos.
These are easily depicted on the clear 4.3" TFT LCD.

Need to control the viewing angle and direction of the camera?

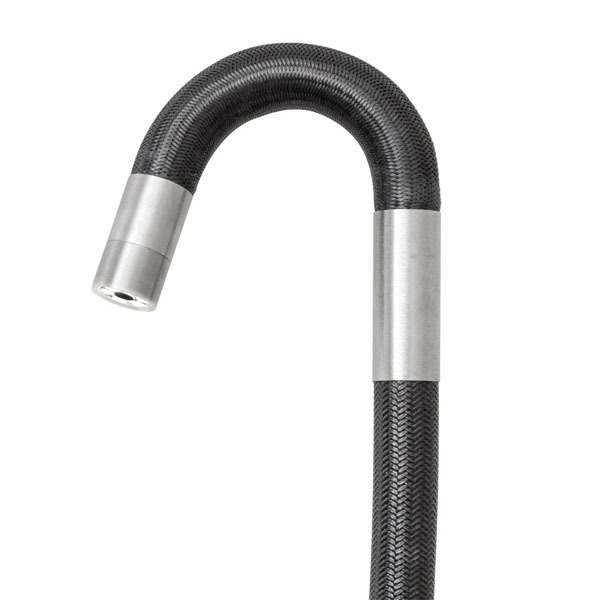

With its multi-ply construction of stainless steel wire mesh and PU on a flexible steel spiral, the compact ø 8 mm camera head features 4-way articulated ensuring maximum range of motion with simultaneously high torsional strength of the push probe, with a wide 120° field of view angle.

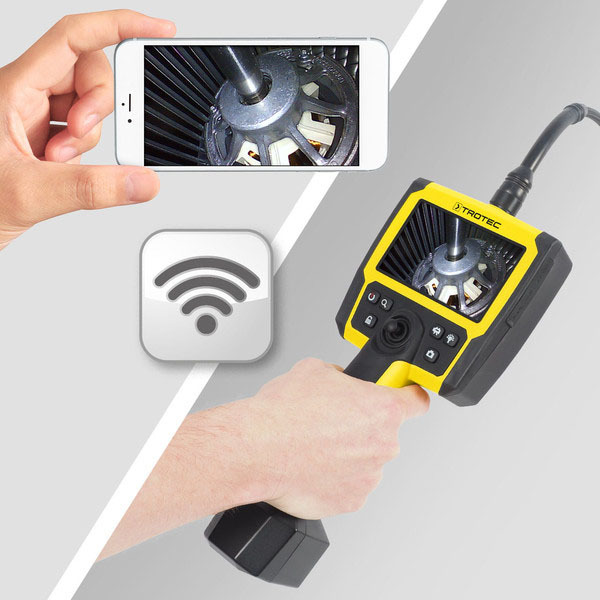

A unique feature of the VSC3008 is the WLAN real-time wireless connectivity, allowing for viewing of photos and videos to supported mobile devices.

For low light or dark cavities, the VSC30086 features 10 bright LEDs for illumination of 50,000 Lux, enabling the bright lighting in even the darkest confined cavities.

File capture is saved onto the removable SD card with a fast USB connection and analogue video output.

The Trotec VSC3008 is covered by a 1 Year manufacturers warranty.

Specifications

  • Display: 4.3 inch colour LCD (800 x 480 pixels)
  • Camera Probe: ø 8 mm, length 3m
  • Resolution: CMOS sensor, 440,000 pixels
  • Camera Light: 10x LED, 50,000 Lux with brightness control
  • Camera Head Control: Yes, articulated up/down/left/right ≈ 120°
  • Camera IP Protection: IP67
  • Focus: Fixed, 50 to 200 mm optimal focal depth
  • Frame Rate: 50/60Hz, up to 30 FPS
  • Field Of View: 130°
  • Zoom: Yes, digital 3x
  • Photo Format: JPEG
  • Video Format: AVI
  • Interface: USB, analogue video (HDTV)
  • Storage: 8GB removable SD
  • Weight: 960 grams
  • Battery Type: 3.7V Li-Ion
  • Warranty: 1 Year Warranty

Packages

Product Details Price
Trotec VSC3008 Articulated Videoscope

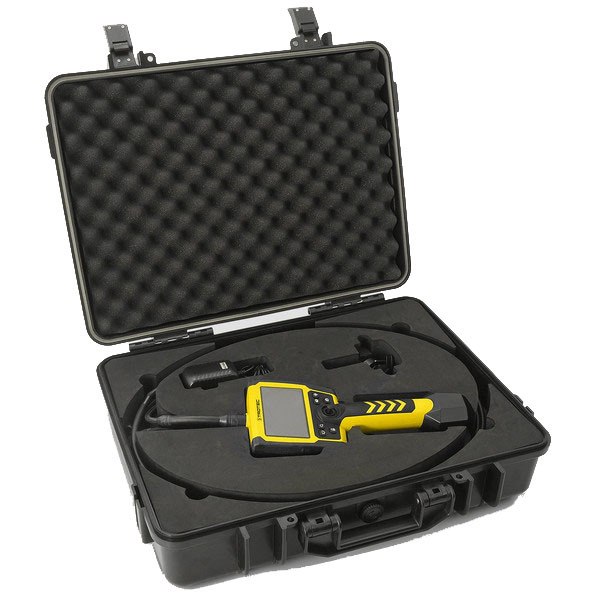

VSC3008, ø 8 mm x 3m camera probe, 8GB SD card, 5V Li-Po battery with charger, video cable, user manual, hard case.

CALL 0800 500 380 FOR LATEST PRICING
