Trotec VSC206 Articulated Videoscope

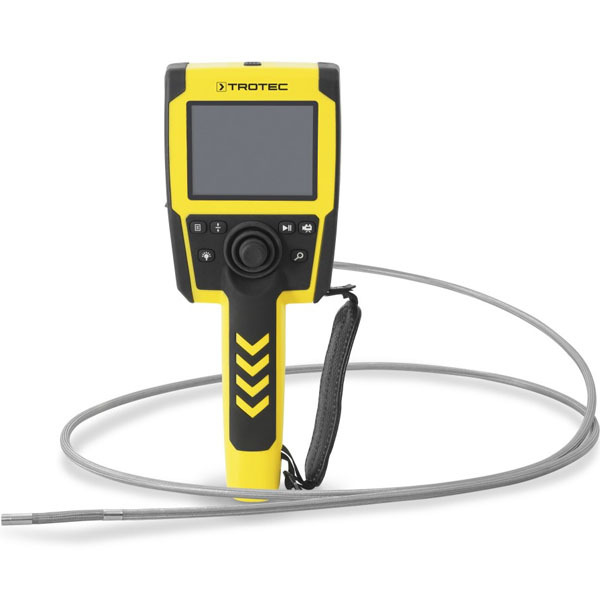

The VSC206 is a professional automated borescope featuring high-definition video and image capture and articulated camera adjustment for viewing angle.

Unlike low cost videoscopes, the VSC206 from Trotec features a high 350,000 pixel resolution CMOS imaging sensor, providing clear precision imaging for both captured photos and recorded videos.

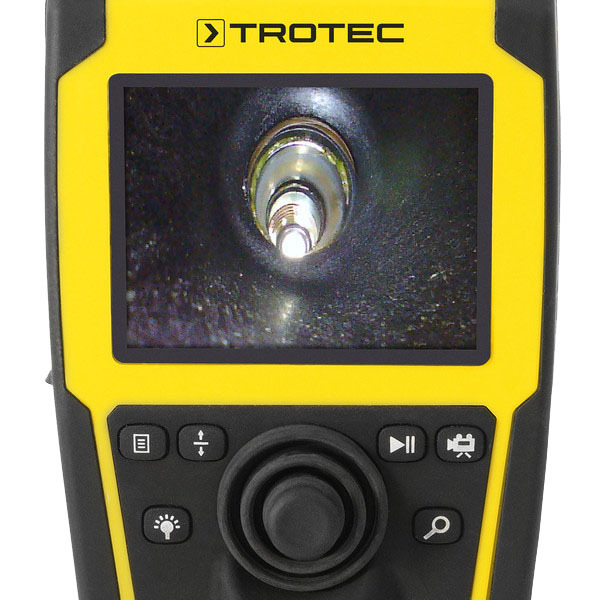

These are easily depicted on the clear 3.5" TFT LCD.

Need to control the viewing angle and direction of the camera?

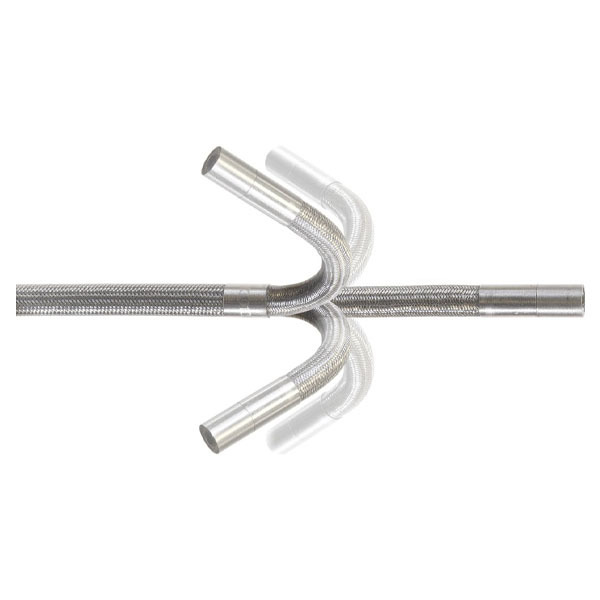

With its multi-ply construction of stainless steel wire mesh and PU on a flexible steel spiral, the compact ø 6 mm camera head features 4-way articulated ensuring maximum range of motion with simultaneously high torsional strength of the push probe, with a wide 90° field of view angle.

For low light or dark cavities, the VSC206 features 6 bright LEDs for illumination of 40,000 Lux, enabling the bright lighting in even the darkest confined cavities.

File capture is saved onto the removable SD card with a fast USB connection and analogue video output.

The Trotec VSC206 is covered by a 1 Year manufacturers warranty.

Specifications

  • Display: 3.5 inch colour LCD (640 x 480 pixels)
  • Camera Probe: ø 6 mm, length 2m
  • Resolution: CMOS sensor, 350,000 pixels
  • Camera Light: 6x LED, 40,000 Lux with brightness control
  • Camera Head Control: Yes, articulated up/down/left/right ≈ 120°
  • Camera IP Protection: IP67
  • Focus: Fixed, 50 to 200 mm optimal focal depth
  • Field Of View: 90°
  • Zoom: Yes, digital 5x
  • Photo Format: JPEG
  • Video Format: AVI
  • Video Output: PAL, NTSC
  • Interface: USB, analogue video (HDTV)
  • Storage: 8GB removable SD
  • Weight: 590 grams
  • Battery Type: 4x NiMH
  • Warranty: 1 Year Warranty

Packages

Product Details Price
Trotec VSC206 Articulated Videoscope

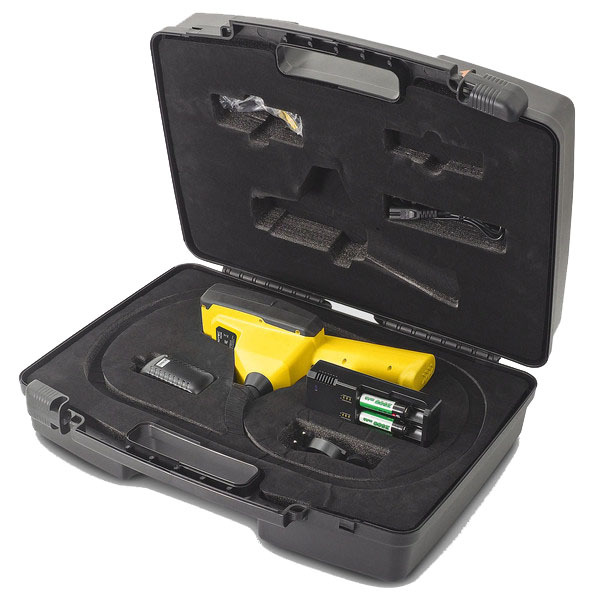

VSC206, ø 6 mm x 2m camera probe, 8GB SD card, 4x AA NiMH rechargeable batteries with charger, video cable, user manual, hard case.

CALL 0800 500 380 FOR LATEST PRICING
