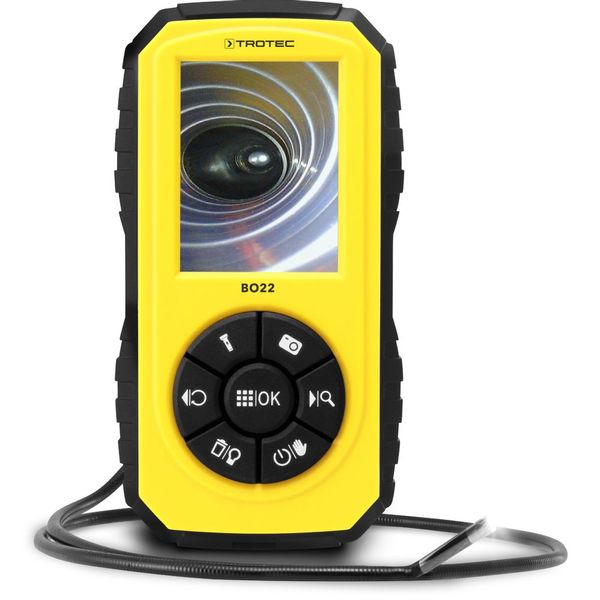

Trotec BO22 Videoscope

The compact solution for visually inspecting poorly accessible areas with the option to take photos or videos for documentation purposes.

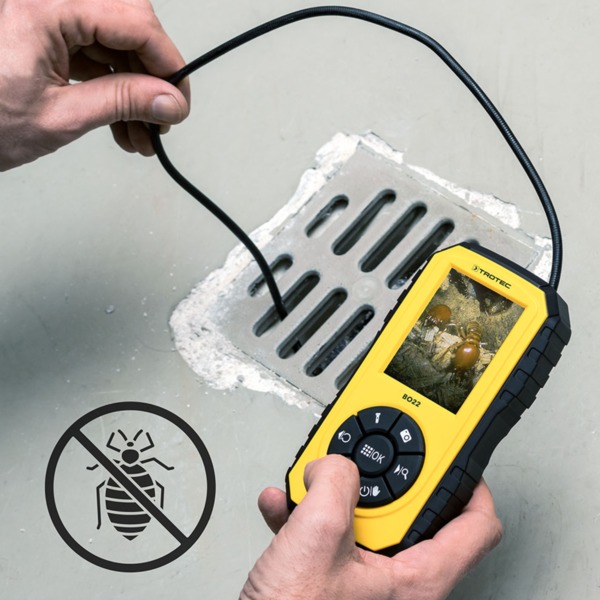

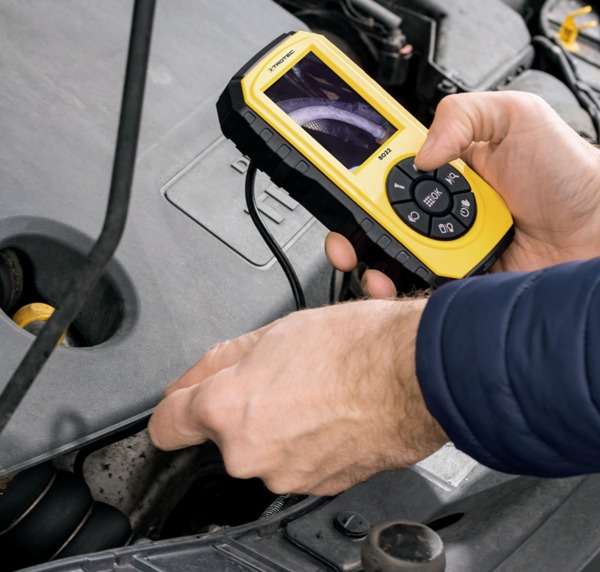

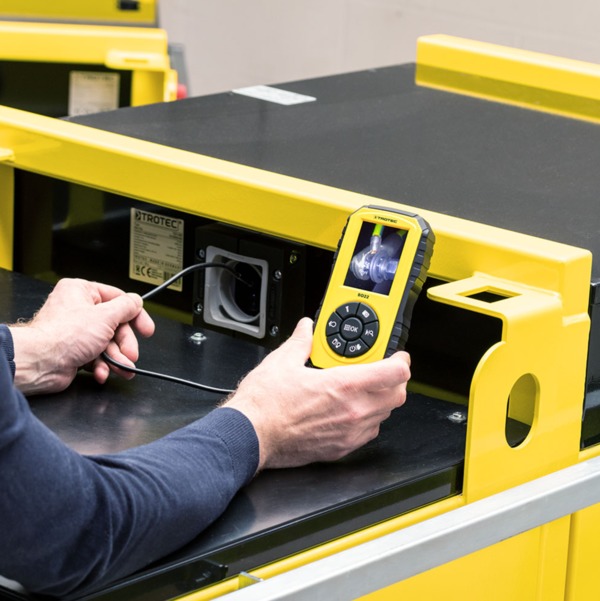

Ideally suited for facility managers, technicians or private users. If a quick and reliable endoscopic visual inspection is required, the BO22 is the perfect aid. Whether you like to inspect covered machine parts indirectly or to gain insights into hollows that can only be accessed through small openings: Thanks to the small and semi-rigid gooseneck probe with mini camera and a diameter of only 5.5. mm, the device is ideally suited for occasional car inspections or a revealing glimpse into poorly visible narrow spaces such as gaps, drains, pipes or cable ducts. The bendable, semi-rigid gooseneck probe of 95 cm length can be inserted into small openings. The light provided by 6 LEDs is dimmable in four stages and perfectly illuminates the surroundings, providing high-quality inspection images – even in water. The LC colour display provides razor-sharp photos and videos with a resolution of 1280 x 720 pixels. A 3x zoom enlarges the view. The useful image rotation function allows to turn the image by 180° and facilitates the view on the display as the image can appear the other way round, depending on the position of the probe.

Specifications

  • Display: 3.0 inch colour LCD (640 x 4804 pixels)
  • Camera Probe: ø5.5mm, length 95cm
  • Camera Light: 6x LED lights with 4 step brightness control
  • Camera IP Protection: IP67
  • Frame Rate: 30Hz
  • Image Rotation: Yes, 180°
  • Warranty: 1 Year Warranty

Packages

Product Details Price
Trotec BO22 Videoscope

BO22, 1x 95cm camera probe, mirror, magnetic and hook attachments, 4x AA alkaline batteries, get started guide.

  • VIDEOSCOPE-TROTEC-BO22
    $489.00 + GST
