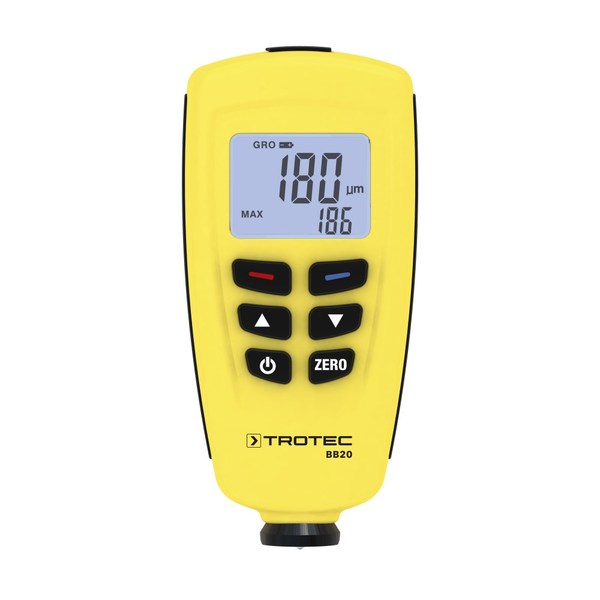

Trotec BB20 Basic Paint Thickness Gauge

The Trotec BB20 is a basic elcometer for determining paint or coating thickness over metal materials.

The Trotec BB20 is a simple coating thickness assessment meter.

The BB20 features an innovative dual sensor which enables the user to measure the thickness of non-magnetic coatings like paint and varnishes, synthetic coatings, zinc coatings, enamel or chrome as well as galvanized steel or iron and non-iron metals like aluminium, magnesium, titanium etc.

The measuring head is spring-mounted and has a practical V groove. This makes it easier to carry out measurements on rounded and curved objects like axes or hinges and prevents vibrations from distorting or affecting the measuring results.

The measuring device is extremely compact and can be used with one hand only.

The BB20 has a measuring range from 0 to 1,250 µ, with accuracy typically 3% of the measured value. A user settable alarm function alerts the user when predefined thickness thresholds have been exceeded.

An internal memory stack can hold up to 400 values. These can be downloaded using the basic supplied software program and USB cable.

Specifications

  • Measurement Method: Magnetic Induction (FE metals), Eddy Current (Non FE metals)
  • Thickness Range: 0 to 1250 µ (1.25mm)
  • Accuracy: Typically 3% of measured value
  • Display: LCD
  • Resolution of reading: 0.1 µ
  • Memory Storage: Yes, up to 400 values
  • Weight: 114 grams
  • Battery Type: 2x AAA batteries
  • Warranty: 1 Year
  • Packages

    Product Details Price
    Trotec BB20 Basic Paint Thickness Gauge

    BB20, 2x AAA batteries, operating guide, FE and non FE test calibration blocks, various size pack of film thickness test sheets, USB cable, software and hard case

    • THICKNESS-TROTEC-BB20
      $369.00 + GST
