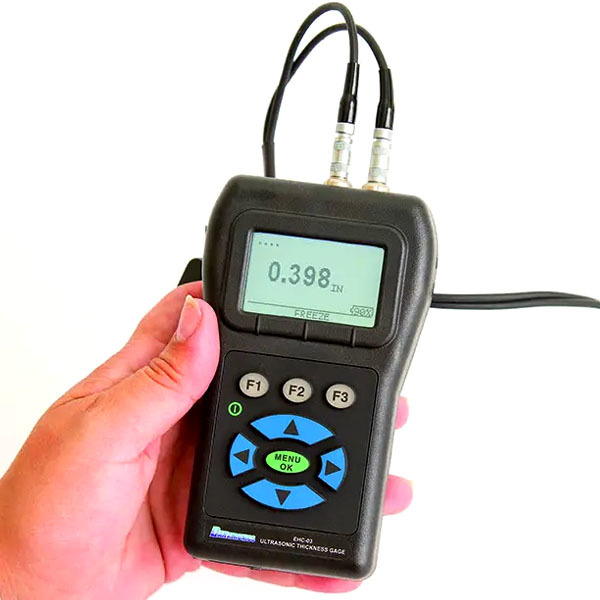

Danatronics EHC-03 Corrosion Thickness Gauge
The EHC-03 is a quality, ultrasonic thickness gauge designed to accurately and non-destructively measure metal structures subject to corrosion.
Made in the USA, the EHC-03 represents a quality, ultrasonic thickness gage designed to provide years of unprecedented measurements all at an entry level price.
With the new Q-bar, even the most inexperienced operators can quickly determine if a thickness reading is stable. The EHC-03 offers a wide measurement range of 0.51 - 18.6 mm/uS, two point calibration and even multiple on-screen languages, all in a robust and durable IP54 rated housing.
Transduces
The EHC-03 was designed to work in conjunction with the DKS-537 transducer.
The DKS-537 is a 5mhz, K85 transducer with a 10mm diameter. It’s range in steel is 1mm-508mm.
It is suitable for typical application assessments of boiler tubes, storage and oil tanks, pipes, pressure vessels compressor shafts plus much more.
Specifications
- Thickness range: 1 mm to 508 mm in steel
- Bandwidth (selectable): 0.5-20 MHz (-3dB)
- Material Velocity Calibration Range: 0.51 - 18.6 mm/uS
- Operating temperature range: -20 °C to 50 °C
- Display: 128 X 64 Graphics LCD monochrome with auto-on backlight
- Q-Bar: Graphic display, confirming measurement stability
- Weight: 230 g (8 oz)
- Power Supply: 2 AA alkaline batteries
- Battery life: up to 50 hours
DANATRONICS
Danatronics™ Corporation is a high technology company specializing in the field of Non-Destructive Testing (NDT). Danatronics™ combines the experience of more than 75 years of NDT know-how in the areas of Ultrasonic transducers, thickness gauges and flaw detectors as well as offerings in video inspection equipment. Key personnel have invented, developed, marketed and sold Ultrasonic NDT electronics on a global basis for the last four decades.
