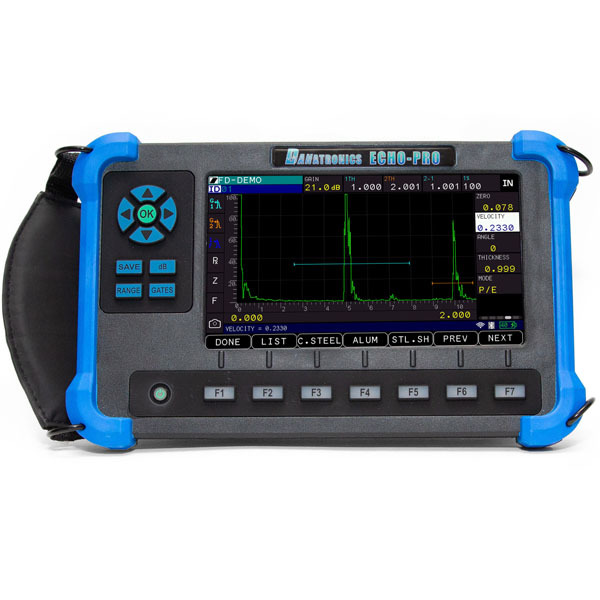

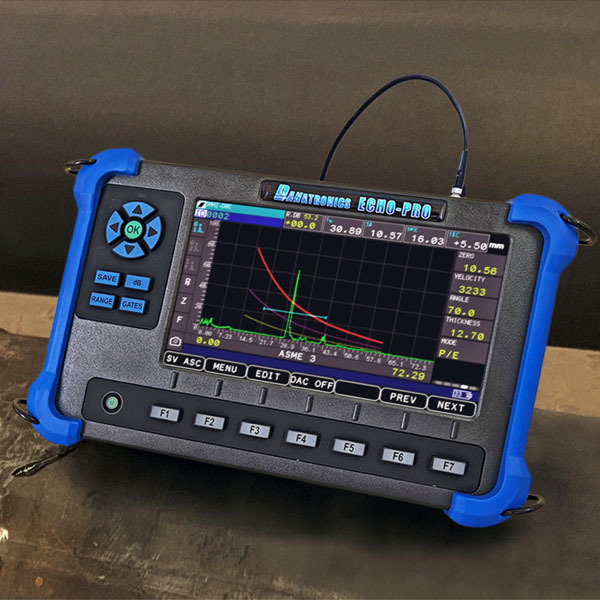

Danatronics ECHO PRO Flaw Detector
The ECHO PRO is a digital ultrasonic flaw detector with real-time visualisation which distinguishes between actual flaws and geometry related signals, reducing errors and improving decision-making.
Danatronics ECHO PRO represents the latest generation of portable ultrasonic flaw detection, built on over 70 years of digital ultrasonic expertise. Designed for speed, accuracy, and ease of use, the ECHO Pro combines advanced performance with simple, intuitive controls for reliable inspections in the field or on the shop floor.

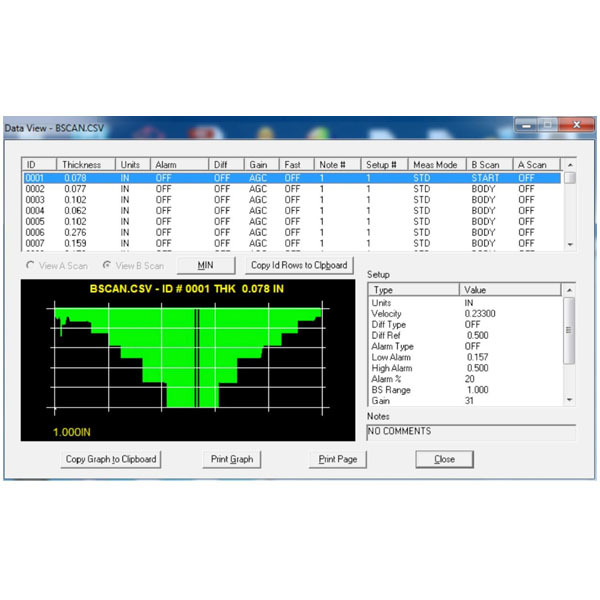

The ECHO PRO model comes fully equipped including a built-in datalogger with seamless Excel® export, 2 gates, AWS, API 5UE, DAC, a high-output 600 Volt pulser, and up to 14 hours of continuous battery life.
Advanced capabilities such as damping, digital filters, analog and alarm outputs, Wi-Fi, and Bluetooth® are included, with optional enhancements such as interface gates, floating and tracking gates, extended range, and back echo attenuation available to meet specialised needs.

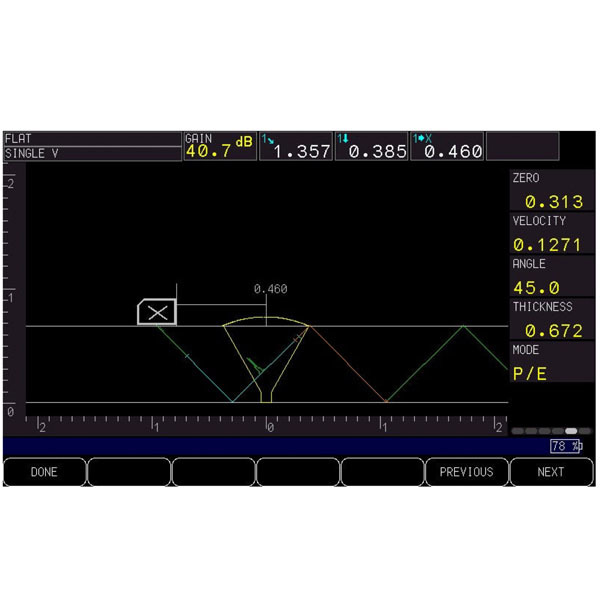

New to the ECHO PRO is FlawView, a real-time visualisation feature that helps distinguish between actual flaws and geometry related signals, reducing errors and improving decision-making.
Specifications
- Flaw Sizing: DAC, TVG, DGS
- DAC Points: Up to 50 points, 110 dB dynamic range
- DAC Modes: Custom DAC (up to 6 curves), 20-80% view
- Transducer Type: Dual Lemo 00
- Pulser: Tunable Square Wave (1-25 MHz) or spike with pulse repetition frequency(PRF): 10- 2000 Hz in 10 Hz increments
- Auto Calibration: Velocity, Zero Offset, Straight Beam (First Backwall or Echo-to-Echo), Angle Beam (Soundpath or Depth)
- Gain Setting: Low, Standard and High for gauges without waveform. 20-94 db in 1 db increments
- Memory: Internal memory 100,000 IDs onboard, removable 2GB micro SD card, expandable up to 32GB
- Inputs/Outputs: USB-C, RS-232 Port, analogue and trigger I/O. Optional video output (wide VGA)
- Operating temperature range: -20 °C to 50 °C
- Display: .7” high resolution hybrid color touchscreen, VGA 800 x 480 pixels with LED backlight
- Weight: 1.63 kg (3.6 lbs)
- Power Supply: 7.2V, 13.6aHr Li Ion internal battery
- Battery life: 10 -14 hours
