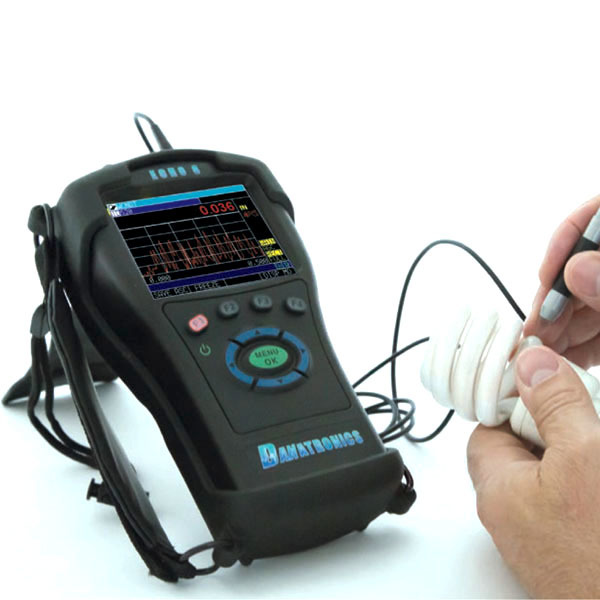

Danatronics ECHO 7 Precision Thickness Gauge
ECHO 7 represents Danatronics™ most advanced precision thickness gauge ever, using of a wide variety of contact, delay line and immersion probes.
Danatronics™ offers our newest ultrasonic precision thickness gauge, the ECHO 7.
ECHO 7 represents Danatronics™ most advanced thickness gauge ever, capable of measuring paint over plastic or steel as thin as 0.001". The onboard field software is upgradeable to include live waveform, dataloggeing or both. The 3.5” high resolution color display is readable even in bright sunlight conditions. The ECHO 7 uses a wide variety of single element contact, delay line and immersion probes and transducers, from 1-20 Mhz as default and custom created and stored applications setups. The datalogger storage has the capacity up to 32GB of micro SD card memory and an interface to Microsoft excel. The ECHO 7 is available in 4 models including the ECHO 7, ECHO 7DL, ECHO 7W and ECHO 7DLW. The vibrate on alarm feature is the world’s first and is great for loud environments. ECHO 7 is a direct replacement to the CL5 precision gage that includes setups for CA-215, KBA125, Mini DFR, Alpha-2 F CLF5, Alpha-2 DFT CLF4, CA211A and K-pen.
Specifications
- Thickness range: Dependent on gauge type, probe selection and material conditions. For corrosion in metal, 0.5 mm to 584 mm in steel
- Transducer Type: Lemo 00 x2
- Bandwidth (selectable): 0.5-30 MHz (-3dB)
- Material Velocity Range: 0.51 - 18.6 mm/uS
- Measurement Rate: 4 Hz or 25 Hz
- Pulser: 150V, square wave
- Calibration: Cal zero, Cal velocity, Two-point calibration or Auto Calibration using 5-step test block
- Gain Setting: Low, Standard and High for gages without waveform. 20-94 db in 1 db increments
- Memory: Internal memory, 2GB micro SD card, expandable up to 32GB (9DL and 9DLW models)
- Connectivity: USB 2.0, DataXL interface to send/receive stored readings
- Operating temperature range: -20 °C to 50 °C
- Display: 3.5” high resolution color display, 320 x 240 pixels with LED backlight
- Weight: 520 g (1.15 lbs)
- Power Supply: 3.7 V Li Ion internal battery
- Battery life: up to 27 hours (11 hours in continuous echo-echo mode)
