Class Instrumentation DOOR-SAFE Ultrasonic Water Tight Tester

An easy use ultrasonic unit for determining the water integrity of doors, hatches and windows.

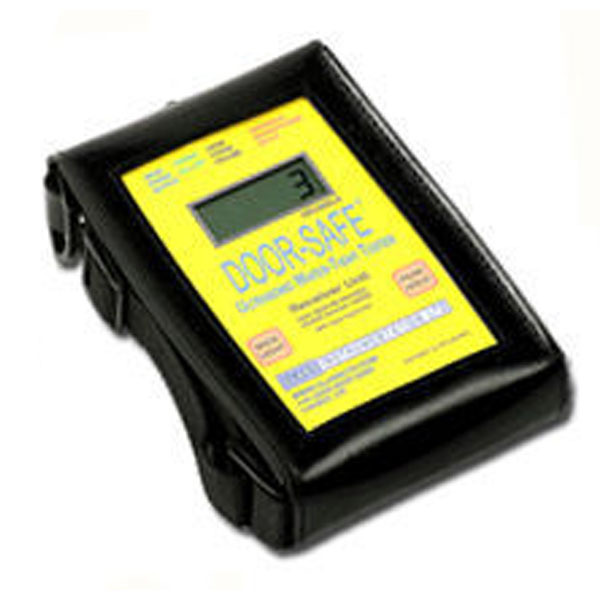

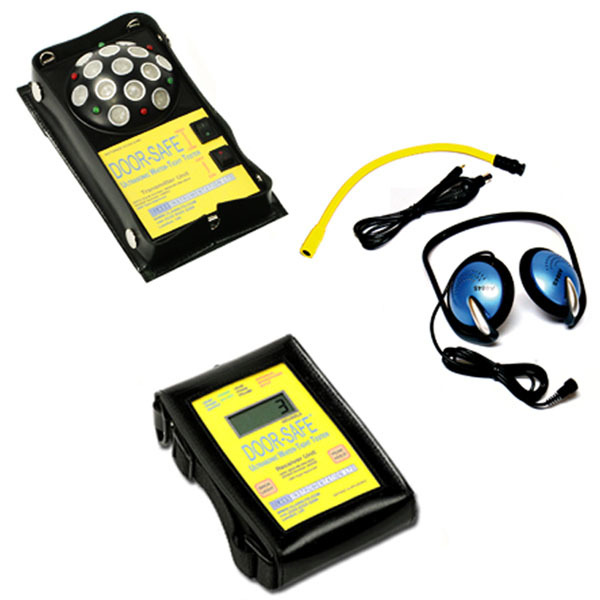

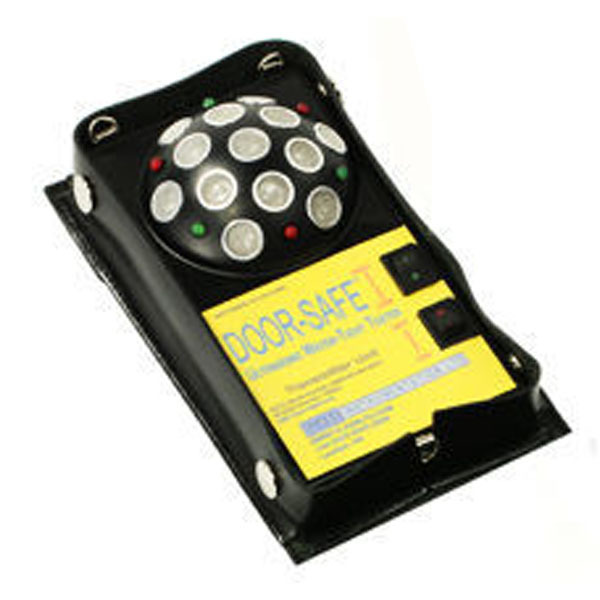

The Door-Safe™ WT tester kit consists of 2 units, an ultrasonic transmitter unit and a portable, hand-held receiver unit connected to a flexible inspection microphone and hard-hat compatible headphones. The transmitter and receiver are each supplied in protective leather cases fitted with neck straps to allow for hands-free use. The complete Door-Safe™ kit is contained in a blue plastic foam-lined carry case for easy transportation and storage.

If ultrasound can pass through the door or hatch seals, then it is also true that water may be able to pass through. The Door-Safe™ transmitter generates ultrasound on one side of the door or hatch and the receiver unit on the other side of the door tries to detect any ultrasound. If none can be detected the door is water-tight. Any ultrasound that has leaked through is shown on the receiver unit in decibels on the digital LCD display and also converted to an audible sound, which can be heard through the headphones. The size of the problem can also be established from the strength of the signal displayed in the universal requirement of decibels.

Key Features

    The Class Instrumentation Ltd Door-Safe™can be used to determine the integrity and water-tightness of

    • water-tight doors in the offshore, marine and aero-space industries
    • water-tight hatches
    • windows
    • Navy supply doors
    • shipping containers
    • cars
    • yachts
    • caravans

CLASS INSTRUMENTATION

Class Instrumentation Ltd is a British company specialising in UT ultrasonic water integrity testers, liquid level indicators and non-destructive test equipment. The Class instruments are used to revolutionise the shipping, fire safety and manufacturing sectors - allowing accurate risk assessment and maintenance of equipment at low cost. These specialised products are built to protect lives and care for the environment.
