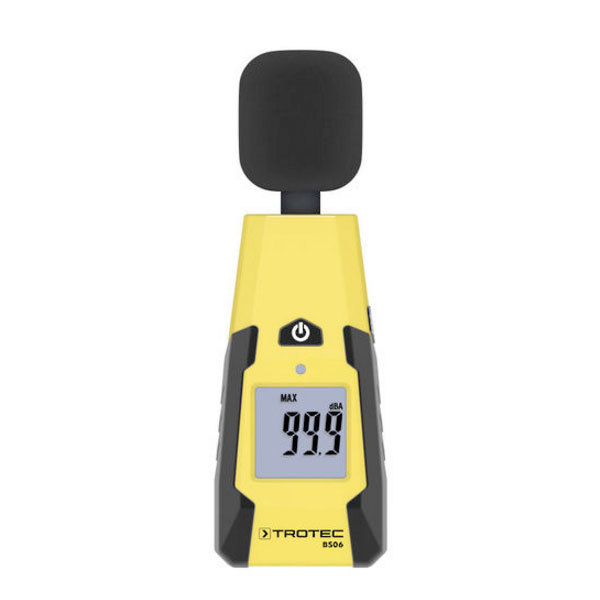

Trotec BS06 Sound Level Meter

The BS06 is a very simple low cost basic sound level meter for DIY around the home use.

It is designed for the consumer for basic assessment of noise levels in the home. It is suitable for measuring maximum noise levels in decibels (dBA) "very close" to the source of the noise, typically within 1 meter of the source.

For construction, commercial and industrial sound levels, see the Model 14 from Pulsar or Trotec SL300, SL400 and Fluke 945 units.

If you require compliant sound level values to meet NZ/AUS standards such as Leq, L10 or L90, view the Integrated and Data Logging Sound Level Meters such as the Pulsar Nova.

With a measuring range of 40 - 130 dB, a backlit easy to read LCD display and maximum, minimum, hold measuring modes, the BS06 is the ideal tool for basic simple sound levels.

Tripod mountable.

Specifications

  • Measurement Range: 40 - 130 dB
  • Measurement Frequency: Broadband, 31.5Hz - 8kHz
  • Frequency Types (Weighting): A
  • Time Response (Weighting): Fast - 125ms
  • Measurement Modes: LA, LAMAX, LAMIN
  • Measurement Accuracy: typically +/- 3.5 dB
  • Microphone Type: Fixed 1/2" microphone
  • Resolution: 0.1 dB
  • Tripod Mount: No
  • Display: LCD
  • Weight: 135 grams
  • Battery Type: 1x 9V
  • International Standards: n/a
  • Warranty: 1 Year

Packages

Product Details Price
Trotec BS06 Sound Level Meter

BS06 SPL meter, alkaline batteries and soft case.

  • SOUND-TROTEC-BS06
    $78.00 + GST
