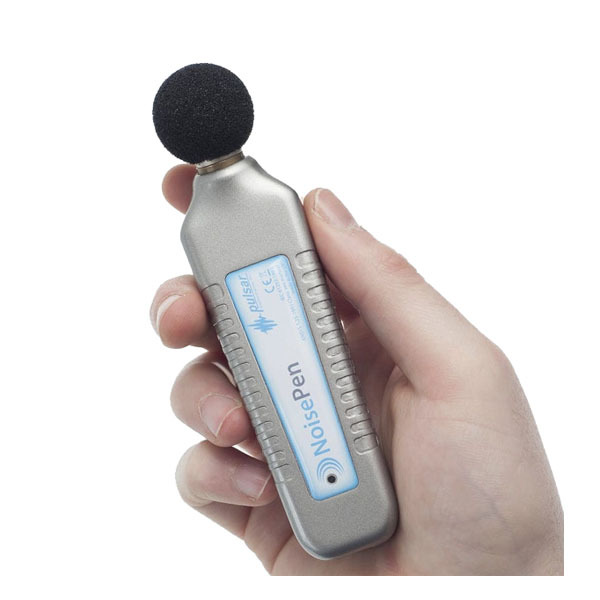

Pulsar NoisePen Personal Dosimeter
Compact and economical, the Pulsar NoisePen is a personal noise dosemeter used for noise exposure monitoring, providing measured values to adhere to NZ/AS occupational noise regulations.
Great value, compact personal noise dosemeter for compliance with occupational noise regulations.
So simple to use, capture, record and calculate noise data with this latest innovation for over 30 hours worth of workers exposure.
Some WorkSafe NZ's key mandates is to monitor exposure noise.
This key occupational safety measurement is more crucial than simple static noisemeasurement in the workplace, that doesn't effectively or accurately capture a worker's exposure to noise.
Pulsar has a proven track record of manufacturing compliant, reliable and easy to use noise measurement equipment. The latest addition to the Pulsar range of personal noise dosemeters is a self-contained measurement tool ideally suited for workers ‘on the go’. The NoisePen does not require a charger or reader unit – all interactions are done via USB to a PC and the analysis software Pulsar AnalyzerPlus.
All programming and key functions such as start-stop, set up and configuration of the device, download, view and store measurements are performed prior to or on completion of field measurements via the software Pulsar AnalyzerPlus. The calibration of the NoisePen (Model 106 calibrator required) is undertaken prior to taking a measurement and mounting the device onto a person with its acoustic calibrator and verified and logged via the software.
The same process is carried out on return of the unit to base.
Get all the parameters you need for compliance with NZ noise standards.
Using the AnalyzerPlus software, it is possible to schedule a timed measurement at a date and time of your choice. Conveniently, you can also repeat a selected pattern over a period of 7 days without having to reset the NoisePen.
Pulsar AnalyzerPlus software will provide a full map of ‘Time History’ information to help you determine when key noise problems occur during a worker's day. All the data essential to meet compliance with occupational noise regulations is also available to view from the reporting facility such as: LAeq, LEP,d, % Dose and TWA. The additional ‘C’ weighted peak Time History allows you to fully assess risks from impulsive noise in the workplace.

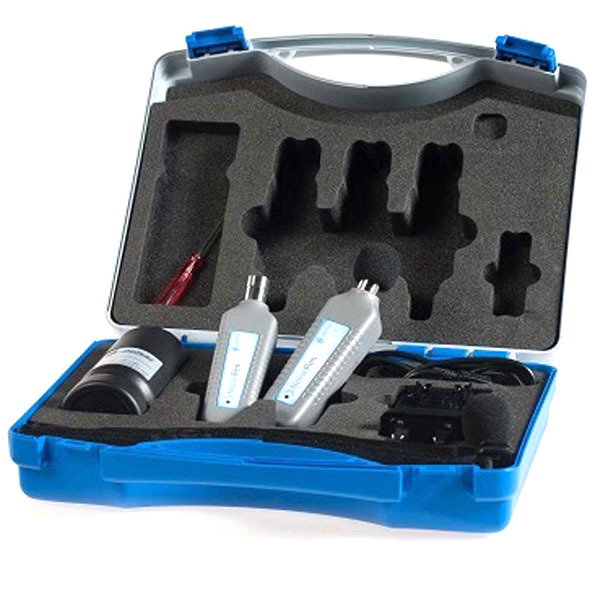

The optional K6 hard case can hold up to 2 NoisePens and 1 acoustic calibrator.

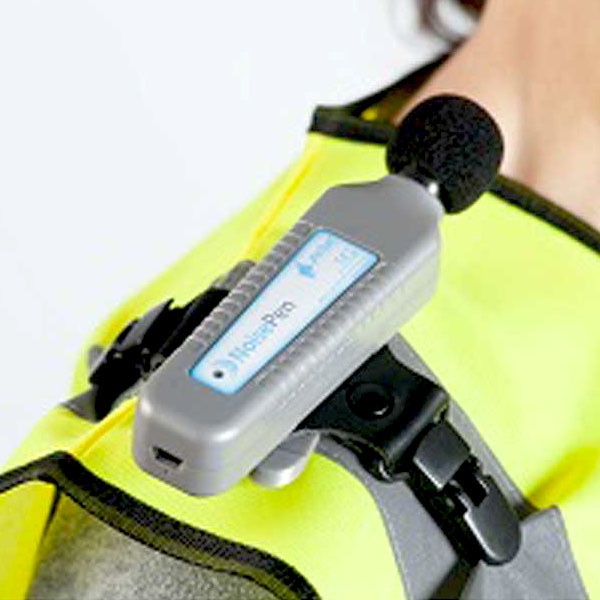

Mounting options available to purchase with the NoisePen:
- NP1 Pocket Clip supplied as standard
- NP2 Leather Strap Option
- NP3 Velcro Strap Option 50cm long
- NP4 Vertical Strap Option
Specifications
- Measurement Range: 70-140dB(A), 90dB(C) to 143dB(C) Peak
- Measurement Modes: Graph of Short LAeq, LCPeak or LZPeak
- Microphone Type: Removable 1/2" pre-polarised electret condensor microphone Class 2
- Weight: 82 grams
- Interface: USB transfer using Analyzer Plus software (Windows)
- International Standards: IEC 61252:1993, ANSI S1.25:1991, IEC 61000-6-1:2007(EMC), IEC 61000-6-3:2007(EMC)
- Warranty: 12 months extendable to 7 years (7 years if returned annually to Pulsar Instruments PLC for re-certification)
Packages
| Product | Details | Price |
|---|---|---|
| Pulsar NoisePen Personal Dosimeter | Model 26 NoisePen, USB cable, calibration test certificate, USB drive |
|
| Pulsar 106 Acoustic Calibrator | Model 106 calibrator 94dB for field use with the Pulsar NoisePen |
|
| Pulsar NP2 NoisePen Leather Mount | Leather mount that attaches to the Pulsar NoisePen so it can be worn on the lapel or collar to attain the most accurate noise exposure results |
|
| Pulsar K6 NoisePen Transport Case | K6 Hard transport case for the Pulsar NoisePen. Holds upto 2 NoisePens, 1 calibrator and accessories |
|
| Pulsar 108 Acoustic Calibrator | Model 108 calibrator 114dB for field use with the Pulsar NoisePen |
SPECIAL ORDER ONLY. CALL 0800 500 380 FOR LATEST PRICING & AVAILABILITY
|
