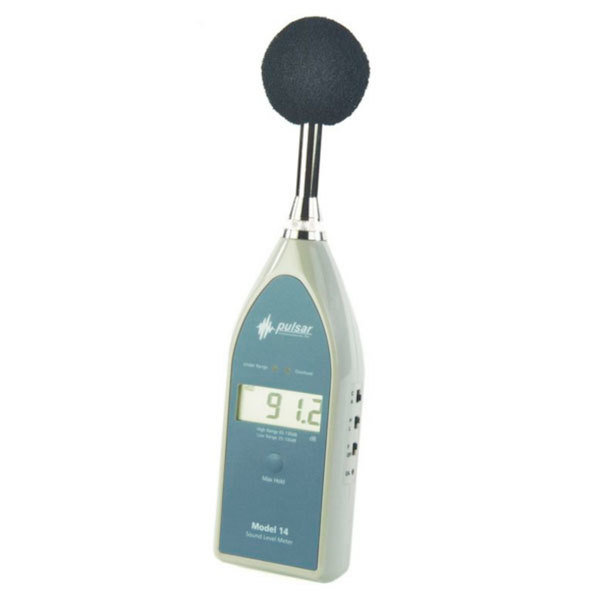

Pulsar Model 14 Class 2 Sound Level Meter

Our top selling sound measuring device, the Model 14 is a professional Class 2 Sound Level Meter from Pulsar Instruments plc designed for compliant simple environmental and occupational noise measurement.

The Pulsar Model 14 sound level meter is used for attaining a general sound level (decibels) in your location.

Class 2 (or Type 2) is a common type of sound level meter that conforms to the requirements and accuracy of the international IEC 61672-1 standard for SPL (sound pressure level) meters. Calibrated by Pulsar and tested prior to sale, the Model 14 meets the demands of the trade user and is ideal for users wanting to measure sound levels in a commercial, industrial or residential location, in a factory, school, public facility or on a construction site.

The Model 14 has an easy to read LCD display, which shows the sound level (SPL) in decibels (dBA). The operator can select either the standard A-frequency-weighting or the alternative C-frequency-weighting. The maximum hold function allows the unit to freeze the display showing the highest level measured. This feature is very useful for determining the approximate maximum level of sound output from the source.

If you require compliant sound level values to meet NZ/AUS standards such as Leq, L10 or L90, please view the Pulsar Nova, Quantifier and Assessor integrated sound level meters.

The Model 14 is issued with a test operation certificate from Pulsar in England.


The Model 14 is also available as a measurement kit including the model 106 Class 2 Acoustic Calibrator.

Specifications

  • Measurement Range: 35 - 130dB
  • Measurement Frequency: Broadband, 31.5Hz - 8kHz
  • Frequency Types (Weighting): A, C
  • Time Response (Weighting): Fast - 125ms
  • Measurement Modes: LA, LAMAX, LC, LCMAX
  • Microphone Type: Fixed 1/2" pre-polarised electret condensor microphone
  • Resolution: 0.1dB
  • Tripod Mount: No
  • Display: LCD
  • Weight: 227 grams
  • Battery Type: 1x 9V
  • International Standards: IEC 61672:2002-1 Class 2, IEC 60651:1979 Type 2 Certificate Issue: Yes - Pulsar Instruments plc in accordance with IEC standards
  • Warranty: 12 months

Packages

Product Details Price
Pulsar Model 14 Class 2 Sound Level Meter

Model14 SPL meter, 9V alkaline battery, factory dated calibration sticker, calibration test certificate - laminated, user manual and soft case.

  • SOUND-PULSAR-MODEL14
    $850.00 + GST

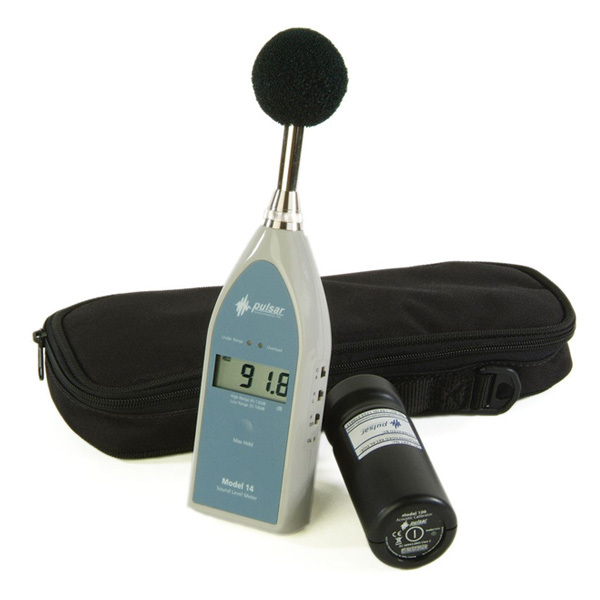

Pulsar Model 14K Class 2 Sound Level Measurement Kit

Model14 SPL meter, Model 106 Class 2 acoustic calibrator, 2x 9V alkaline batteries, factory dated calibration sticker, (SPL & Calibrator) calibration test certificate - laminated (SPL & Calibrator), user manuals and soft case.

  • SOUND-PULSAR-MODEL14K
    $1,550.00 + GST
