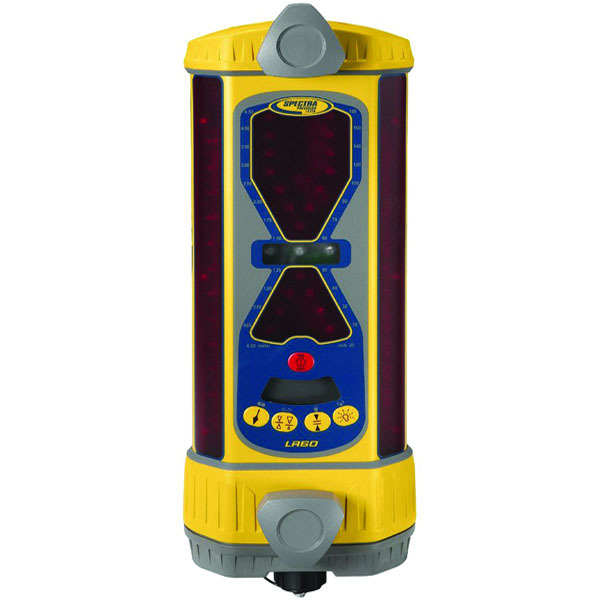

Spectra Precision LR60 Boom Laser Receiver
The LR60 is a 9-channel heavy duty 360º machine mounted laser receiver with tilt compensation up to 30º and a large vetical detection range.
The LR60 is the highest specified laser boom receiver of the LR 360º machine receiver series from Spectra.
It features 9 channels of grade information plus includes the built-in Blade tilt indicator, which helps the operator keep the blade level for increased accuracy and productivity.
The vertical photocell detection range on the LR60 is 220mm, 50mm more than the LR30 and LR50 models.
As is the case with the LR50, the LR60 also has a Built-in plumb indicator that can identify when the book is plumb, to achieve accurate grade checking in excavation applications.
There are 4 selectable accuracies to meet job tolerances from rough grading to final precision finishing.
The LR60 has 2 adjustable clamps that are designed to fit onto a vertical pole or the optional removal MM-1 magnetic pole and detects all types of standard red beam rotating lasers for fast, no-hassle setup. The bright LED's are visible even in direct sunlight.

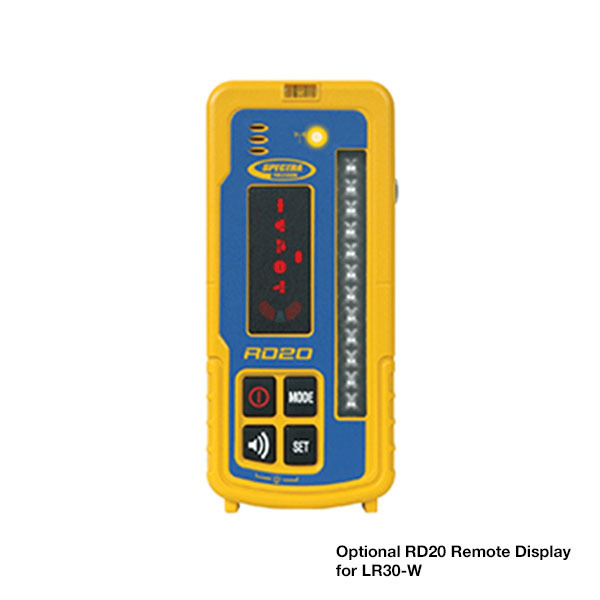

The LR60W wireles model is also available, designed to pair and work with the optional in cab RD20 Remote Display.
Specifications
- Operating Range: Up to 460m radius (dependant on rotating laser model)
- Reception Angle: 360⁰
- Vertical Detection Height: 220mm
- Display: LED lights with above, on grade and below indication
- Accuracy: Setup (5mm) Fine (10mm), Standard (20mm), Wide (40mm)
- Plumb Indicator: Yes, ± 0.5°, ± 1.5°, ± 2.5°
- Blade Level Indicator: Yes, ± 0.5°, ± 1.5°, ± 2.5°
- Automatic Machine Control Compatibility: Yes
- Battery Type: NiMH rechargeable
- Battery Life: Up to 50 hours
- Weight: 2.46kg incl. batteries
Packages
| Product | Details | Price |
|---|---|---|
| Spectra Precision LR60 Boom Laser Receiver | LR60, NiMH rechargeable batteries, battery charger with cannon adapter, operation guide, hard case. |
|
| Spectra Precision LR60W Boom Laser Receiver | LR60W, NiMH rechargeable batteries, battery charger with cannon adapter, operation guide, hard case. |
SPECIAL ORDER ITEM - EMAIL sales@accurate.kiwi TO PRE ORDER
|

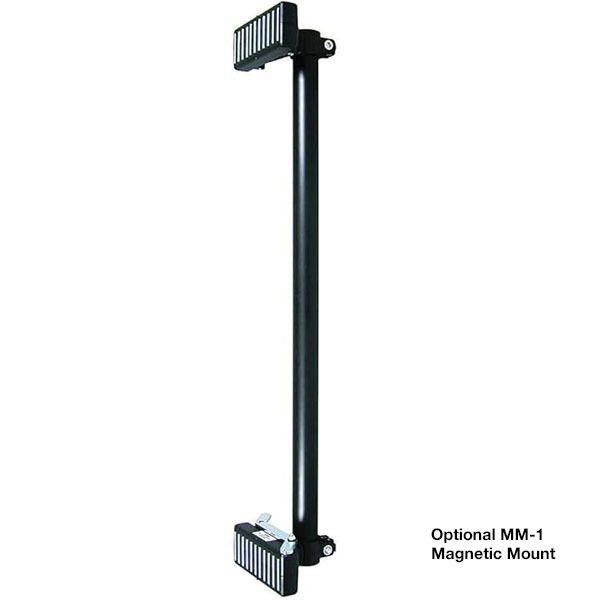

| Spectra Precision MM1 Magnetic Mount | Dual magnets, 85cm length x 40mm pole. |
