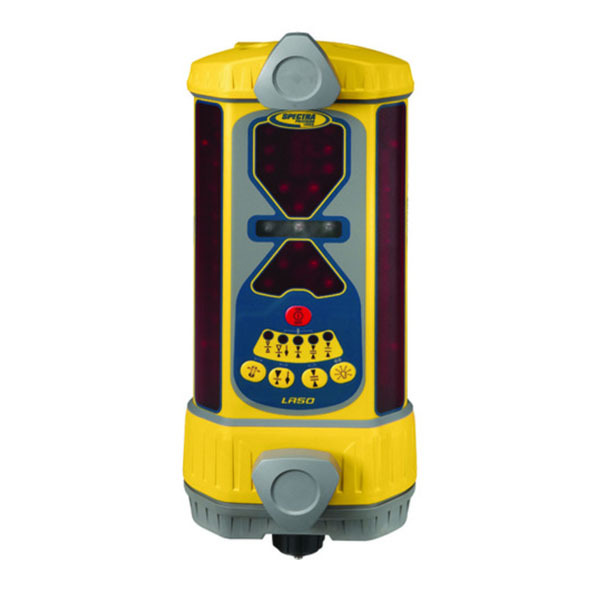

Spectra Precision LR50 Boom Laser Receiver
The LR50 is a 5-channel heavy duty 360º machine mounted laser receiver from Spectra Precision with built-in blade tilt and excavator boom plumb indication.

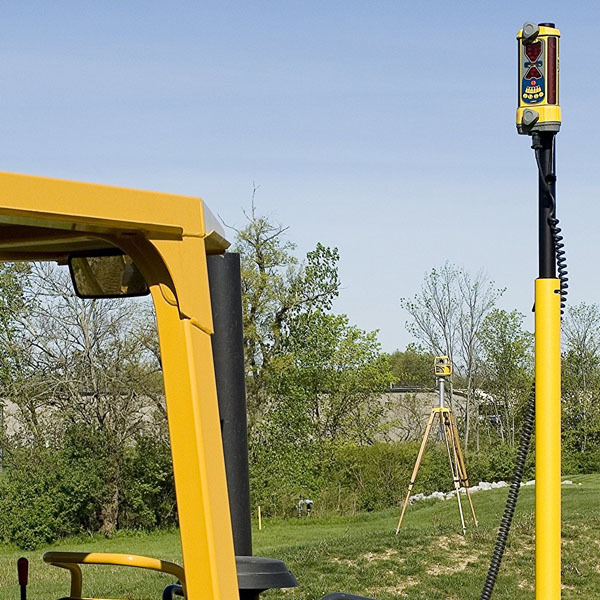

The LR50 is a feature packed 360º machine receiver for earthmoving equipment including: dozers, backhoes, excavators, scrapers, and box blades. It has 5 channels of grade information plus directional and out-of-beam indication.
Compared with the lower cost LR30, the LR50 features built-in Blade tilt indicator, which helps the operator keep the blade level for increased accuracy and productivity.
The LR50 also has a Built-in plumb indicator that can identify when the book is plumb, to achieve accurate grade checking in excavation applications.
There are 3 selectable accuracies to meet job tolerances from rough grading to final precision finishing
The LR50 has 2 adjustable clamps that are designed to fit onto a vertical pole or the optional removal MM-1 magnetic pole and detects all types of standard red beam rotating lasers for fast, no-hassle setup. The bright LED's are visible even in direct sunlight.

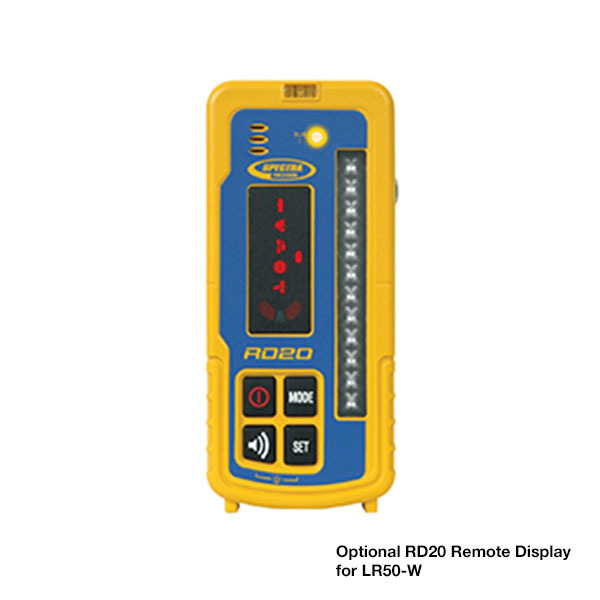

The LR50W wireles model is also available, designed to pair and work with the optional in cab RD20 Remote Display.
Specifications
- Operating Range: Up to 460m radius (dependant on rotating laser model)
- Reception Angle: 360⁰
- Vertical Detection Height: 170mm
- Display: LED lights with above, on grade and below indication
- Accuracy: Fine (5mm), Standard (12mm), Coarse (32mm)
- Plumb Indicator: Yes, ± 0.5°, ± 1.5°, ± 2.5°
- Blade Level Indicator: Yes, ± 0.5°, ± 1.5°, ± 2.5°
- Automatic Machine Control Compatibility: Yes
- Battery Type: 4x C alkaline
- Battery Life: Up to 75 hours
- Weight: 2.46kg incl. batteries
Packages
| Product | Details | Price |
|---|---|---|
| Spectra Precision LR50 Boom Laser Receiver | LR50, 4x C size alkaline batteries, operation guide, hard case. |
|
| Spectra Precision LR50W Boom Laser Receiver | LR50W, RD20 remote display, NiMH rechargeable batteries, battery charger with cannon adapter, operation guide, hard case.
|
SPECIAL ORDER ITEM - EMAIL sales@accurate.kiwi TO PRE ORDER
|

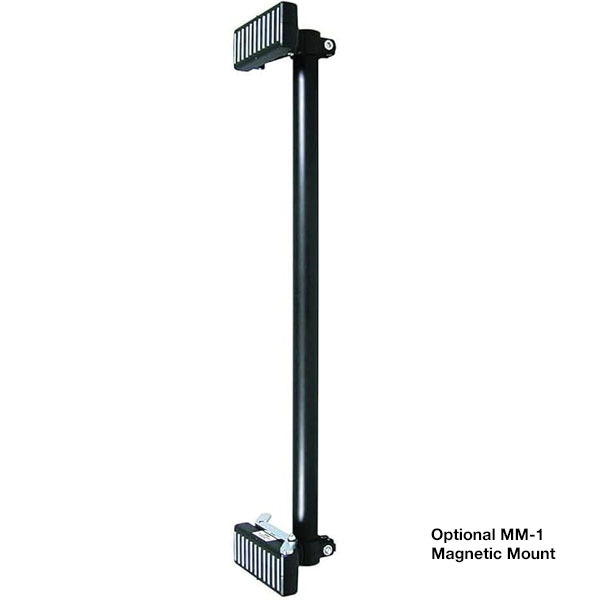

| Spectra Precision MM1 Magnetic Mount | Dual magnets, 85cm length x 40mm pole. |
