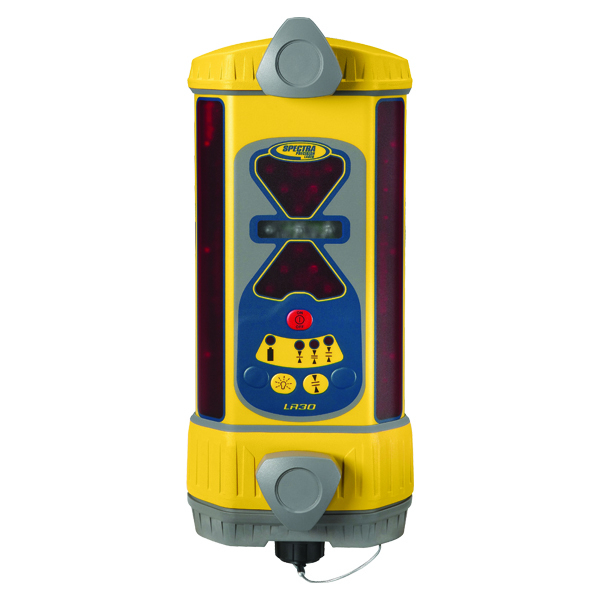

Spectra Precision LR30 Boom Laser Receiver
The LR30 is a 5-channel heavy duty 360º machine mounted laser receiver for excavators, backhoes and bobcats from Spectra Precision.
The LR30 is designed primarily for earthmoving equipment including: dozers, backhoes, excavators, scrapers, and box blades. It has 5 channels of grade information plus directional and out-of-beam indication.
There are 3 selectable accuracies to meet job tolerances from rough grading to final precision finishing

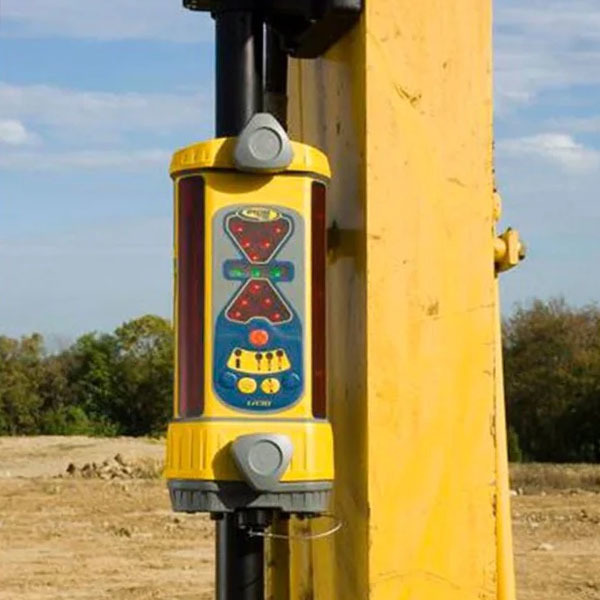

The LR30 has 2 adjustable clamps that are designed to fit onto a vertical pole or the optional removal MM-1 magnetic pole and detects all types of standard red beam rotating lasers for fast, no-hassle setup. The bright LED's are visible even in direct sunlight.

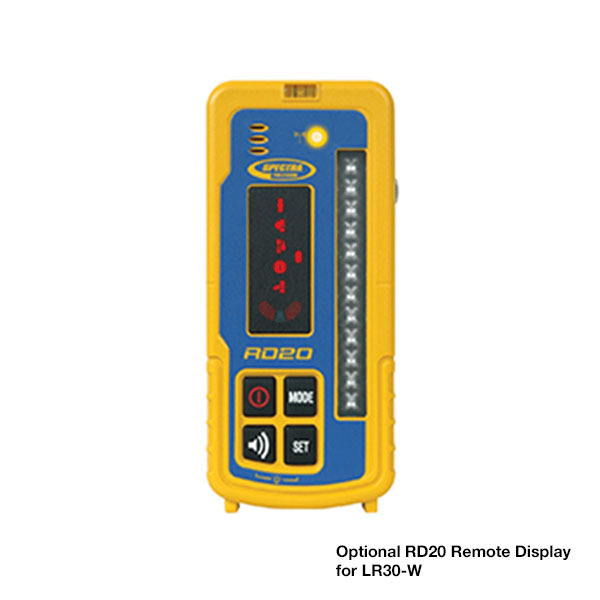

The LR30W wireles model is also available, designed to pair and work with the optional in cab RD20 Remote Display.
Specifications
- Operating Range: Up to 460m radius (dependant on rotating laser model)
- Reception Angle: 360⁰
- Vertical Detection Height: 170mm
- Display: LED lights with above, on grade and below indication
- Accuracy: Fine (5mm), Standard (12mm), Coarse (32mm)
- Automatic Machine Control Compatibility: No
- Battery Type: 4x C alkaline
- Battery Life: Up to 75 hours
- Weight: 2.46kg incl. batteries
Packages
| Product | Details | Price |
|---|---|---|
| Spectra Precision LR30 Boom Laser Receiver | LR30, 4x C size alkaline batteries, operation guide, hard case. |
|
| Spectra Precision LR30W Boom Laser Receiver | LR30W, RD20 remote display, NiMH rechargeable batteries, battery charger with cannon adapter, operation guide, hard case.
|
SPECIAL ORDER ITEM - EMAIL sales@accurate.kiwi TO PRE ORDER
|

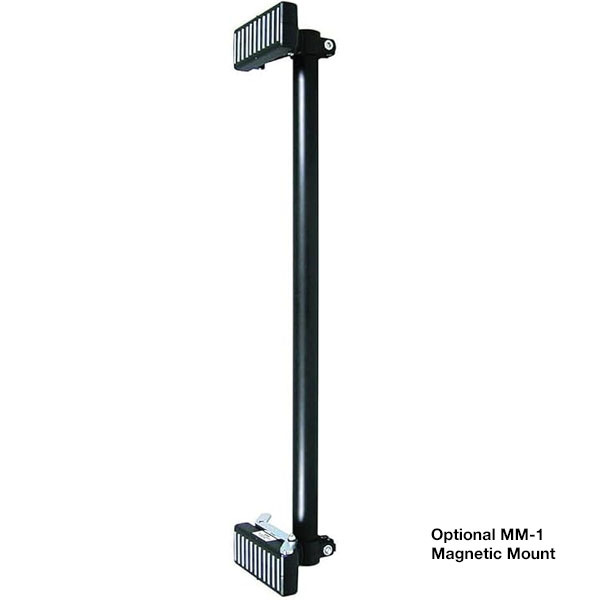

| Spectra Precision MM1 Magnetic Mount | Dual magnets, 85cm length x 40mm pole. |
