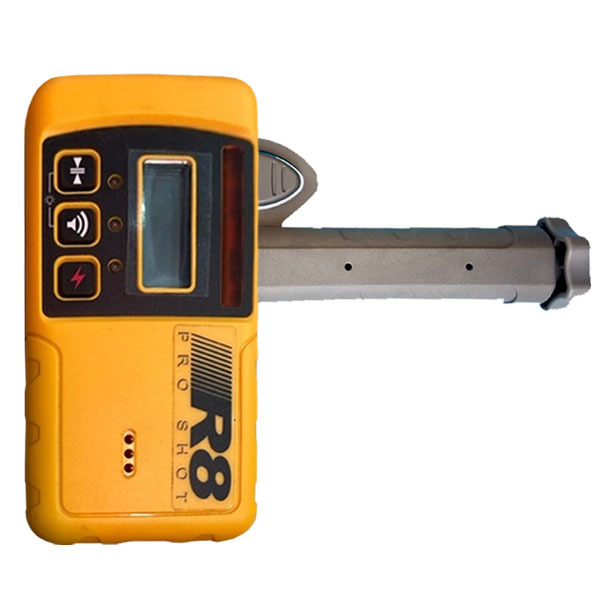

Pro Shot R8 Laser Receiver
Conventional rotating laser receiver with front and rear LCD's and LED lights designed to work with the Pro Shot rotating laser levels and other general purpose rotating red beam laser levels.
The Pro Shot R8 Laser Receiver is designed to provide accurate height and grade information through its five-channel front and rear LCD displays. It also features an adjustable audio tone indicator that announces the laser’s grading status (high, low, or on-grade). It has reception height 50 millimeters and reception angle of 90 degrees.
Equipped with three control switches, the R8 receiver allows accuracy setting, volume adjustment, and one-touch power on and off. It offers three selectable on-grade accuracies including ultra-fine (±1 millimeter), standard (±1.6 millimeters), and coarse (±3.2 millimeters).
The Pro Shot R8 Laser Receiver enables automatic shut-off after 30 minutes of not receiving laser beam strike.
Specifications
- Reception Height: 50mm
- Reception Angle: 90 degrees
- Standard Mode accuracy: +-1.6mm
- Coarse Mode Accuracy:+-3.2mm
- Ultra-fine Mode Accuracy: +-1mm
- Power Supply: 2x AA batteries
- Battery Life: 70 Hours (alkaline)
- Automatic Shut Off: After 30 Mins (no laser strikes)
- Environmental: IP66 Sealed against dust and water
- Adjustable Tone Volume: High/Low/Off
- Warranty: 2 years
Packages
| Product | Details | Price |
|---|---|---|
| Pro Shot R8 Laser Receiver | R8 receiver, clamp, alkaline batteries.
|
