MCE R45TC Machine Laser Receiver

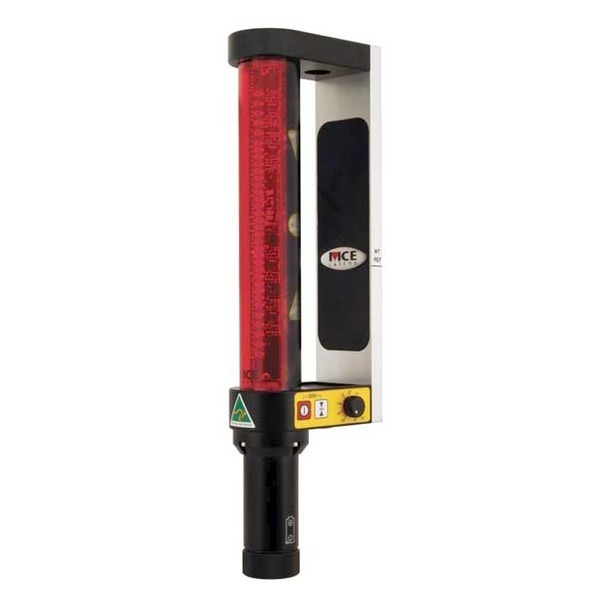

The strong and compact R45TC from MCE is a magnetic laser receiver with tilt compensation, designed to attach to the stick or boom of earthmoving equipment such as excavators, backhoe, trenchers and dozers.

The R45TC is designed to be used as a one man system to manually check levels and digging heights/depths without having to get out of the cab of the machine.

The R45TC will detect/pick up the rotating beam of a laser level, which is mounted on a tripod away from the machine.

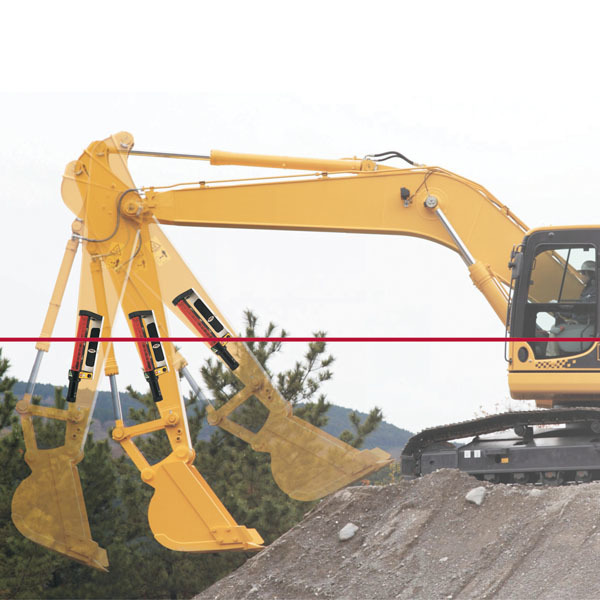

Compared to several other magnetic laser receivers in the price bracket, the R45TC has the additional functionality of tilt compensation. In this mode, the receiver will automatically compensate for the error introduced by deviations from a vertical position by adjusting the centre band automatically. e.g. If the dipper arm is not plumb, the R45TC compensates for the angle of the dipper arm up to a maximum tilt of 30°. The vertical detecting window of the R45 is 190mm, is supplied with built-in magnetic bracket and runs for approx. 40-50 hours on 1 D size alkaline battery.

An optional in cab remote display is available for the R45TC.

Specifications

  • Reception Angle: 220°
  • Detection Distance: Dependant on rotating laser model, typically upto 500m
  • Vertical Detection Range: 190mm
  • Accuracy Fine Mode: +/-4mm
  • Accuracy Standard Mode: +/-8mm
  • Accuracy Coarse Mode: +/-12mm
  • Accuracy Tilt Compensation Mode: +/- 30°
  • Battery Type: 1x D battery
  • Waterproof Rating: Waterproof
  • Battery Life: Typically 45 hours
  • Warranty: 12 months

Packages

Product Details Price
MCE R45TC Machine Laser Receiver

R45TC, 1x D size alkaline battery, built-in magnets, protective magnet plate, operation guide, hard case.

  • RECEIVER-MCE-R45TC
    $2,150.00 + GST
