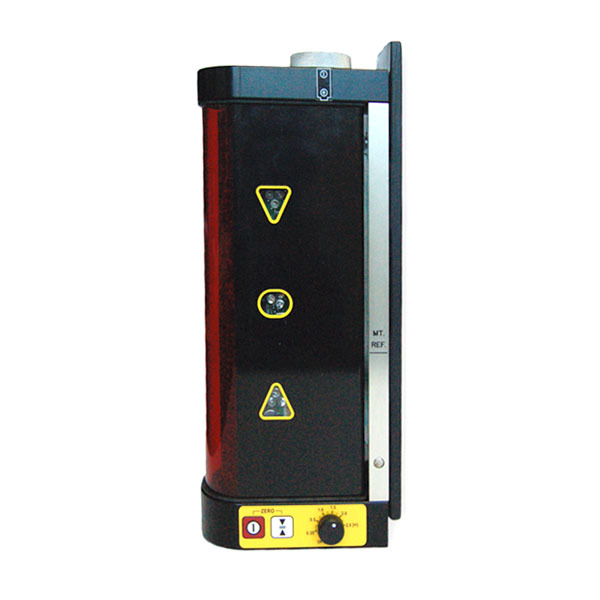

MCE R45TC Pro Machine Laser Receiver

FREE SAMSUNG PHONE! Bluetooth equipped magnetic boom mounted laser receiver for civil earthmoving and drainage machinery with free Apps for Android phones.

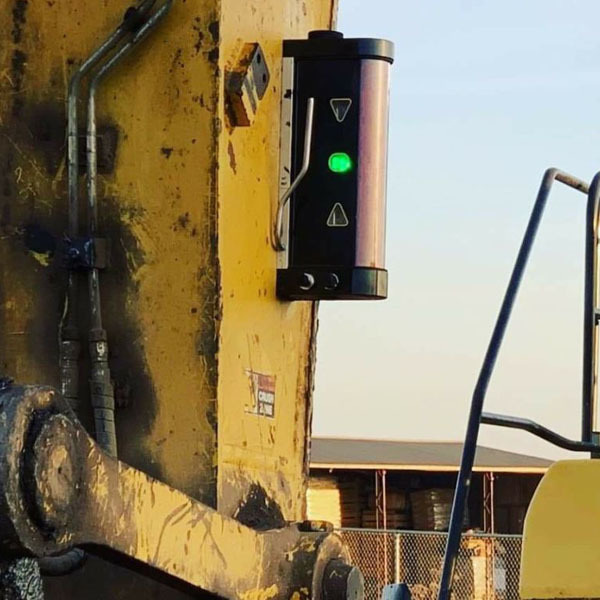

The strong and compact R45 series boom mounted receivers from MCE Australia are designed with the heavy industry of earthmoving, civil drainage and site leveling in mind.

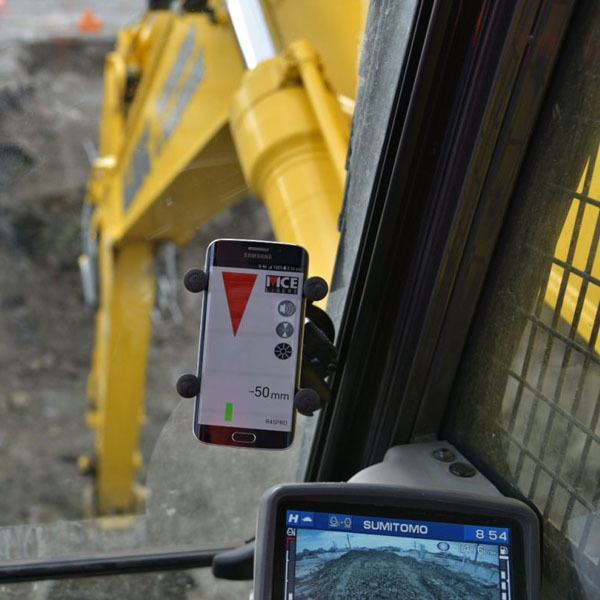

The R45TC Pro model is one of the first of it's kind - a Bluetooth equipped laser receiver used in conjunction with an Android enabled app, so the operator can see everything from the cab of the machine - wireless, using their phone.
The Pro model also features CAN communication, allowing microcontrollers and devices to communicate with each other within one vehicle.

Along with the non-bluetooth R45TC model, the R45TC Pro has the functionality of tilt compensation. In this mode, the receiver will automatically compensate for the error introduced by deviations from a vertical position by adjusting the centre band automatically. e.g. If the dipper arm is not plumb, the R45TC Pro compensates for the angle of the dipper arm up to a maximum tilt of 30°. The vertical detecting window of the R45TC Pro is 190mm, is supplied with built-in magnetic bracket and runs for approx. 40 hours on 4 C size alkaline batteries.

Optional aluminum wired DB-UNI Pro cab display also available for the R45TC Pro.

Key Features

  • Wireless communication to the cab using Bluetooth
  • Free apps for Andorid enabled phones
  • Rugged and versatile
  • Prevents re-work
  • Reduces grade-checks
  • Easy to change from one machine to another
  • Highly visible LED’s
  • Automatic tilt compensation up to 30°
  • 220° reception range
  • Power on indicator

Specifications

  • Reception Angle: 220°
  • Detection Distance: Dependant on rotating laser model, typically upto 500m
  • Vertical Detection Range: 190mm
  • Accuracy Fine Mode: +/-4mm
  • Accuracy Standard Mode: +/-8mm
  • Accuracy Coarse Mode: +/-12mm
  • Accuracy Tilt Compensation Mode: +/- 30°
  • Battery Type: 4x C batteries
  • Waterproof Rating: Waterproof
  • Battery Life: Typically 45 hours
  • Warranty: 12 months

Packages

Product Details Price
MCE R45TC Pro Machine Laser Receiver

FREE SAMSUNG PHONE! R45TC Pro, 4x C size alkaline batteries, built-in magnets, protective magnet plate, operation guide, hard case.

  • RECEIVER-MCE-R45TC-PRO
    $2,550.00 + GST
