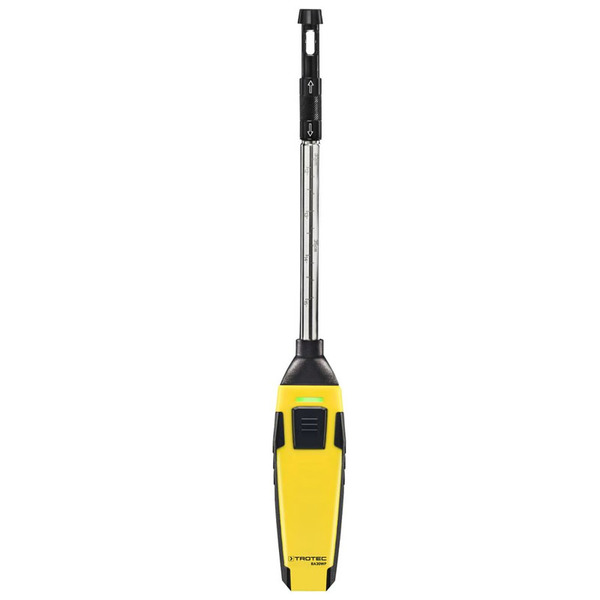

Trotec BA30WP Anemometer
The Trotec BA30WP is a Bluetooth enabled hot-wire anemometer used in conjunction with Trotec's iOS and Android compatible MultiMeasure Mobile smartphone app.
The Trotec BA30WP is an anemometer capable of measuring cubic airflow volumes, airspeed, air temperature and relative humidity.
Featuring a hot-wire sensor on an extendable probe, the BA30WP is compact and handheld, with the extending probe enabling measuring of air movements inside HVAC ducts, air conditioning systems and vents.

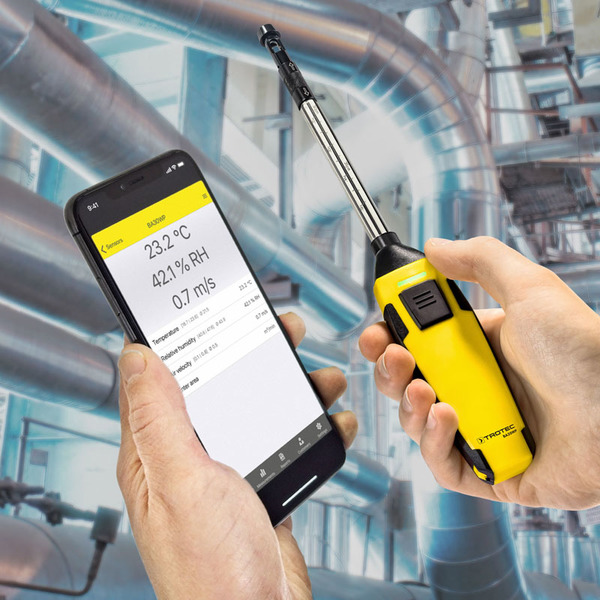

It is designed to be used in conjunction with the MultiMeasure Mobile app, operating on and iOS or Android compatible phone.
Once connected via Bluetooth, the app displays live tracking data of the individual measured parameters.
It also allows recording of data to be stored in the app, allowing the operator to create a named job file and report for exporting.
For airflow measurements, the CMM measurement mode (m3/min) allows the cubic measurement to be determined.
In the MultiMeasure Mobile app on the phone, simply enter the diameter or area of the aperture being measured (in centimeters) and measure the volumetric airflow. Ideal for hvac, air conditioning, exhaust, fan and ventilation measurements etc.
The Trotec BA30WP comes standard with a 1 Year Manufacturer's warranty covering any defects in materials or workmanship.
Specifications
- Measurement Functions: Air speed, air volume, air temperature, relative humidity
- Accuracy: Typically +/- 3.5% of the measured value (airspeed); +/- 0.5 to 0.8 ° C (temperature); +/- 3.5% rH (humidity)
- Resolution: 0.01 m/s (airspeed) 0.1cmm (airflow); 0.1 ° C (temperature); 0.1% rH (humidity)
- Measurement Units: ° C, ° F (temperature) m/s, km/h, ft/min, mph, knots (airspeed); % rh (humidity)
- Measurement Range: -20 to +60 ° C (temperature); 0 - 30.00 m/s (airspeed); 0 - 999 m3/m (airflow); 0 to 100% rh (humidity)
- Battery Type: 3x AAA batteries
- Weight: 122g incl. batteries
Packages
Product | Details | Price |
---|---|---|
Trotec BA30WP Anemometer | BA30WP APP sensor, 3x AAA batteries, lanyard, user manual (QR code download). |
|
Trotec APP Sensor Pouch | Trotec APP Sensor pouch (stores up to 8 APP sensors) |
