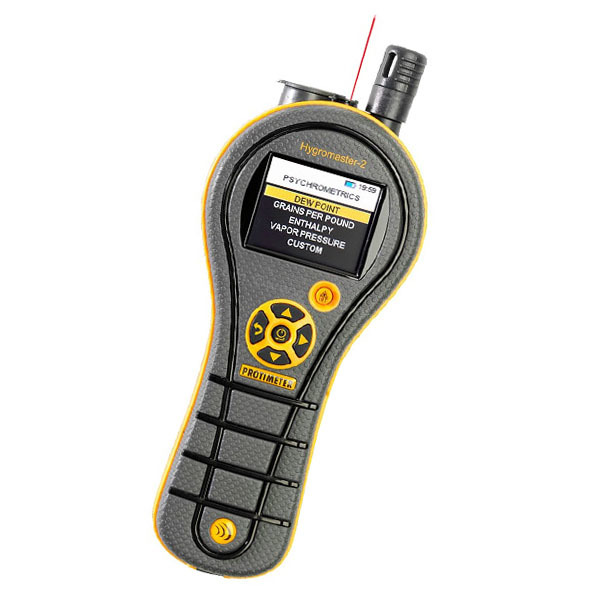

Protimeter Hygromaster2 Moisture Meter

The new Hygromaster2 is the latest of the Protimeter moisture meters, simple and easy to use with multiple hygrometric and psychometric calculations, designed for the flooring industry.

The Hygromaster2 is the meter you require if you wish to measure the relative humidity (RH%) in the air or with a concrete slab or wall.
The new Hygromaster2 now includes an infrared laser thermometer for measuring surface temperature as well as data logging functionality - both manual log and automatic.

Moisture Measurement of Concrete Floors New Zealand Flooring Standards require concrete floors to have a relative humidity level of no more than 75 % before floor coverings can be installed.

Simple non-invasive "scanning" capacitance meters either do not provide a humidity RH reading OR are simply not an accurate method of "measuring" concrete moisture. *More information can be found by referring to the NZ Flooring Industry Standards AS/NZS 2455 and AS/NZS 1884 and BRANZ Bulletin and 585.

The only way to perform a humidity measurement is with a Hygrometer like the Hygromaster2.

For a non destructive method of measuring, the hygrometer can be used with a humidity box. This box (with a small cavity on the underneath side, and a plugged hole in the side) is sealed to the top of the concrete slab and left, typically, for a period of 24-36 hours. Because the cavity space on the underneth of box is less dense than the concrete, the movement of moisture occurs from the concrete into this space. After the alotted time period, the plug from the side is removed and the hygrometer is inserted into this hole to measure the RH inside the cavity within the humidity box (see Image 2 left).. Often 2 or 3 boxes are used across a whole slab. The average reading is then taken.

For an invasive deeper method of measuring, holes can be drilled into the concrete and plastic sleeves can be inserted into the slab. The sleeve, approx. 16mm in diameter, is inserted into the drilled hole, then capped and left, typically for a period of 24-36 hours. Several sleeves are inserted into the concrete to attain areas over a greater area on the concrete slab when compared to the humidity box option above. Because the sleeve is perforated and the space inside the sleeve is less dense than the surrounding concrete, the movement of moisture occurs from the concrete into this space. After the alotted time period, the cap is removed and the hygrometer is inserted into this sleeve to measure the RH within the concrete slab (see Image 3 left).

Note: For both methods, it is important to let the Hygromaster2 aclimatise to the temperature inside the humidity box or sleeve to attain the correct values.

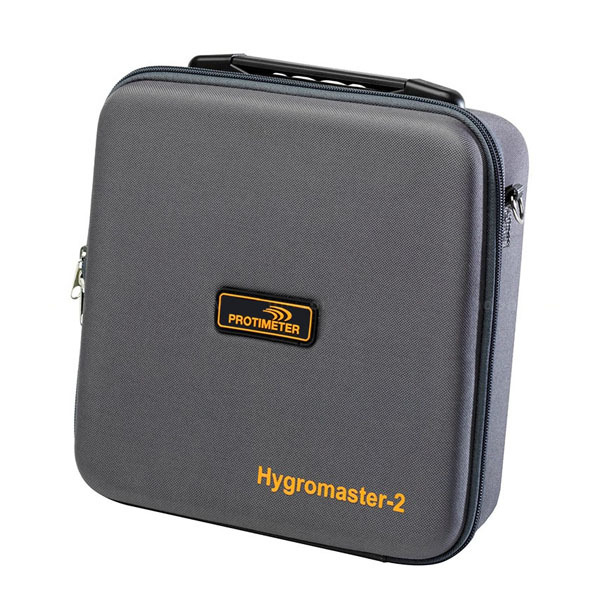

A wide range of accessories including humidity sleeves, humidity boxes and hard carry cases are available for the Hygromaster2.

Specifications

  • Measurement Type: Air & Surface temperature, humidity, dew point
  • Measurement Range Relative Humidity: 30 - 98% rh (0 - 100% with on Quickstick)
  • Accuracy Relative Humidity: typically +/- 2%
  • Measurement Range Air Temperature: 0 to +50 ° C (32 to 122 ° F)
  • Accuracy Temperature: Typically +/-1.5 ° C
  • Measurement Range IR Surface Temperature: -20 to +80 ° C (15 to 122 ° F)
  • Data Logging: Yes, up to 8000 stored values
  • Display: Colour LCD
  • Weight: 227 grams (instrument only)
  • Battery Type: 1x 9V Alkaline
  • Warranty: 2 Years

Packages

Product Details Price
Protimeter Hygromaster2 Moisture Meter

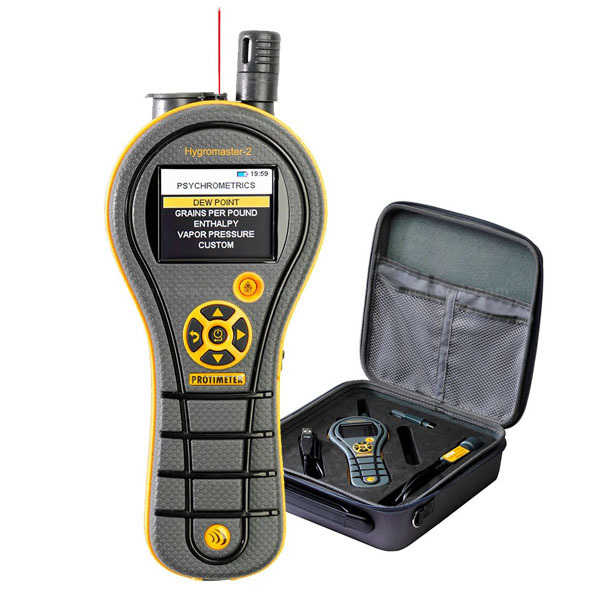

Standard package (BLD7750) includes: Hygromaster2, hygrostick, stick extension cable, 1x 9V battery, operating manual, logging software, USB cable, soft case.

  • MOISTURE-PROTIMETER-HYGROMASTER2
    $1,029.00 + GST
Protimeter Hygromaster2 Moisture Flooring Kit

Hygromaster2 with standard accessories PLUS adjustable humidity sleeves, 5x hygrosticks with extension lead, rH cal check, drill, brush, extractor tool and hard case, for undertaking moisture content readings of concrete floors.

  • MOISTURE-PROTIMETER-HYGROMASTER2-FLOOR
    $2,670.00 + GST
Protimeter Hygromaster2 Adjustable Humidity Sleeves

Pack of 20 humidity sleeves

  • MOISTURE-PROTIMETER-HYGROMASTER2-SLEEVES
    $79.00 + GST
Protimeter Hygromaster2 Surface Humidity Box

Humidity Box only.

  • MOISTURE-PROTIMETER-HYGROMASTER2-BOX
    $99.50 + GST
