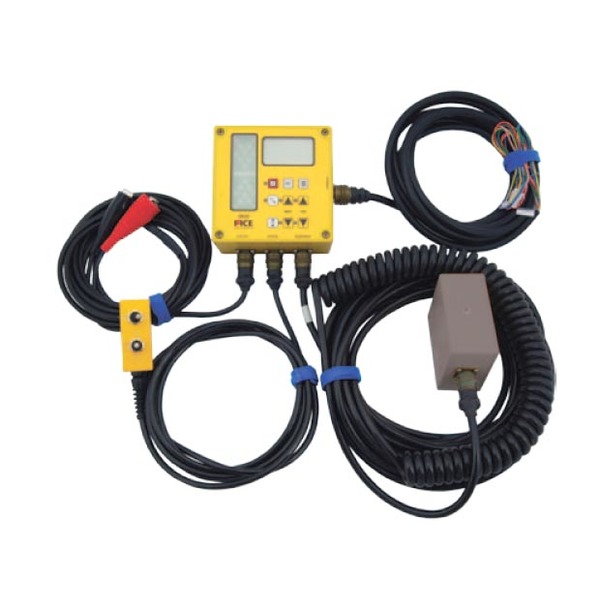

MCE Blade Grader System
Where a constant grade of a check bank or level bank is required, the Blade Grader is ideal.
The LCD gives you the exact grade your blade is working at. For example, if your road shoulder is at grade 1 in 36, the BG.001 will provide you with grade of 2.7778% displayed on the LCD. The control box can store 4 grade values in memory for quick grade changes. The Blade Grader can be used automatically or manually to control grade of cutting blade via the control box. The control box gives a clear digital readout of the grade of the blade.
Specifications
- Range: ± 30%
- Resolution: 0.05%
- Power supply: 12 - 24 V DC
- Grade control box: (CB.D2)
- Display size: 65 x 37 mm graphical LCD Dimensions (H x W x D) 160 x 160 x 92 mm
- Weight: 1.88 kg
- Grade sender box: (BG.1500)
- Dimensions: (H x W x D) 124 x 80 x 58 mm
- Weight: 0.59 kg
MCE Lasers
MCE Lasers was established in 1981 to repair laser systems and develop custom built levelling equipment for specific applications construction and civil applications. Today the company is one of Australasia’s leading provider of high technology laser alignment instruments. Most of our activities such as R&D, optical, mechanical and electronics work are done in house, consisting of two factories. One factory is used as a machining shop (mechanical), and the other used for electronics, optical and R&D work. Distribution of MCE products and customer-service is handled by twelve Australia-wide representatives and Accurate Instruments (NZ) Ltd throughout New Zealand.
