High Sense Solutions PERIJA Mini VPick-Up
The PERIJA Mini VPick-Up is a cost effective acoustic water leak detector equipped with internal Bluetooth to communicate data with Android-based smartphones and tablets.
The PERIJA VPick-UP is equipped with Water Leakage Judgment mode, and is well-suited to water leak surveying and pinpointing on plastic pipes like PVC and PE.
With a wide frequency range of 200 - 4000 Hz and with four band-pass filters, and notch filters this economical and innovative water leak detection system has been equipped with Bluetooth to communicate data with Android-based smartphones and tablets.
200 to 4000 Hz frequency range and 4 band-pass filters help users to find leakage at various depths and all types of pipe materials.
Users also can use filteROT™ Mode to understand and choose the best filter in their project.
When PERIJA Mini VPICK-UP™ connects to smartphones or tablets, the minimum and average noise levels of places is displayed with GPS Data. This feature is useful for checking, pinpointing, analyzing, and reporting.

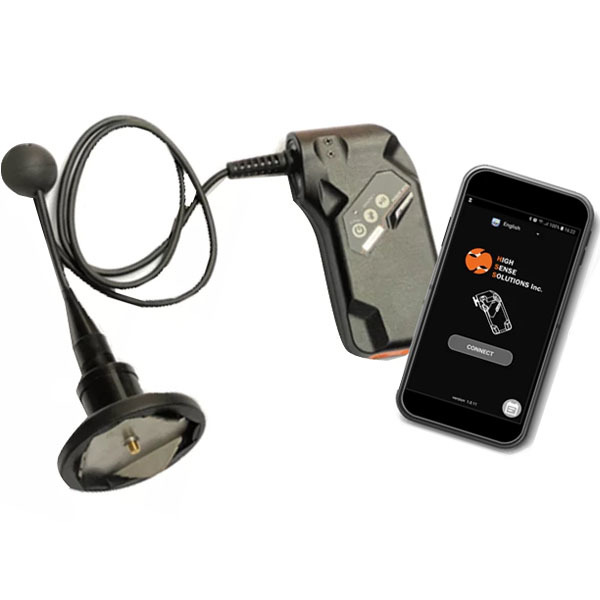

Users can control the PERIJA Mini VPick-Up with multifunction keys also with the PERIJA Mini APP (Android version is available).
Signal levels, GPS data, selected filters, and all other functions are available on the Android device.
By using a cutting-edge algorithm, PERIJA Mini VPick-Up can make a judgment about the possibility of leakage on the target pipeline in 4 levels.
PERIJA Mini VPick-Up uses the nonmechanical button’s sensor to stream on/off the audio as a Mute Key. (suitable for reflective surfaces)
Specifications
- Operation: Acoustic leak detection, External Piezoelectric sensor
- Amplification: 53 dB +/-3
- Frequency Range: 200 - 4000 Hz
- Band Pass Filters: 4, High Pass (200, 600 Hz); Low Pass (2100, 4000 Hz)
- Data Communication: Bluetooth low energy
- Display: Android device using Perija Mini APP
- Battery Type: 3.7V 850mAh Li-ion
- Operating Temperature: -10 deg C to +50 deg C
- Weight: na
- Warranty: 1 Year
Packages
| Product | Details | Price |
|---|---|---|

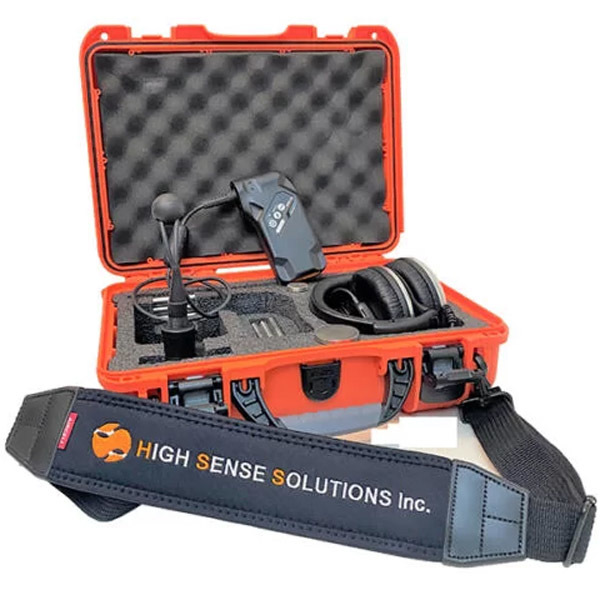

| High Sense Solutions PERIJA Mini VPick-Up | Perija Mini VPick-Up, Stereo headphones, USB cable, mini contact rod and plate, contact rod and plate, shoulder strap, hard transport case, Perija Mini Android APP |
