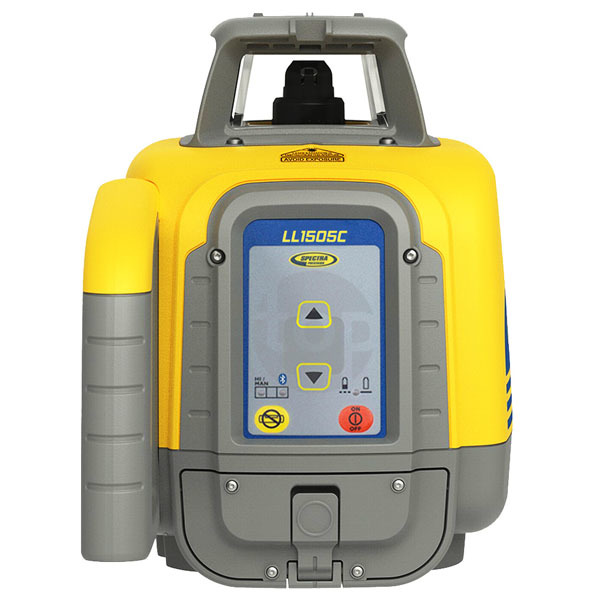

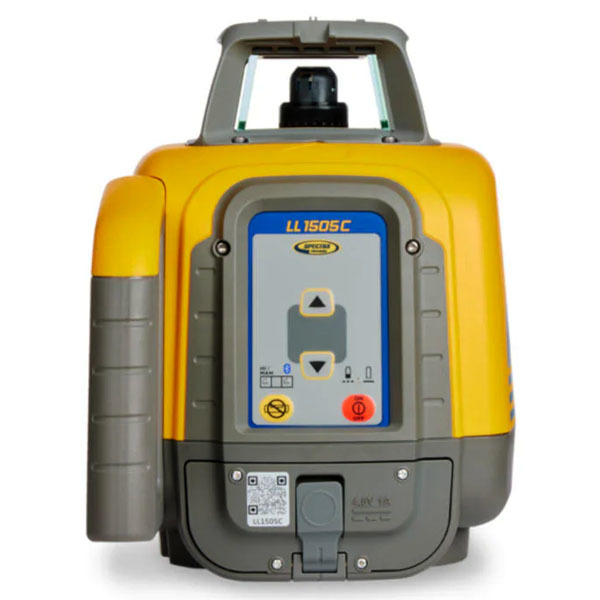

Spectra Precision LL1505C Laser Level

The new Spectra Precision LL1505C is a long range Bluetooth enabled high precision electronic self leveling horizontal laser level with 1.5mm per 30m leveling accuracy, digital receiver technology, manual slope matching and vertical capability.

Unmatched high precision and long range leveling.
The fully automatic, horizontal self-leveling Spectra Precision LL1505C Laser Level is one of the most rugged laser level available, tough enough to handle a wide variety of general, civil and concrete construction applications.
The LL1505C comes with Bluetooth built-in and has a dedicated Laser Remote App to control the key features for level and grade aligning. Made for durability, the LL1505C can withstand drops of up to 1 meter onto concrete and tripod tip overs up to 1.5 meters. This strength, combined with full weatherproofing and dustproofing, reduces downtime and lowers repair costs over the life of the product.

Ideal for long range civil leveling applications, the LL1505C has an operating diameter of 1200 meters when used with the HL760 laser receiver.

The LL1505C is available with 3 different digital receivers and optional remote controls.

Choose from the basic HL450 kit, giving you all the horizontal and vertical functions with a digital 'mm' receiver.
The package that includes the HL700 digital receiver features a wider deadband of 127mm, with anti strobe mode, more accuracy settings and longer detection range.
The best package to achieve the best from the LL1505C combines the HL760 radio receiver, which is digitally paired together, allowing access to the manual Grade Match and Fingerprint receiver pairing features when using the Laser Remote App.
The unique “Fingerprint” function only accepts the beam from the laser it is paired with.

All LL1505C packages can be paired via Bluetooth with the Laser Remote App where your phone can be used as the remote control.

The Spectra Precision LL1505C laser level is covered by a 5 Year manufacturers warranty.

Specifications

  • Accuracy: +/-10 arc seconds (+/-1.5mm at 30 meters)
  • Operating Diameter: 1200 meters (with HL760 receiver)
  • Self Levelling Type: Electronic servo motors
  • Rotation Speed: 300, 600, 900 RPM selectable
  • Laser Type: 630 – 643 nm, Class 2
  • Water & Dust Protection: Waterproof to IP66
  • Operating Temperature: -20° C to +50° C
  • Weight: 3.49kg
  • Battery Power: NiMH rechargeable batteries
  • Battery Life: 55 hours
  • Warranty: 5 Years

Packages

Product Details Price
Spectra Precision LL1505C Laser Level

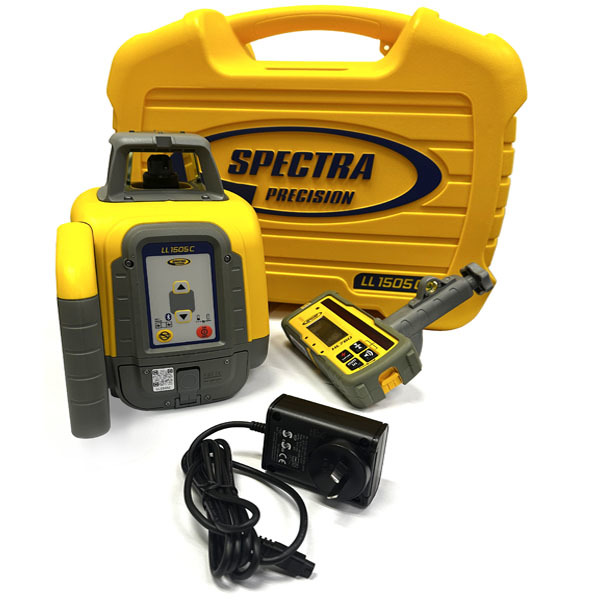

Spectra Precision LL1505C Laser Level with HL450 Digital Receiver & Tripod

LL1505C laser with NiMH battery pack & charger, HL450 'mm' digital receiver with C45 clamp and 2x AA alkaline batteries, heavy duty flat aluminium tripod, NZ dated calibration sticker, shockwatch, NZ test calibration certificate - laminated, user manual and hard carry case.

  • LASER-SP-LL1505C_HL450
    $2,650.00 + GST
Spectra Precision LL1505C Laser Level with HL700 Digital Receiver & Tripod

LL1505C laser with NiMH battery pack & charger, HL700 'mm' digital receiver with C70 clamp, bubble and 2x AA alkaline batteries, heavy duty flat aluminium tripod, NZ dated calibration sticker, shockwatch, NZ test calibration certificate - laminated, user manual and hard carry case.

  • LASER-SP-LL1505C_HL700
    $2,750.00 + GST
Spectra Precision LL1505C Laser Level with HL760 Digital Receiver, RC1402N Remote & Tripod

LL1505C laser with NiMH battery pack & charger, HL760 'mm' radio digital receiver with C70 clamp, bubble and 2x AA alkaline batteries, heavy duty flat aluminium tripod, NZ dated calibration sticker, shockwatch, NZ test calibration certificate - laminated, user manual and hard carry case.

  • LASER-SP-LL1505C_HL760
    $2,850.00 + GST
5meter 5/10mm Aluminium Leveling Staff

5meter 5/10mm Aluminium Leveling Staff with Bag & bubble.

  • LASER-SP-LL1505C-5MSTAFF
    $100.00 + GST
