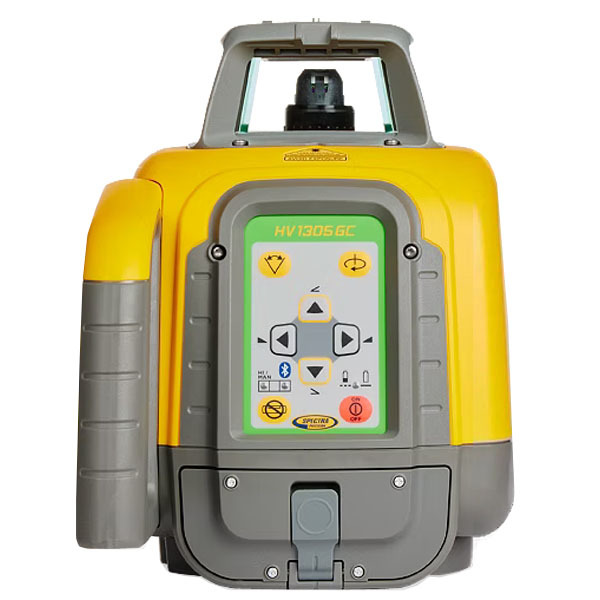

Spectra Precision HV1305GC Laser Level
The new Spectra Precision HV1305C is a Bluetooth enabled highly visible green multi-speed rotating laser featuring horizontal AND vertical self leveling, smart alignment features and scanning, primarily designed for the suspended ceiling market.
A new generation in visibility and versatility is here.
The automatic self-leveling Spectra Precision HV1305GC Horizontal/Vertical Laser offers exceptional versatility and superior green beam visibility for increased productivity at a great value.
It is capable of handling a wide variety of horizontal, vertical and plumb applications optimized for interior projects.
A split beam enables plumb point transfer and 90 degree layout.
Even in brightly lit interior conditions, the high visibility green beam of the HV1305GC delivers consistently reliable and accurate performance, enabling you to work faster and smarter.
The CEILING PACKAGE includes the RC1402N remote control, M302 ceiling mount and green reflective target for consistent performance for suspended interior ceiling work.
The CONSTRUCTION PACKAGE is aimed to do everything indoors PLUS outdoors. It includes a HL760U digital 'mm' receiver and a heavy duty flat aluminum tripod.
Even in the toughest jobsite conditions, the laser delivers reliable, accurate performance to increase overall productivity and cost-savings.
The HV1305GC features a simple keypad with arrow buttons, making it easy to use.
By utilizing the radio communication between HV1305GC and the optional HL760U receiver, a reference for a sloped ceiling or line points for drywall layout can be quickly and easily established. The HL760U receiver is unique as it will work with any green, infra-red or red beam laser.
When using the HL760U receiver, the PlaneLok function automatically locks the HV1305GC laser onto the receiver at an existing elevation or vertical alignment point. Should the receiver location be moved slightly, the HV1305GC will continue to stay locked onto the level location of the recevier.
The Grade Match function searches then locks onto the optional HL760U receiver, then measures and displays the existing grade over unknown ground, eliminating time consuming and error prone calculations, time spent searching for grade plans etc.
The Spectra Precision HV1305G laser level is covered by a 5 Year manufacturers warranty.
Specifications
- Accuracy: +/-10 arc seconds (+/-1.5mm at 30 meters)
- Operating Diameter: 1200 metres (with HL760U receiver)
- Remote Control Range: Up to 100 metres
- Self Levelling Type: Electronic servo motors
- Rotation Speed: 0, 10, 100, 200, 300 and 600 rpm selectable
- Scan Angles: Preset 5°, 15°, 45° and 90°
- Laser Type: 510 – 530 nm, Class 3
- Water & Dust Protection: Waterproof to IP66
- Operating Temperature: -20° C to +50° C
- Weight: 3.49kg
- Battery Power: NiMH batteries
- Battery Life: 30 hrs
- Warranty: 5 Years
Packages
| Product | Details | Price |
|---|---|---|
| Spectra Precision HV1305GC Laser Level Ceiling Package | HV1305GC laser, RC1402 remote control, M304 ceiling/laydown mount, green ceiling target, green laser glasses, rechargeable NiMH batteries, battery charger, NZ dated calibration sticker, shockwatch, NZ test calibration certificate - laminated, user manual and hard carry case.
|
|
| Spectra Precision HV1305GC Laser Level Construction Package | HV1305GC laser, HL760U receiver with clamp & 105516 vertical bracket, RC1402 remote control, M304 ceiling mount, green laser target, green laser glasses, heavy duty flat aluminium tripod, green ceiling target, rechargeable NiMH batteries, battery charger, NZ dated calibration sticker, shockwatch, NZ test calibration certificate - laminated, user manual and hard carry case.
|
|
| Spectra Precision HV1305GC Laser Level |
|
