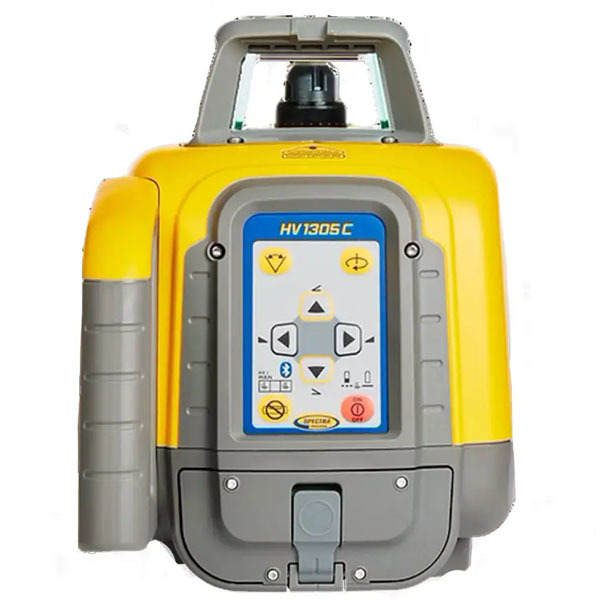

Spectra Precision HV1305C Laser Level
The new Spectra Precision HV1305C is a Bluetooth enabled horizontal AND vertical self leveling laser level with automatic Grade Matching and PlaneLok, designed for high accuracy external and internal level and slope matching applications.
A new generation in visibility and versatility is here.
The self leveling, multi speed Spectra Precision HV1305C horizontal and vertical laser level is the most rugged, cost-effective and connected professional laser level on the market. Along with both horizontal and vertical self leveling alignment, the HV1305C is capable of handling a wide variety of external and internal horizontal, vertical and plumb applications.
Acoustic ceilings, drywall, floor slabs, site prep and site setout are fast and efficient with the HV1305C.
The HV1305C is available with 3 different digital receivers and optional remote controls.
Choose from the basic HL450 kit, giving you all the multi speed horizontal, vertical and squaring functions with a digital 'mm' receiver. The package that includes the HL700 digital receiver features a wider deadband of 127mm, with anti strobe mode, more accuracy settings and longer detection range.
The best package to achieve the best from the HV1305C combines the HL760 radio receiver and RC1402N remote, which are digitally paired together, allowing access to the Automatic Grade Match, PlaneLok, Line Scan, Beam Plunge and Fingerprint receiver pairing features. The unique “Fingerprint” function only accepts the beam from the laser it is paired with.
Automatic Grade Match automatically searches for and locks onto the receiver in the Y axis, up to a range of +/- 5 degrees (9%). This enables simple easy automated slope alignment and helps eliminate time consuming and error prone calculations.
PlaneLok automatically locks on to an existing horizontal elevation or vertical alignment point which eliminates all drift or possibility of error The unique “Fingerprint” function only accepts the beam from the laser it is paired with.
Line Scan and Beam Plunge can be used in the vertical mode to enable correct vertical alignment.
All HV1305C packages can be paired via Bluetooth with the Laser Remote App where your phone can be used as the remote control.
The Spectra Precision HV1305C laser level is covered by a 5 Year manufacturers warranty.
Specifications
- Accuracy: +/-10 arc seconds (+/-1.5mm at 30 meters)
- Operating Diameter: 1200 meters (with HL760 receiver)
- Remote Control Range: Up to 100 meters
- Self Levelling Type: Electronic servo motors
- Rotation Speed: 0, 10, 100, 200, 300 and 600 rpm selectable
- Scan Angles: Preset 5°, 15°, 45° and 90°
- Laser Type: 630 – 643 nm, Class 2
- Water & Dust Protection: Waterproof to IP66
- Operating Temperature: -20° C to +50° C
- Weight: 3.49kg
- Battery Power: NiMH batteries
- Battery Life: 45 hours
- Warranty: 5 Years
Packages
Product | Details | Price |
---|---|---|
Spectra Precision HV1305C Laser Level |
|
|
Spectra Precision HV1305C Laser Level with HL450 Digital Receiver & Tripod | HV1305C laser with NiMH battery pack & charger, HL450 'mm' digital receiver with C45 clamp and 2x AA alkaline batteries, heavy duty flat aluminium tripod, NZ dated calibration sticker, shockwatch, NZ test calibration certificate - laminated, user manual and hard carry case. |
|
Spectra Precision HV1305C Laser Level with HL700 Digital Receiver & Tripod | HV1305C laser with NiMH battery pack & charger, HL700 'mm' digital receiver with C70 clamp, bubble and 2x AA alkaline batteries, heavy duty flat aluminium tripod, NZ dated calibration sticker, shockwatch, NZ test calibration certificate - laminated, user manual and hard carry case. |
|
Spectra Precision HV1305C Laser Level with HL760 Digital Receiver, RC1402N Remote & Tripod | HV1305C laser with NiMH battery pack & charger, HL760 'mm' radio digital receiver with C70 clamp, bubble and 2x AA alkaline batteries, 105516 vertical bracket for HL760, RC1402N remote control, magnetic red laser target, red laser glasses, heavy duty flat aluminium tripod, NZ dated calibration sticker, shockwatch, NZ test calibration certificate - laminated, user manual and hard carry case. |
|
5meter 5/10mm Aluminium Leveling Staff | 5meter 5/10mm Aluminium Leveling Staff with Bag & bubble. |
