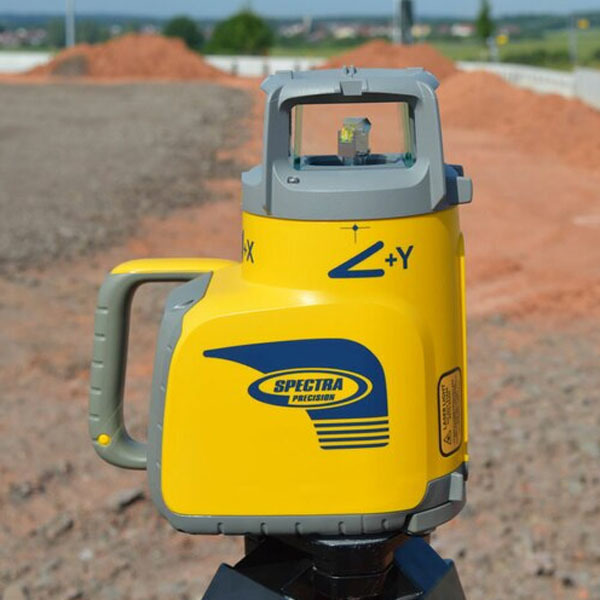

Spectra Precision GL622IR Class1 Dual Grade Laser

The GL622IR from Spectra Precision is a Class 1 dual grade laser. This type of infrared laser beam is required for use in special applications where a Class 2 and Class 3 visible beams are considered a safety hazard, distracting or otherwise is not permissible.

The Spectra Precision GL622IR is a fully automatic, dial-in self leveling dual grade laser designed for high precision rail, roading, civil construction, drainage and earthmoving contractors.
It features a Class 1, 830nm wavelength infrared laser beam.
Class 1 lasers are used in projects such as rail construction and alignment, hospital construction works and in some mining applications, where standard Class 2 or Class 3 visible laser beams are not permitted.
GL622IR shares it base design, performance and features with the GL622N precision dual grade, with features like automatic Grade Match, PlaneLok and Automatic Axis Alignment.

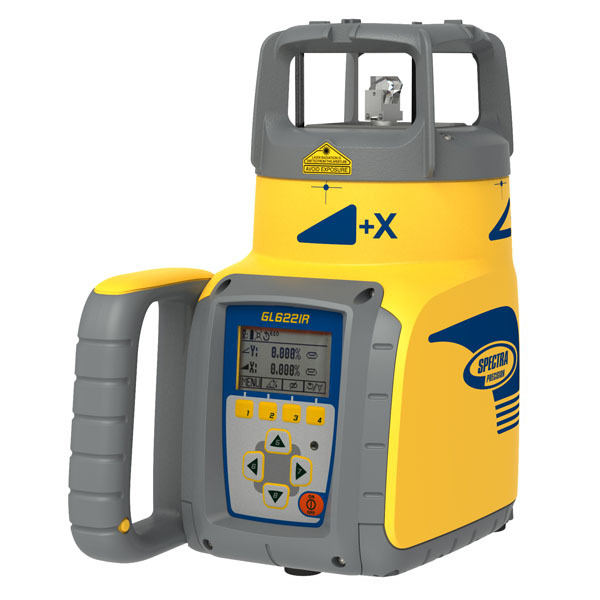

The remote and laser have a graphic display so contractors can do everything with the remote that they can do at the laser keypad. The GL622IR can provide precise automatic axis alignments to two desired points.

The GL622IR however does not offer automatic self leveling in the vertical setup. For precise vertical alignment and setout, refer to the GL622N.

The included HL760 receiver provides a digital readout of elevation and can be used at an operating diameter of up to 800 meters. For applications that require maximum stability and accuracy such as sloping concrete pads, PlaneLok automatically locks the beam on the receiver and keeps it on grade.

The Spectra Precision GL622IR comes standard with a 5 Year Manufacturer's warranty covers any defects in materials or workmanship.


  • Accuracy: +/- 1.5mm at 30m (10 arc seconds)
  • Laser Class: Class 1, 830nm infrared
  • Self Leveling: Yes
  • Grade Range: Dual grade +/-25%
  • Grade Increments: 0.001%
  • Operating Diameter: 800m
  • Remote Control Range: 100m
  • Rotation Speed: 300, 600 & 750RPM selectable
  • Battery Type: Rechargeable NiMH
  • Battery Life: 35 hours
  • Weight: 3.1kg incl. batteries
  • Weather Protection: IP67


Product Details Price
Spectra Precision GL622IR Class1 Dual Grade Laser

GL622IR laser, HL760 receiver with clamp, RC602N remote control, rechargeable NiMH battery pack & charger, NZ dated calibration sticker, shockwatch, NZ test calibration certificate - laminated, user manual and hard carry case.

EMAIL sales@accurate.kiwi FOR LATEST PRICING
