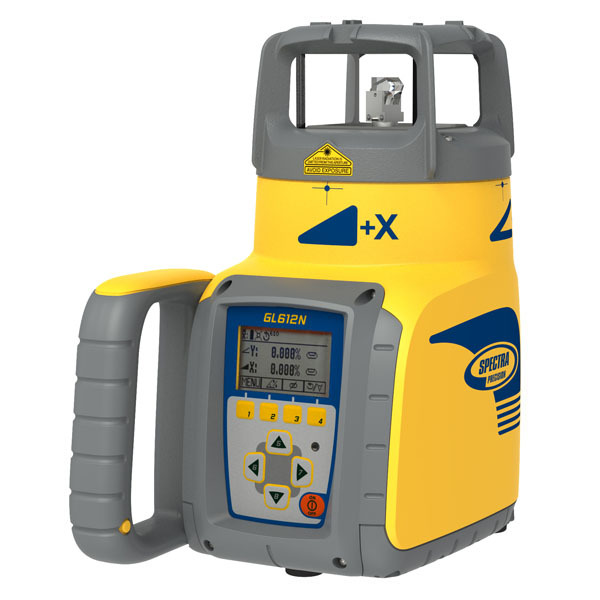

Spectra Precision GL612N Single Grade Laser

High accuracy single grade laser with features that include fingerprint receiver technology, automatic grade matching and planelok, the Spectra Precision GL612N meets the demands of all construction and civil contractors.

The Spectra Precision GL612N is a fully automatic, dial-in self leveling single grade laser designed for high precision civil construction, drainage, earthmoving contractors.
Supplied standard with a fully communicating RC602N remote control, the GL612N offers automatic features like automatic Grade Match, PlaneLok and Automatic Axis Alignment.
The remote and laser have a graphic display so contractors can do everything with the remote that they can do at the laser keypad.

This allows contractors to perform easily dual axis alignments for applications such as grade work on sports fields, parking lots, tennis courts and driveways.
The included HL760 receiver provides a digital readout of elevation and can be used at an operating diameter of up to 800 meters. For applications that require maximum stability and accuracy such as sloping concrete pads, PlaneLok automatically locks the beam on the receiver and keeps it on grade.

The Spectra Precision GL612N comes standard with a 5 Year Manufacturer's warranty covers any defects in materials or workmanship.

Specifications

  • Accuracy: +/- 1.5mm at 30m (10 arc seconds)
  • Self Leveling: Yes
  • Grade Range: Single grade +/-25%
  • Grade Increments: 0.001%
  • Operating Diameter: 800m
  • Remote Control Range: 100m
  • Rotation Speed: 300, 600 & 750RPM selectable
  • Battery Type: Rechargeable NiMH
  • Battery Life: 35 hours
  • Weight: 3.1kg incl. batteries
  • Weather Protection: IP67

Packages

Product Details Price
Spectra Precision GL612N Single Grade Laser

GL612N laser, HL760 receiver with clamp & 105516 vertical bracket, RC602N remote control, rechargeable NiMH battery pack & charger, NZ dated calibration sticker, shockwatch, NZ test calibration certificate - laminated, user manual and hard carry case.

EMAIL sales@accurate.kiwi FOR LATEST PRICING
