QBL/Geomax Arrow4G Green Pipe Laser

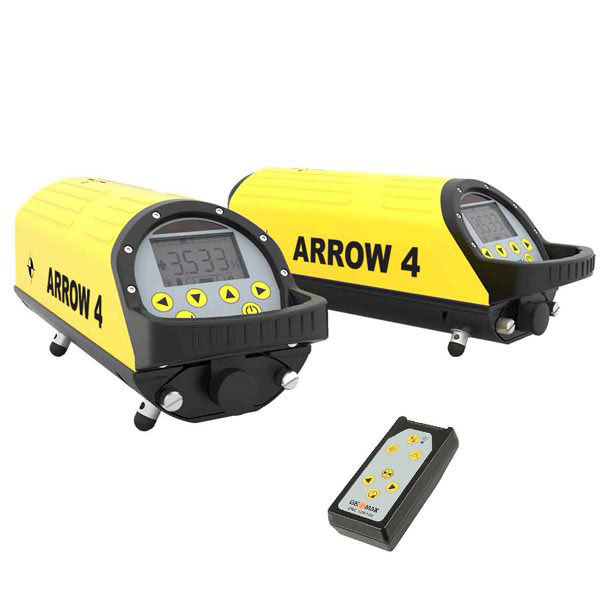

New highly visible green beam pipe laser model, based on the hugely popular Arrow4.

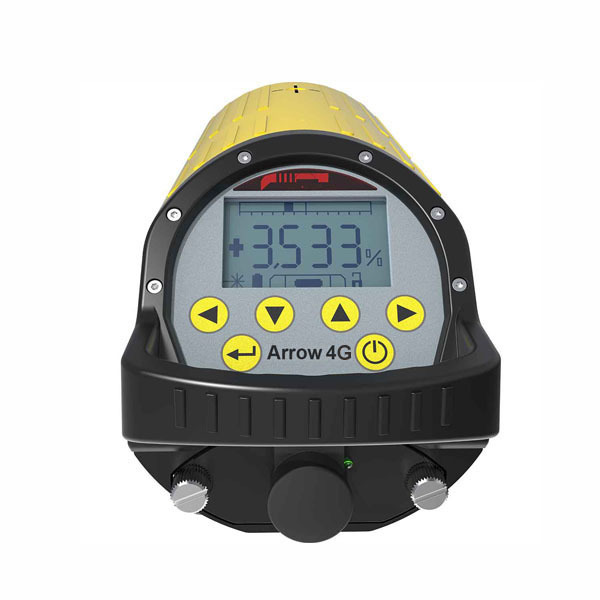

The QBL/Geomax Arrow4G is a heavy duty cast aluminium pipe laser designed for civil drainage, pipe laying plumbers & commercial contractors.

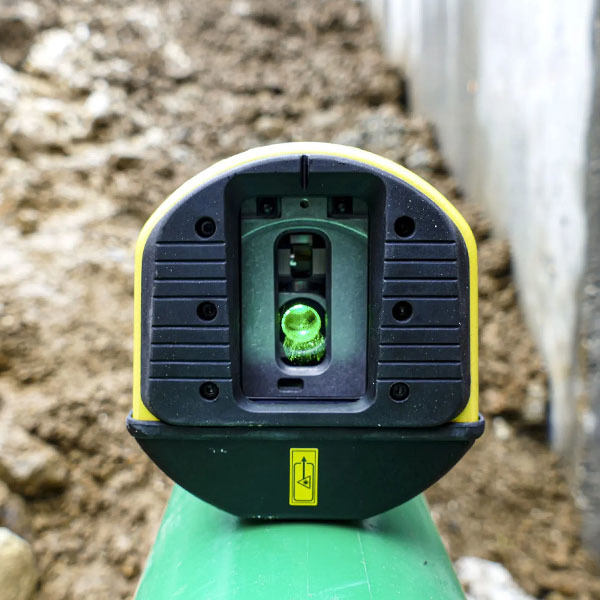

It features a highly visible bright green laser diode, that can be easier for to see in certain light conditions when compared to a standard red beam pipe laser.
The Arrow4G is a reliable, easy to use pipe laser with a grade input range of -10 to +40%, with self leveling in both the main and cross axis.
The unique “Grade Matching” feature of the Arrow4G allows for the alignment of the laser out of the trench/pipe with existing above ground references such as stakes, pegs or warratahs. Once the left/right alignment is completed, the laser returns to the exact desired grade.

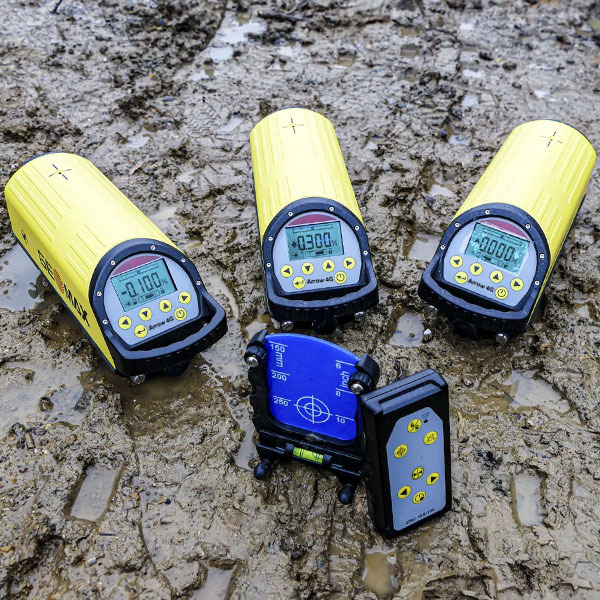

The ZRC125 remote control is easy to operate with the left/right line control, centering and LED vertical reference light .

The QBL/Geomax Arrow4G comes standard with a 5 Year Manufacturer's warranty covers any defects in materials or workmanship.

Specifications

  • Accuracy: +/- 4.8mm at 100m (10 arc seconds)
  • Laser Class: Class3R, less than 5mW
  • Self Leveling: Yes, -15 to +45% range
  • Cross Axis Self Leveling: Manual
  • Grade Range: -10 to +40%
  • Grade Increments: 0.001%
  • Remote Control Range: up to 190m (front of pipe laser)
  • Battery Type: Rechargeable Li-Ion
  • Battery Life: 40 hours rechargeable
  • Weight: 2.08kg incl. batteries
  • Weather Protection: IP68

Packages

Product Details Price
QBL/Geomax Arrow4G Green Pipe Laser

Arrow4G laser, ZRC125 remote control, universal target set, lithium ion battery & charger, 150mm feet, NZ dated calibration sticker, shockwatch, NZ test calibration certificate - laminated, user manual and hard carry case.

CALL 0800 500 380 FOR LATEST PRICING
Available for hire
