QBL/Geomax Arrow4 Pipe Laser

Designed to meet the demands of modern day civil drainage and pipe laying, the Arrow4 pipe laser from QBL/Geomax provides performance, simplicity and reliability all in a rugged compact package. ON SALE!

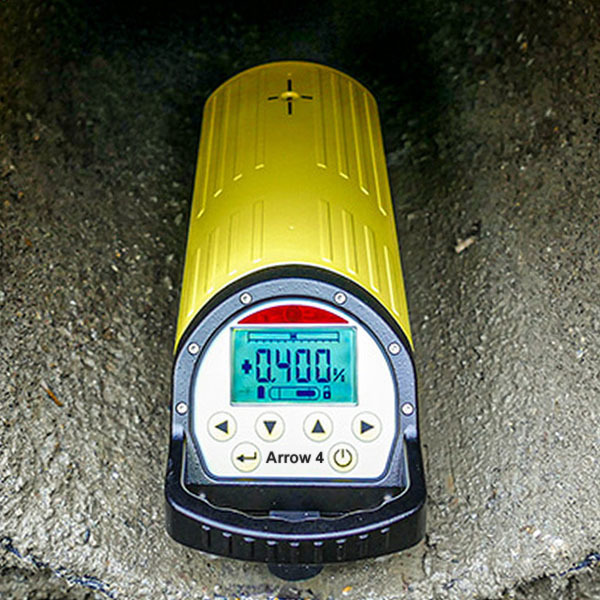

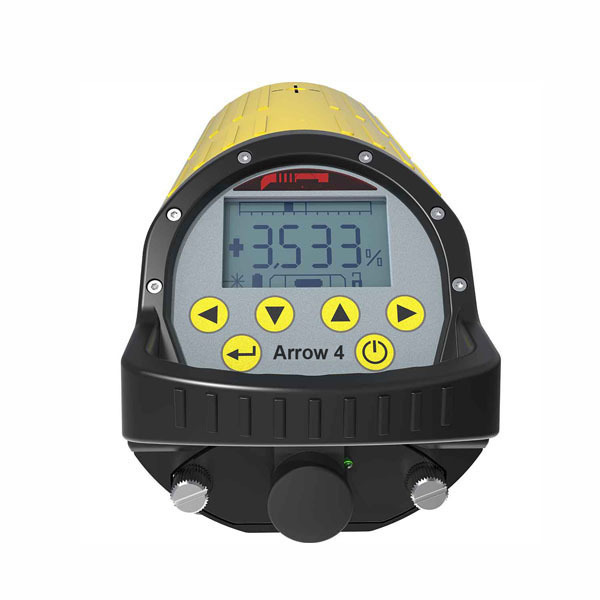

The QBL/Geomax Arrow4 is a heavy duty cast aluminium pipe laser designed for civil drainage, pipe laying plumbers & commercial contractors.

Recently facelifted to Zeta 125 spec, the Arrow4 continues to be our volume selling pipe laser package, which also fulfills the main duties of the Accurate Instruments Hire & Rental Fleet.
Designed in Germany, the Arrow4 is one of the most reliable, easy to use pipe lasers available on the market. It has a grade input range of -10 to +40%, with self leveling in both the main and cross axis.
The unique “Grade Matching” feature of the Arrow4 allows for the alignment of the laser out of the trench/pipe with existing above ground references such as stakes, pegs or warratahs. Once the left/right alignment is completed, the laser returns to the exact desired grade.
The ZRC125 remote control is easy to operate with the left/right line control, centering and LED vertical reference light .

The QBL/Geomax Arrow4 comes standard with a 5 Year Manufacturer's warranty covers any defects in materials or workmanship.

Specifications

  • Accuracy: +/- 4.8mm at 100m (10 arc seconds)
  • Laser Class: Class2, less than 1mW
  • Self Leveling: Yes, -15 to +45% range
  • Cross Axis Self Leveling: Manual
  • Grade Range: -10 to +40%
  • Grade Increments: 0.001%
  • Remote Control Range: 100m
  • Battery Type: Rechargeable Li-Ion
  • Battery Life: 40 hours rechargeable
  • Weight: 2.08kg incl. batteries
  • Weather Protection: IP67

Packages

Product Details Price
QBL/Geomax Arrow4 Pipe Laser

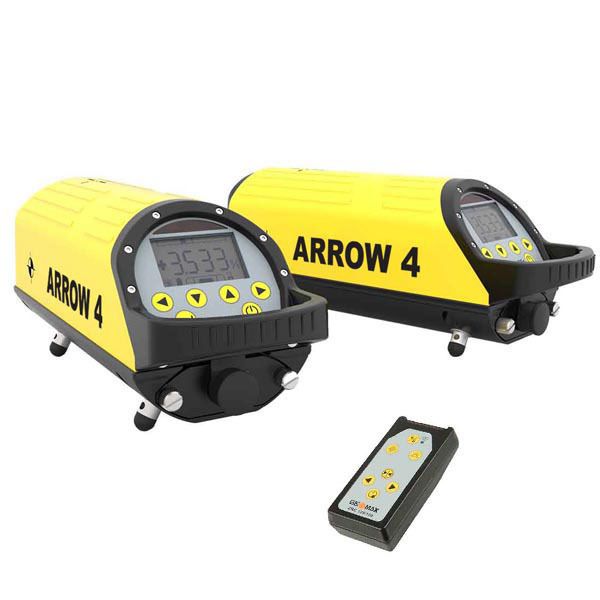

Arrow4 laser, ZRC125 remote control, universal target set, lithium ion battery & charger, 3 sets of feet, 12V accessory cable, NZ dated calibration sticker, shockwatch, NZ test calibration certificate - laminated, user manual and hard carry case.

CALL 0800 500 380 FOR LATEST PRICING
Available for hire
