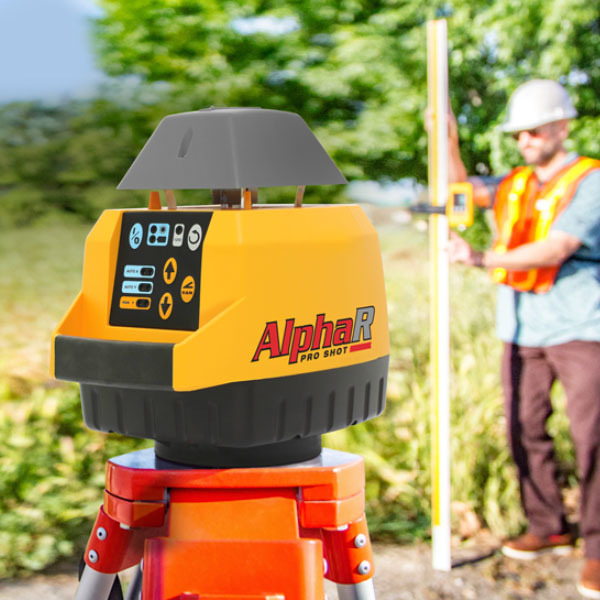

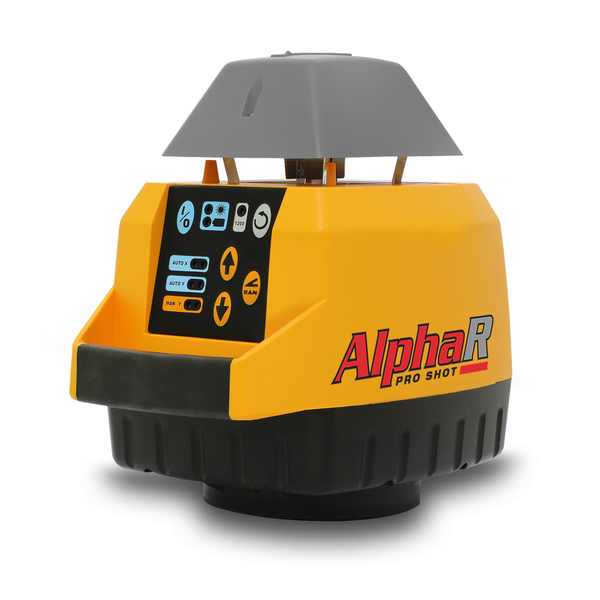

Pro Shot AlphaR Laser Level

Brand new for 2024, the AlphaR from Pro Shot in the USA, is a long range self leveling construction laser level with remote slope capability.

Made in the USA, the Pro Shot AlphaR is a new model for 2024.
Following up from one of the most popular laser levels in NZ construction leveling history, the Alpha, the AlphaR features a longer capable operating range of up to 1400 meters.

For the convenience of manual slope alignment, the AlphaR includes a remote control, which allows users to align the AlphaR to a slope up to 8%.
The remote also has the facility of turning the AlphaR into sleep mode (off) to save battery life.

The new R10 laser receiver comes standard in the AlphaR package.
This durable new receiver features dual front and rear LCD displays for easy to read 5 channel elevation control, with two precision accuracy settings and an extra loud volume setting for even the noisest of worksites.

The AlphaR is also available with the HL700 digital receiver, which digitally displays the height elevation on the LCD. The operator can see exactly how many millimeters they are above or below grade.

The Pro Shot AlphaR has the best standard warranty available in the business, period. The 8 Year Manufacturer's warranty on the AlphaR laser head unit, covers any defects in materials or workmanship whilst in addition the Alpha also comes standard with an 8 Year Knockdown warranty for the head unit, which covers the internal leveling mechanism, laser diode, optics and rotating mirror against damage from any cause.

Specifications

  • Accuracy: +/-10 arc seconds (+/-1.5mm at 30 meters)
  • Operating Diameter: 1400 meters (with HL700 receiver)
  • Self Leveling Type: Electronic servo motors
  • Rotation Speed: 600 & 1200RPM
  • Laser Type: 650 nm, Class 3A
  • Water & Dust Protection: IP56
  • Operating Temperature: -20° C to +60° C
  • Weight: 1.92kg
  • Battery Power: 4x C size Alkaline batteries
  • Battery Life: 200 hours
  • Warranty: 8 years

Packages

Product Details Price
Pro Shot AlphaR Laser Level

AlphaR laser with 4x C alkaline batteries, R10 receiver with clamp and 2x AA alkaline batteries, heavy duty flat aluminium tripod, NZ dated calibration sticker, shockwatch, NZ test calibration certificate - laminated, user manual and hard carry case.

  • LASER-PS-ALPHAR
    $1,998.00 + GST
Pro Shot AlphaR Laser Level with HL700 Digital Receiver & Tripod

AlphaR laser, Spectra Precision HL700 'mm' digital receiver with clamp, remote control, heavy duty flat aluminium tripod, alkaline batteries, NZ dated calibration sticker, shockwatch, NZ test calibration certificate - laminated, user manual and hard carry case.

  • LASER-PS-ALPHAR_HL700
    $2,398.00 + GST
5meter 5/10mm Aluminium Leveling Staff

5meter E 10mm Aluminium Leveling Staff with Bag & bubble.

  • LASER-PS-ALPHAR-5MSTAFF
    $100.00 + GST
