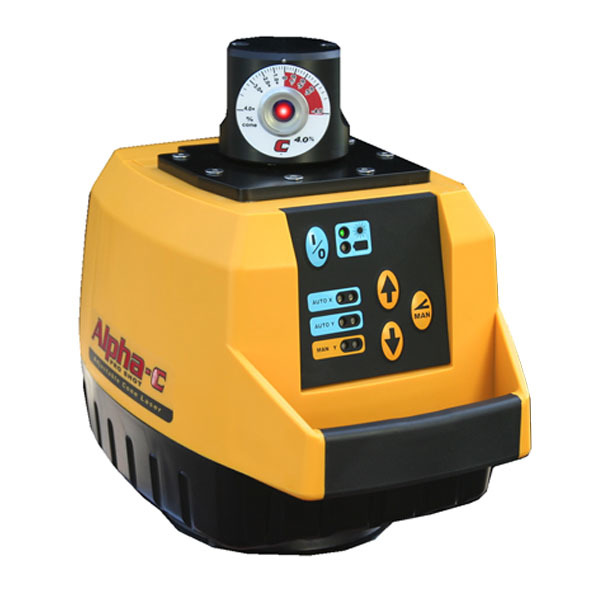

Pro Shot Alpha C Laser Level

Unique Coning grade laser by Pro Shot for projected + or - conical grades up to a 4% either up or down.

The Pro Shot Alpha C is a specialised automatic grade laser designed for coning grade applications where a cone or laser light is required.

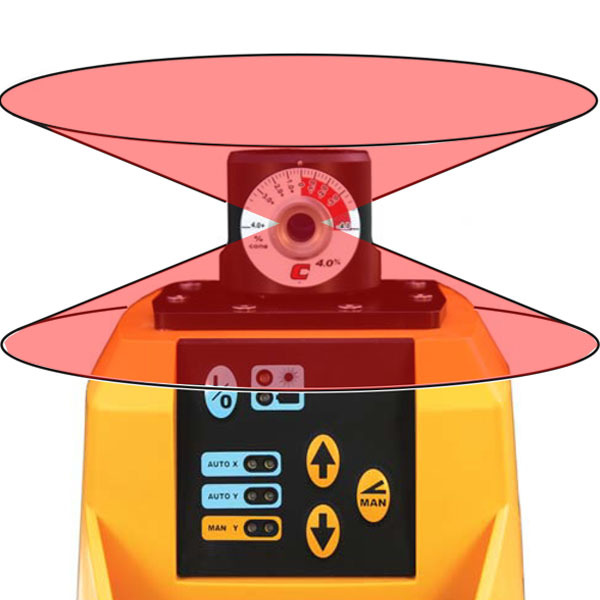

This unique, adjustable, cone projecting head lets you set-up with the laser tool at the high point, or low point of a conical sloping reference of laser light.
The Alpha C can project as much as a 4% sloped cone of laser light either up or down, with increments of 0.25%.
Applicable applications for the Alpha C include drainage sumps, ponds and lakes, sporting fields, rotary platforms or any application that requires an increased or reduced level at the centre point of the construction job.

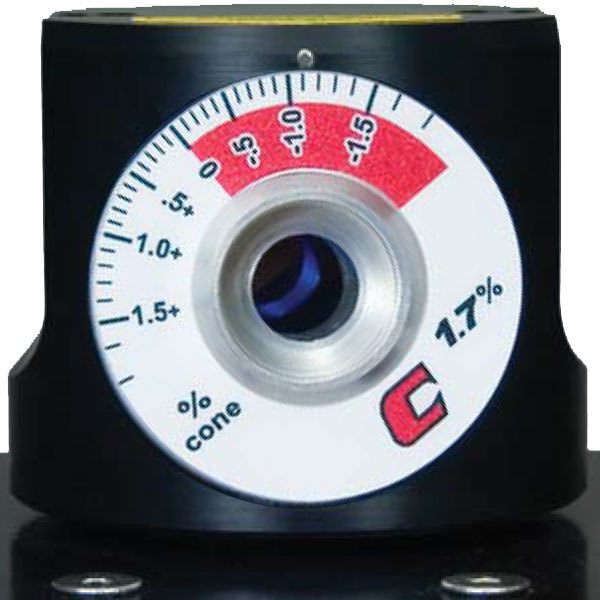

Aa fine adjustment 1.7% head is also available.

The Alpha C has a 2 Year Manufacturer's warranty covering any defects in materials or workmanship.

Specifications

  • Accuracy: +/- 1.5mm at 30m (10 arc seconds)
  • Self Leveling: Yes
  • Grade Range: Cone grade +/- 4%
  • Grade Increments: 0.25%
  • Operating Diameter: 610m
  • Rotation Speed: 600 & 1200RPM
  • Battery Type: 4x C alkaline
  • Battery Life: 75 hours
  • Weight: 1.92kg incl. batteries
  • Weather Protection: IP56

Packages

Product Details Price
Pro Shot Alpha C Laser Level

Alpha C laser, alkaline batteries, NZ dated calibration sticker, shockwatch, NZ test calibration certificate - laminated, user manual and hard carry case.

EMAIL sales@accurate.kiwi FOR LATEST PRICING
Available for hire
