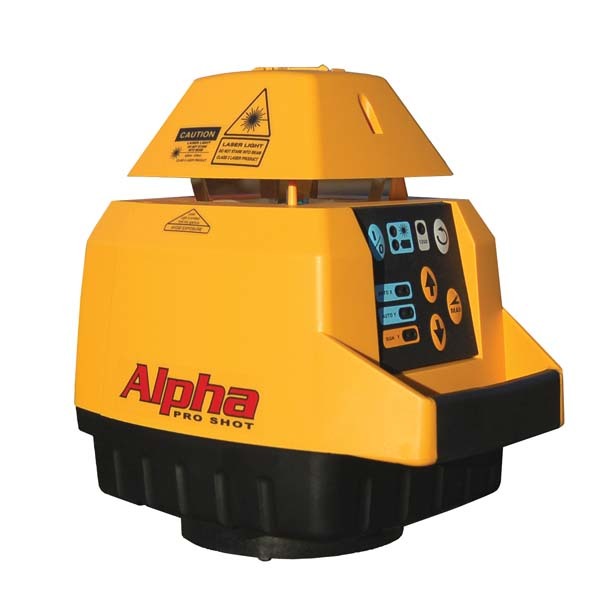

Pro Shot Alpha Laser Level
One of New Zealand's largest selling construction laser levels, the Pro Shot Alpha, manufactured in the USA, is a rugged electronic self levelling laser suitable for all high accuracy horizontal levelling applications.
Made in the USA, the Pro Shot Alpha is a popular robust automatic self leveling laser level designed for builders, concrete placers, landscapers, commercial and civil contractors.
Simply mount the laser onto a heavy duty tripod, press power, and the Alpha automatically levels by itself. If the laser is bumped or knocked during use, the height alert automatically turns off the laser and warns the operator.
The Alpha also features a manual grade slope matching feature, with up and down arrows. This allows the user to align the laser for single grade slope and drainage work. Whilst in manual slope mode, the Alpha has the added advantage of “Cross Axis Self-levelling”, which keeps the cross axis level at all times.
The standard package includes the durable and simple to use R9 laser receiver.
If you are searching for a digital receiver, choose the package with HL450 'mm' laser receiver, with digitally displays the height elevation on the LCD. The operator can see exactly how many millimeters they are above or below grade.
The package that includes the HL700 features a wider deadband of 127mm, with anti strobe mode, more accuracy settings and longer detection range.
With an operating range of 610 meters and a high rotation speed of up to 1200RPM, the Alpha provides superior accuracy even on the largest civil contracting sites.
The Pro Shot Alpha has the best standard warranty available in the business, period. The 8 Year Manufacturer's warranty on the Alpha laser head unit, covers any defects in materials or workmanship whilst in addition the Alpha also comes standard with an 8 Year Knockdown warranty for the head unit, which covers the internal leveling mechanism, laser diode, optics and rotating mirror against damage from any cause.
Specifications
- Accuracy: +/-10 arc seconds (+/-1.5mm at 30 meters)
- Operating Diameter: 610 meters (with R9 receiver)
- Self Leveling Type: Electronic servo motors
- Rotation Speed: 600 & 1200RPM
- Laser Type: 670 nm, Class 2
- Water & Dust Protection: IP56
- Operating Temperature: -20° C to +60° C
- Weight: 1.92kg
- Battery Power: 4x C size Alkaline batteries
- Battery Life: 200 hours
- Warranty: 8 years
Packages
Product | Details | Price |
---|---|---|
Pro Shot Alpha Laser Level | Alpha laser with 4x C alkaline batteries, R9 receiver with clamp and 1x 9V alkaline battery, heavy duty flat aluminium tripod, NZ dated calibration sticker, shockwatch, NZ test calibration certificate - laminated, user manual and hard carry case. |
|
Pro Shot Alpha Laser Level with HL450 Digital Receiver & Tripod | Alpha laser with 4x C alkaline batteries, HL450 'mm' digital receiver with C45 clamp and 2x AA alkaline batteries, heavy duty flat aluminium tripod, NZ dated calibration sticker, shockwatch, NZ test calibration certificate - laminated, user manual and hard carry case. |
|
Pro Shot Alpha Laser Level with HL700 Digital Receiver & Tripod | Alpha laser with 4x C alkaline batteries, HL700 'mm' digital receiver with C70 clamp, bubble and 2x AA alkaline batteries, heavy duty flat aluminium tripod, NZ dated calibration sticker, shockwatch, NZ test calibration certificate - laminated, user manual and hard carry case. |
|
5meter 5/10mm Aluminium Leveling Staff | 5meter E 10mm Aluminium Leveling Staff with Bag & bubble. |
