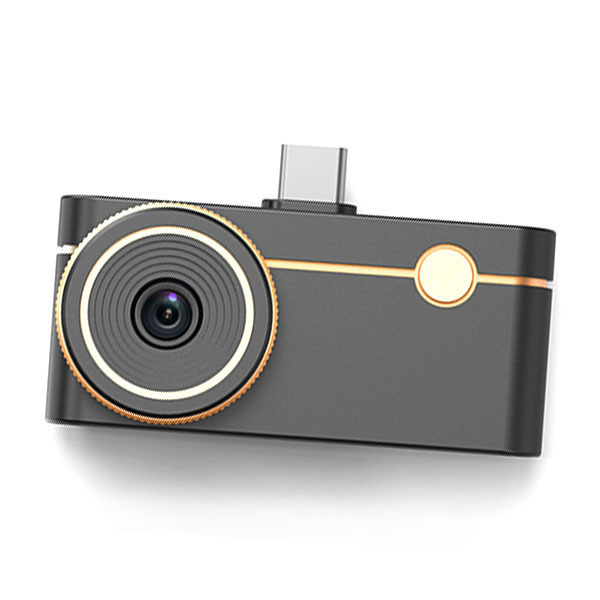

Thermal Master P3 Mobile Thermal Camera

The Thermal Master P3 offers the same high specification as the P2 model, with the same 512x384 Super IR resolution detector, though the one P3 device works natively with both iOS and Android.

The Thermal Master P3 takes the best of the P1 and P2 IR cameras and add’s in the rare versatility of manual focussing, not often seen on a USB IR camera.

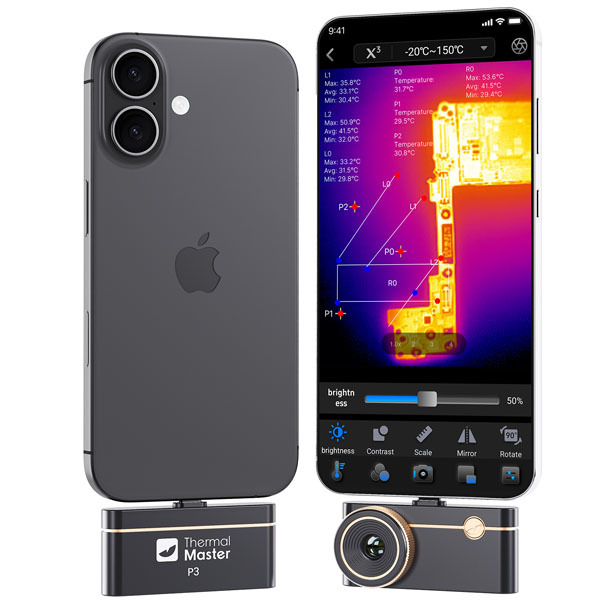

Compatible with BOTH Android and iOS architecture from the same USB device, the P3 features an IR resolution of 256x192 pixels (49,152 pixels) with enhanced X³IR™ Super Resolution scaling to 512x384 pixels.
The advanced upscaling occurs in the software app using a built-in RazorX AI algorithm to digitally double the clarity and sharpness of the image.

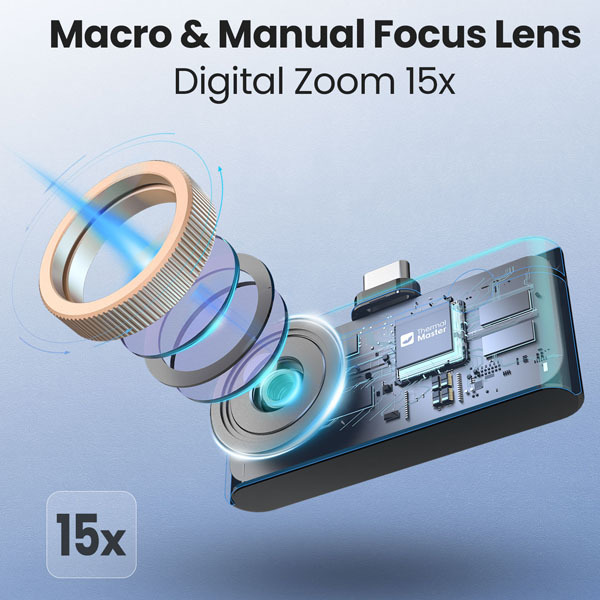

Manual Focussing
The manual focus capability is the standout feature of the Thermal Master P3.
It provides precise optical clarity for both extreme macro imaging down to 8 millimeters as well as long-distance building surveys.

This mechanical control, combined with internal X³IR Super Resolution AI, delivers uncompromised thermal data compared to pixelated digital zoom models.

Specifications

  • Detector Size: 256 x 192 (49,152 pixels)
  • X3IR Super Resolution: Yes, 512 × 384 pixels
  • Thermal Sensitivity (NETD): 35 mK
  • Temperature Measuring Range: -20 to +600° C
  • Frame Rate: 25Hz
  • Lens Size: 56x42.2°
  • Display: dependent on the phone model
  • Geometric Resolution: 3.82 mRad
  • Fusion Imaging: Yes
  • Picture In Picture (PIP): Yes
  • Focus System: Fixed 4.3mm
  • Video Recording: Yes
  • Video Out/External Monitor: No
  • Voice Annotation: No
  • Connectivity: USB Type C, Lightning to USB-C adaptor
  • Battery Type: Internal phone
  • Battery Life: 320mW power consumption
  • Weight: 27 grams
  • Warranty: 2 Years

Packages

Product Details Price
Thermal Master P3 Mobile Thermal Camera

P3 thermal camera (iOS), USB-C pass-through/extension cable, USB-C to lightning adapter, user manual, quick start guide, transport case

  • INFRARED-TM-P3
    $645.00 + GST
