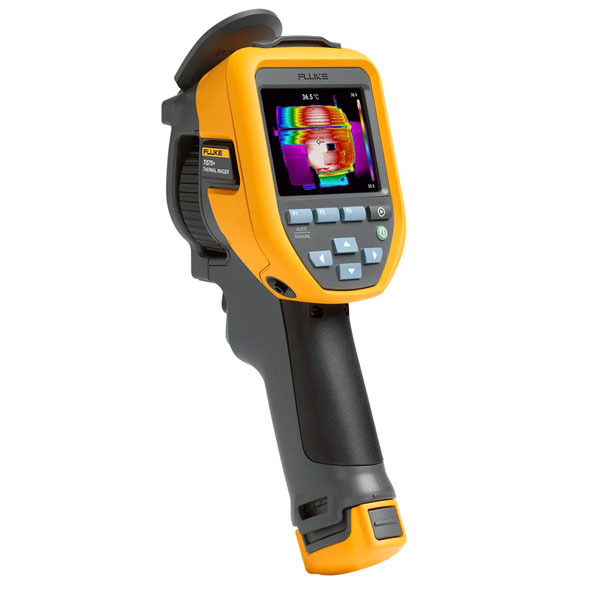

Fluke TiS75+ Thermal Imaging Camera

The Fluke TiS75+ lifts the game with a 384 x 288 resolution detector, a low 40mK thermal sensitivity and IS3 and AVI video recording, and you don't have to be an infrared expert to utilise it.

The performance model of the TiS+ series, the TiS75+ combines sharp imaging performance with increased features. Be proactive instead of reactive and take your plan for a proactive maintenance (PM) and thermal survey program and turn it into reality.

The TiS75+ includes Asset Tagging, which allows you to easily compare asset images over time. An excellent feature if you have a regular survey program of the same asset and or location.
Scanning the QR code on each asset creates a timeline of your inspections. Use the time saved (25% on average spent organizing thermal images) to analyze asset images for trends, diagnosing issues and fixing problems before they become failures.
The Fluke TiS75+ offers features to help you tackle almost anything you’ll face in the field. In addition to the features noted above, the TiS75+ also includes:

  • IS3 and AVI video recording
  • Data streaming
  • 40mK thermal sensitivity
  • 384 x 288 thermal resolution (110,592 pixels)
  • High temperature range—up to 550 °C
  • Dew-point calculation
  • 1.91 mRad geometric resolution
  • Specifications

    • Detector Size: 384 x 288 (110,592 pixels)
    • SuperResolution (NETD): No
    • Thermal Sensitivity (NETD): 0.04° C (40 mK)
    • Temperature Measuring Range: -20 to +550° C
    • Frame Rate: 27Hz
    • Lens Size: 42x30°
    • Display: 3.5" touchscreen LCD
    • Geometric Resolution: 1.91 mRad
    • IR-Fusion®: Yes
    • Picture In Picture (PIP): Yes
    • Focus System: Manual
    • MultiSharp™ focus: No
    • LaserSharp® Auto Focus: No
    • Video Recording: Yes, Radiometric. AVI and IS3 format
    • Video Out/External Monitor: No
    • Voice Annotation: Yes, 60 seconds max per image (optional Bluetooth headset required)
    • Connectivity: WiFi, Mini USB
    • Battery Type: Li-Ion Smart Battery
    • Battery Life: approx. 3.5 hours continuous
    • Weight: 885g incl. battery
    • Warranty: 2 Years

    Packages

    Product Details Price
    Fluke TiS75+ Thermal Imaging Camera

    TiS75+ camera with 42x30° lens, mains power supply, 1x Li-Ion smart battery with charger, USB cable, 4GB micro SD card, soft transport bag, hand strap and hard transport case, Fluke Connect APP and Desktop download.

    • INFRARED-FLUKE-TiS75+
      $9,910.00 + GST
    Fluke TiS75+ Bluetooth Headset

    Bluetooth Headset for TiS75+.

    • INFRARED-FLUKE-TiS75+HEADSET
      $154.00 + GST
    Fluke TiS75+ 12V Automotive Charger

    Automotive 12V Charger for TiS75+.

    • INFRARED-FLUKE-TiS75+12VCHARGER
      $119.00 + GST
