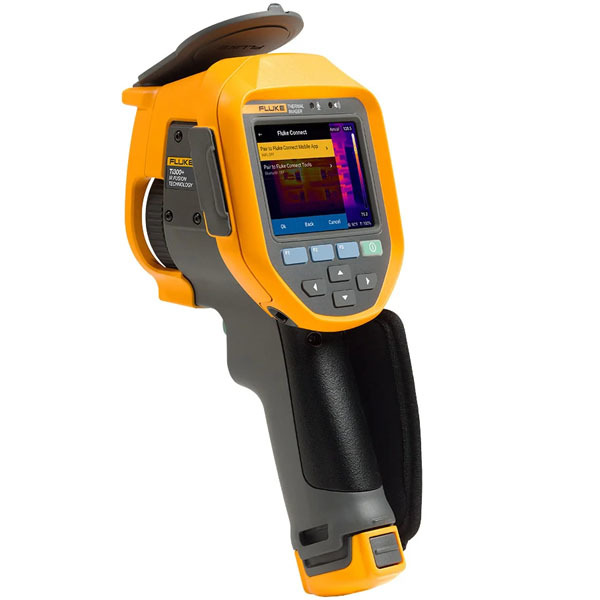

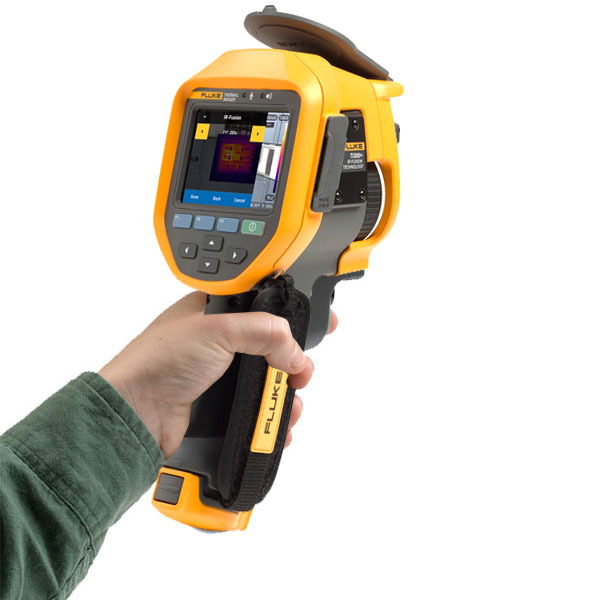

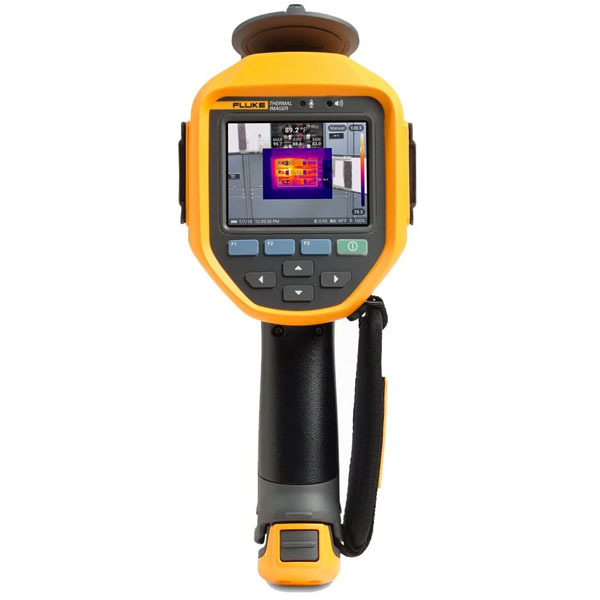

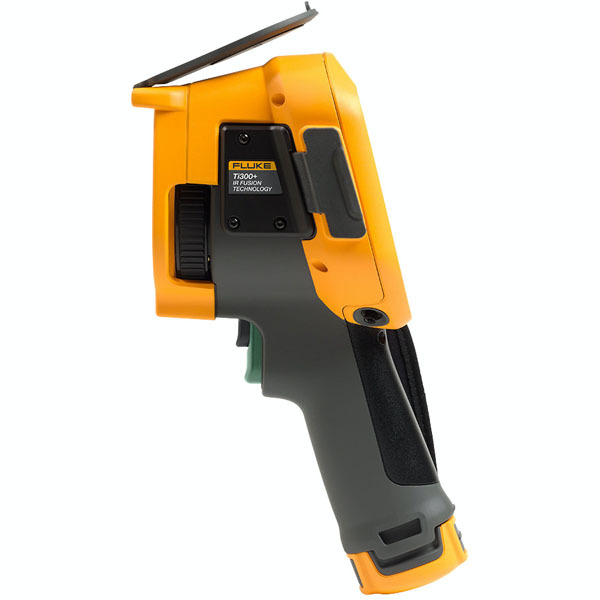

Fluke Ti300U Infrared Thermal Camera

High performance accurate thermal imaging with reliable results, the 384 x 288 pixel TiS300U from Fluke features LaserSharp™ AutoFocus, providing correctly focused imaging everytime.

The new Fluke Ultra Series Thermal Cameras - Fluke Ti480U/Ti401U/Ti300U come with superior performance, with improvements in thermal imaging resolution, focus speed, frame rate and software features when compared with previous versions.

The thermal resolution on the Ti300 has increased to 388 x 284, with the geometric resolution lowering to 1.14 mRad and a new updated robust sensor and optical system that delivers enhanced image sharpness to capture a clear image for better quality image presentation.

The UltraFocus technology features an effective focus algorithm that in one second uses the laser distance autofocus and continuous auto focus function to make inspection work easier and more efficient.

The Ti300U now also features a 30Hz frame rate to support smooth screen operation and video recording for moving objects, whilst also supporting up to 4x digital zoom for easy screen zooming and checking of long-distance targets such as high voltage equipment, overhead pipelines, and large mechanical equipment.

Specifications

  • Detector Size: 384 x 2880 (110,592 pixels)
  • SuperResolution (NETD): No
  • Thermal Sensitivity (NETD): 0.075° C (75 mK)
  • Temperature Measuring Range: -20 to +650° C
  • Frame Rate: 30Hz
  • Lens Size: 25x19°
  • Display: 3.5" touchscreen LCD
  • Geometric Resolution: 1.14 mRad
  • IR-Fusion®: Yes
  • Picture In Picture (PIP): Yes
  • Focus System: Manual or Automatic
  • MultiSharp™ focus: No
  • LaserSharp® Auto Focus: Yes
  • Video Recording: Yes; is5, .mp4 file format
  • Video Out/External Monitor: Yes
  • Voice Annotation: Yes, 60 seconds max per image (optional Bluetooth headset required)
  • Connectivity: WiFi, Type-A, USB 2.0, Mini HDMI interface, HDMI 1.4
  • Battery Type: Li-Ion Smart Battery
  • Battery Life: approx. 2-3 hours continuous
  • Weight: 1.18 kgs
  • Warranty: 2 Years
