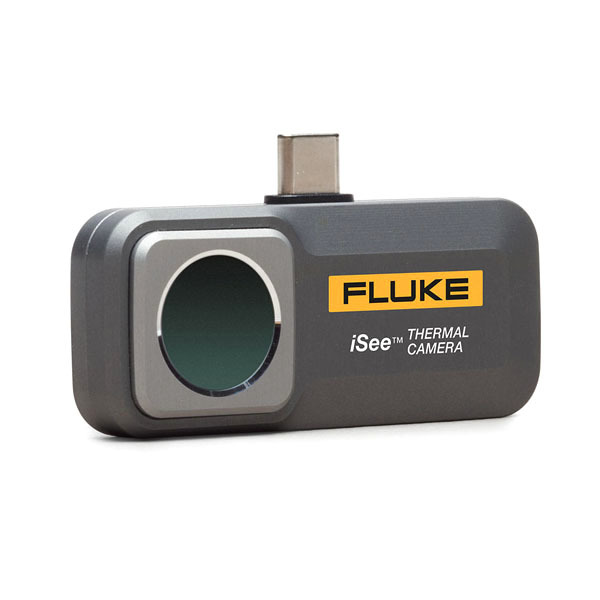

Fluke iSee TC01 Mobile Thermal Camera

Re-defining cost effective thermal imaging with sharp image quality, the iSeeTM from Fluke is an Android and iOS compatible infrared thermal imaging sensor with a resolution of 256 x 192 pixels.

Leveraging the convenience of an Android (TC01A) Type-C or iOS Apple (TC01B) lightning interface, the Fluke iSeeTM thermal camera enables excellent resolution thermal imaging detection and temperature measurement wherever and whenever necessary.

Easy to use/install, simply scan the packaging box QR code to download the Fluke iSee mobile thermal camera app, plug and play.


The Fluke iSeeTM is not just a USB tool, but a revolution in thermal imaging technology.

With a detector resolution of 256 x 192 pixels, it provides detector resolution and image quality comparable with many professional thermal imaging devices, setting a high standard in the industry. Its sensitivity to temperature variations makes it a tool for meticulous thermal screenings.

The wide temperature range of -10 to 550 ℃ makes it the perfect assessment tool for so many applications, especially those where price has inbitied the use of thermal imaging technology.

Its functionality is further highlighted by use of Fusion technology, to pair infrared and visible light images, a feature that aids in pinpointing, comparing, and archiving data efficiently. With a frame refresh rate of 25Hz, enjoy lag free imaging when using the iSee in real time.

Communication is seamless with real-time image-sharing capabilities, removing barriers and facilitating smooth collaboration.

The iSeeTM is mad of high quality aluminum material, with uniquely treated and laser etched surface protection and is test rated to a 1 meter drop, IP54 ingress protection (IP56 for iOS), all standard and reknown Fluke durability.

NOTE: For Apple compatibility, the iPhone must have a lightning connection.

Specifications

  • Detector Size: 256 x 192 (49,152 pixels)
  • SuperResolution: No
  • Thermal Sensitivity (NETD): 0.05° C (50 mK)
  • Temperature Measuring Range: -10 to +550° C (-20 to +550° C for iOS)
  • Frame Rate: 25Hz
  • Lens Size: 56x42°
  • Display: dependent on the phone model
  • Geometric Resolution: 3.81 mRad;
  • IR-Fusion®: Yes
  • Picture In Picture (PIP): No
  • Focus System: Fixed 3.2mm
  • MultiSharp™ focus: No
  • LaserSharp® Auto Focus: No
  • Video Recording: Yes
  • Video Out/External Monitor: No
  • Voice Annotation: No
  • Connectivity: USB Type C (Android); Lightning (iOS)
  • Battery Type: Internal phone
  • Battery Life: 350mW power consumption (200mW for iOS)
  • Weight: 22 grams
  • Warranty: 2 Years

Packages

Product Details Price
Fluke iSee TC01 Mobile Thermal Camera

TC01A thermal camera (ANDROID), packaging box with QR code for iSee APP, user manual

  • INFRARED-FLUKE-TC01A
    $698.00 + GST
Fluke iSee TC01B Mobile Thermal Camera (iOS)

TC01B thermal camera (iOS), packaging box with QR code for iSee APP, user manual

  • INFRARED-FLUKE-TC01A-TC01B
    $797.00 + GST
