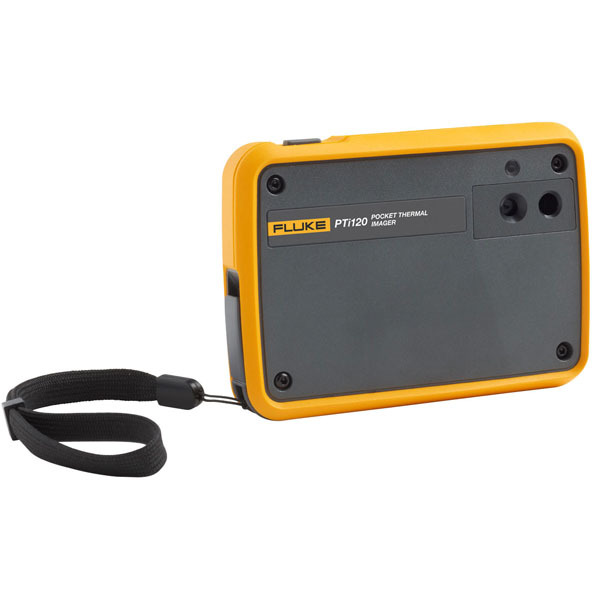

Fluke PTi120 Pocket Thermal Imaging Camera

Compact pocket sized infrared camera from Fluke featuring a 120 x 90 pixel detector with IR-FusionTM, for quick and simple temperature scans of electrical equipment, machinery and other critical assets.

In the right place, at the right time, with the right tool. The bigger the problem, the faster you need to solve it.

The Fluke Pocket Thermal Camera has the power to minimize downtime in everyone’s hands. The first line of defense for easy troubleshooting. A camera small enough to carry every day without worry. Always at hand.

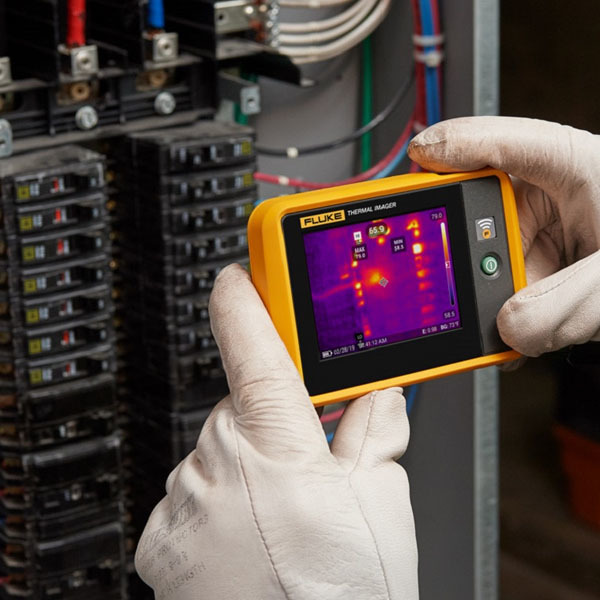

Now enhanced infrared inspections are right in your pocket for quick temperature scans of electrical equipment, machinery and other assets, automatically save your thermal images to the right folders.

Send images via WiFi or automatically upload once you connect to a network or computer via USB. Now you can more efficiently save, find and report on issues before they become problems.

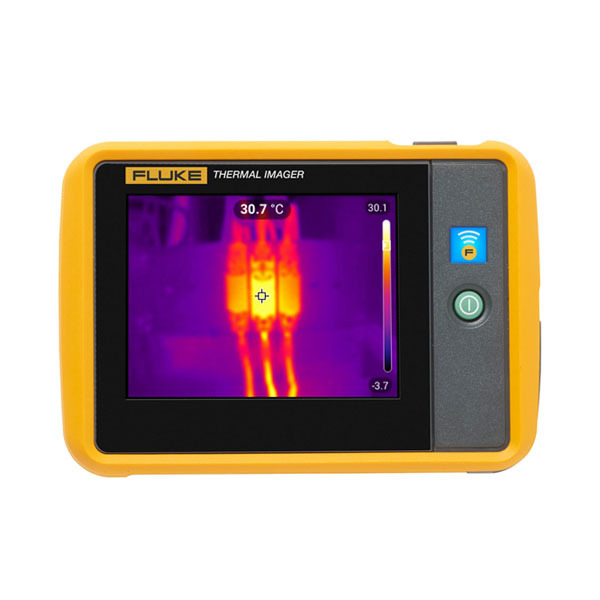

The 3.5” LCD touchscreen offers IR-Fusion™ to blend a visible light image with an infrared image to more easily locate problems. Simply slide your finger across the screen to adjust the setting.

Compared with similar style entry level compact IR cameras, the PTi120 features better thermal sensitivity and a high temperature measuring range.

The PTi120 is compatible with the Fluke Connect® APP, which is the best way to stay in contact with your team without leaving the field.

To calculate the spatial resolution for FOV using the PTi120, click here.


DOWNLOADS
Fluke Connect Desktop Software

Specifications

  • Detector Size: 120 x 90 (10,800 pixels)
  • SuperResolution: No
  • Thermal Sensitivity (NETD): 0.06° C (60 mK)
  • Temperature Measuring Range: -20 to +400° C
  • Frame Rate: 9Hz
  • Lens Size: 50x38°
  • Display: 3.5" touchscreen LCD
  • Geometric Resolution: 7.6 mRad; D:S 130:1
  • IR-Fusion®: Yes
  • Picture In Picture (PIP): No
  • Focus System: Fixed
  • MultiSharp™ focus: No
  • LaserSharp® Auto Focus: No
  • Video Recording: No
  • Video Out/External Monitor: No
  • Voice Annotation: No
  • Connectivity: WiFi, Mini USB
  • Battery Type: Internal Li-Ion
  • Battery Life: approx. 2 hours continuous
  • Weight: 233 grams
  • Warranty: 2 Years

Packages

Product Details Price
Fluke PTi120 Pocket Thermal Imaging Camera

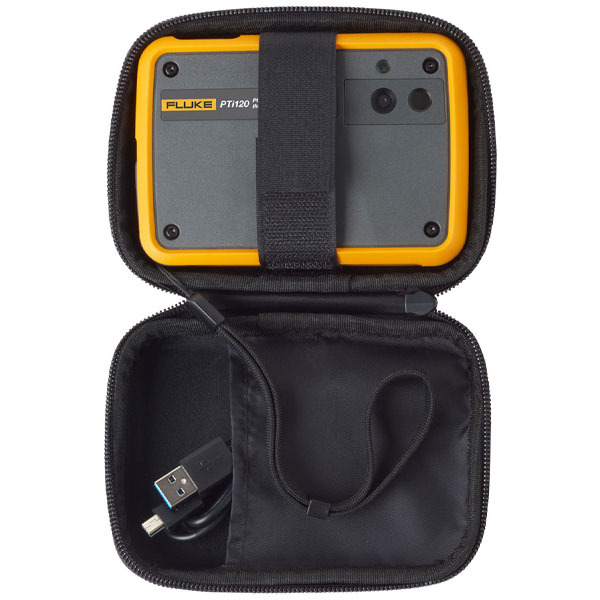

PTi120 camera with 50x38° in-built lens and internal rechargeable battery, USB cable, lanyard, soft case, Fluke Connect APP and Desktop download.

  • INFRARED-FLUKE-PTI120
    $1,675.00 + GST
