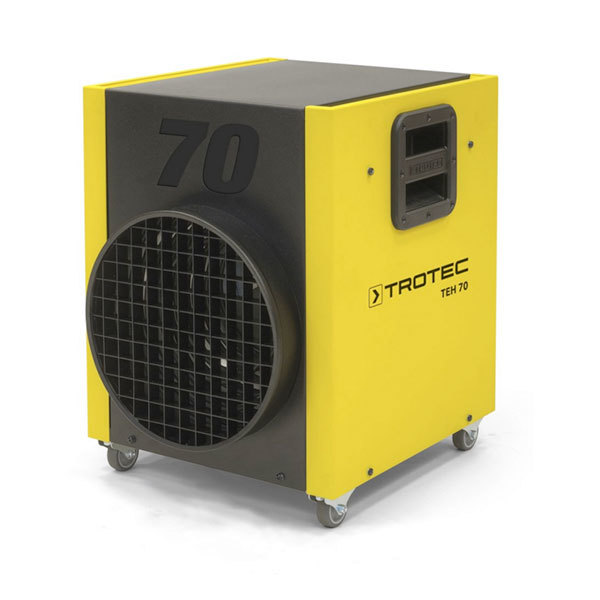

Trotec TEH70 Heater

Heating power and economy, the professionally made in Germany TEH70 is a 3 phase electric heater with adaptions for hose ducting, and a maximum heat output of 12kW.

The TEH70 is a 400W, 3 phase electric heater with a maximum heating capacity of 12kW.
Because it doesn't require fuel to burn to generate the heat, the TEH70 provides
condensation-free heating.
Another by-product of no fuel is no fumes.
Electric heating is one of the most driest sources of heating available so if moisture is an issue, this method will dry faster and control humidity better.

Designed and manufactured in Germany, the TEH70 is constructed from durable sheet metal with a double wall construction to eliminate heat loss.

The integrated heavy duty plastic handles makes portability a breeze whilst the design facilitates stacking of multiple units.

An optional 305mm tempertaure grade flexible 7.6m hose can be attached to the TEH70 to distribute the heat into confined spaces or to further away locations.

The TEH70 is supplied with a 5pin CEE female power socket on the heater. An approved 3 phase power extension lead is required for operation of this model. These are available as an accessory.

The Trotec TEH70 comes standard with a 1 Year Manufacturer's warranty covering any defects in materials or workmanship.

Specifications

  • Heating performance max.: 12 kW
  • Air flow rate: 1,258m³/h
  • Power: 18 A
  • Mains voltage: 400 V / 50 Hz
  • Power connector: CEE 32 A, 5-polar
  • Connection cable: accessories
  • Thermostat: integrated
  • Noise level: 66dB (A)
  • Overheat protection: Yes
  • Protection type: na
  • Length: 400 mm
  • Width: 405 mm
  • Height: 480 mm
  • Weight: 29.5 kg

Packages

Product Details Price
Trotec TEH70 Heater

TEH70, CEE 32 A, 5-pin connector, user guide. Optional 3 phase 20m power lead available.

CALL 0800 500 380 FOR LATEST PRICING
Trotec 3 Phase 32amp Power lead

20 metre power lead for the TEH70 and TEH1003 phase heaters with CEE 32A 5 pin connectors.

  • HEATER-TROTEC-TEH70-LEAD
    $340.00 + GST
Trotec SPT305 Temperature Ducting 7.6m

Temperature grade flexible ducting with reinforced steel spirals for added strength with a maximum temperature of up to 100°C.

  • HEATER-TROTEC-TEH70-HOSE
    $105.00 + GST
Trotec Hose Lashing Strap

Adjustable connecting strap with an automatic stop mechanism at the strap buckle used to connect the ducting to the TEH heaters.

  • HEATER-TROTEC-TEH70-HOSESTRAP
    $15.00 + GST
