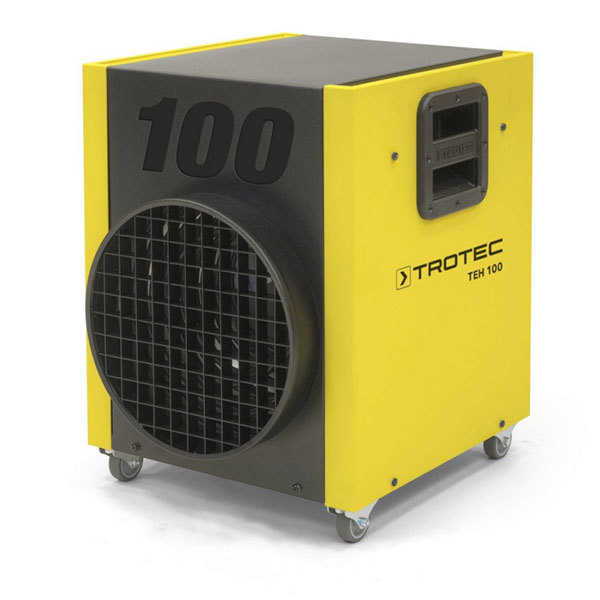

Trotec TEH100 Heater

Professional made in Germany 18kW high output 3 phase heater with adaptions for hose ducting.

The TEH100 is the highest output model of the TEH series from Trotec.
It is a 400W, 3 phase electric heater with a maximum heating capacity of 18kW.
Because it doesn't require fuel to burn to generate the heat, the TEH100 provides
condensation-free heating.
Another by-product of no fuel is no fumes.
Electric heating is one of the most driest sources of heating available so if moisture is an issue, this method will dry faster and control humidity better.

Designed and manufactured in Germany, the TEH100 is constructed from durable sheet metal with a double wall construction to eliminate heat loss.

The TEH100 is supplied with a 5pin CEE female power socket on the heater. An approved 3 phase power extension lead is required for operation of this model. These are available as an accessory.

The integrated heavy duty plastic handles makes portability a breeze whilst the design facilitates stacking of multiple units.

An optional 305mm tempertaure grade flexible 7.6m hose can be attached to the TEH100 to distribute the heat into confined spaces or to further away locations.

The Trotec TEH100 comes standard with a 1 Year Manufacturer's warranty covering any defects in materials or workmanship.

Specifications

  • Heating performance max.: 18 kW
  • Air flow rate: 1,785 m³/h
  • Power: 27.2 A
  • Mains voltage: 400 V / 50 Hz
  • Power connector: CEE 32 A, 5-polar
  • Connection cable: accessories
  • Thermostat: integrated
  • Noise level: 69dB (A)
  • Overheat protection: Yes
  • Protection type: na
  • Length: 400 mm
  • Width: 405 mm
  • Height: 480 mm
  • Weight: 29.5 kg

Packages

Product Details Price
Trotec TEH100 Heater

TEH100, CEE 32 A, 5-pin female connector, user guide. Optional 3 phase 20m power lead available.

SPECIAL ORDER ITEM - CALL 0800 500 380 FOR LATEST PRICING
Trotec 3 Phase 32amp Power lead

20 metre power lead for the TEH70 and TEH1003 phase heaters with CEE 32A 5 pin connectors.

  • HEATER-TROTEC-TEH100-LEAD
    $340.00 + GST
Trotec SPT305 Temperature Ducting 7.6m

Temperature grade flexible ducting with reinforced steel spirals for added strength with a maximum temperature of up to 100°C.

  • HEATER-TROTEC-TEH100-HOSE
    $105.00 + GST
Trotec Hose Lashing Strap

Adjustable connecting strap with an automatic stop mechanism at the strap buckle used to connect the ducting to the TEH heaters.

  • HEATER-TROTEC-TEH100-HOSESTRAP
    $15.00 + GST
