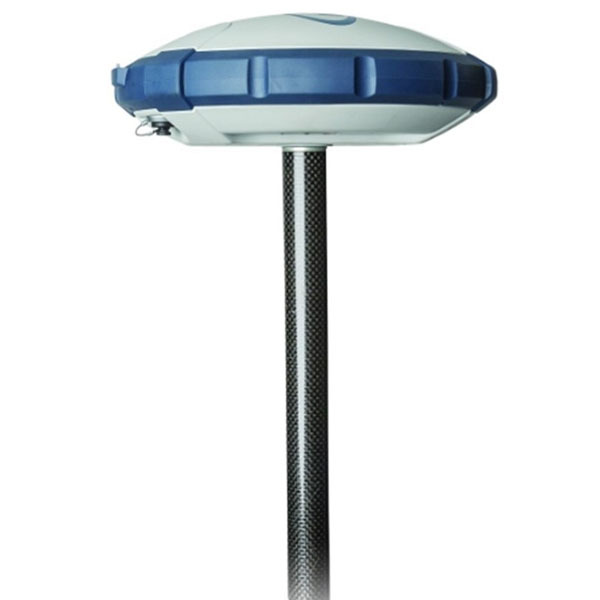

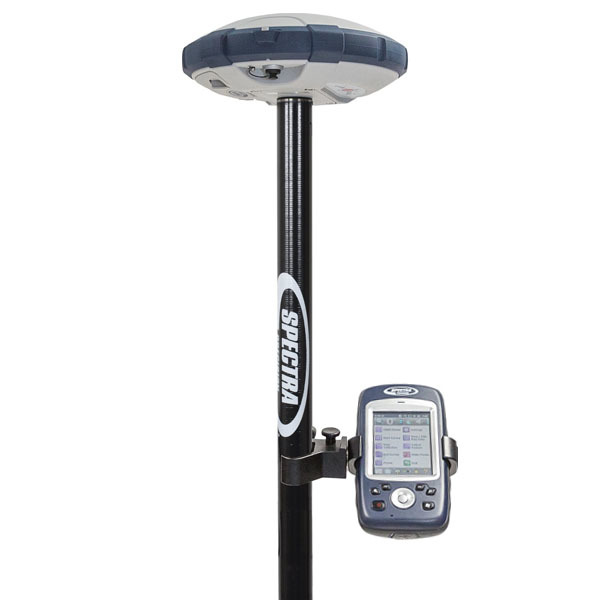

EX HIRE Spectra Geospatial SP60 GNSS GPS

The Spectra Geospatial SP60 is a new generation GNSS receiver offering a high level of flexibility to cover any survey demand from simple post-processing, through UHF or Long Range Bluetooth base and rover systems to sophisticated RTK and RTX rover solutions.

Extremely scalable and versatile, SP60 can respond to any type of surveying job, starting with a simple L1 GPS only post-processing solution up to dual-frequency GNSS network RTK rover. SP60 integrates powerful Long Range Bluetooth capabilities opening new operation modes to surveyors. Now, the Bluetooth wireless communication can be used as an alternative radio link between base and rover for a few hundred metres range making this solution very attractive for small site surveys. Easier and simpler than UHF radio, and without any need for a license this can be a very efficient way to quickly setup a short range base rover solution. The patented UHF antenna, set inside the fiberglass rod, extends the range of RTK radio performance and provides protection at the same time. All these enhancements make the design of SP60 GNSS receiver unique and powerful. Spectra Geospatial Survey Pro or FAST Survey field software provides an easy-to use, yet powerful GNSS workflow, letting the surveyor concentrate on getting the job done. Spectra Geospatial Survey Office Software provides a complete office suite for data processing and Spectra Geospatial Central cloud computing solution offers a simple to use pathway to data exchange and management. Moreover, combined with the most advanced and rugged field data collectors from Spectra Geospatial, SP60 is a very powerful and complete solution.

Specifications

  • GNSS Channels: 240
  • Signal Detection GPS: GPS L1C/A, L1P(Y), L2P(Y), L2C
  • Signal Detection GLONASS: L1C/A, L2C/A, L3
  • Signal Detection Beidou: (Phase II) B1, B2
  • Signal Detection Galileo: E1, E5b
  • Signal Detection QZSS: L1C/A, L1-SAIF, L2C
  • Signal Detection SBAS Support: Yes
  • Data Processing: Up to 10 Hz real-time raw data (code & carrier and position output)
  • Recording Interval: 0.1 - 999 seconds
  • Memory: 256MB internal memory NAND Flash
  • Interface: RS232, USB-A 2.0, UART, Bluetooth 2.1 + EDR
  • Battery Life: 10 hours
  • Battery Type: Li-Ion, 38.5 Wh (2 x 7.4 V, 2600 mAh)
  • Weight: 0.93kg incl. battery
  • Weather Protection: IP67

Packages

Product Details Price
EX HIRE Spectra Geospatial SP60 GNSS GPS

SP60 Network GNSS receiver, 1x Li-Ion battery, dual dock battery charger, 25cm pole extension, UHF radio module, USB 2.0 to USB Mini cable, USB 2.0 to Serial 9-Pin Cable Adapter, 1.5m SAE Data/Power cable with SAE to DC adapter, 3.6m measuring tape, torx screwdriver T25, soft transport bag.

EMAIL sales@accurate.kiwi FOR LATEST PRICING
Available for hire
EX HIRE Spectra Geospatial SP60 GNSS GPS (1 only)

EX HIRE SP60 Network GNSS receiver, 1x Li-Ion battery, dual dock battery charger, 25cm pole extension, UHF radio module, USB 2.0 to USB Mini cable, USB 2.0 to Serial 9-Pin Cable Adapter, 1.5m SAE Data/Power cable with SAE to DC adapter, 3.6m measuring tape, torx screwdriver T25, soft transport bag. TPP firmware+hardware 12 month re-instatement available. 3 month warranty.

EMAIL sales@accurate.kiwi FOR LATEST PRICING
