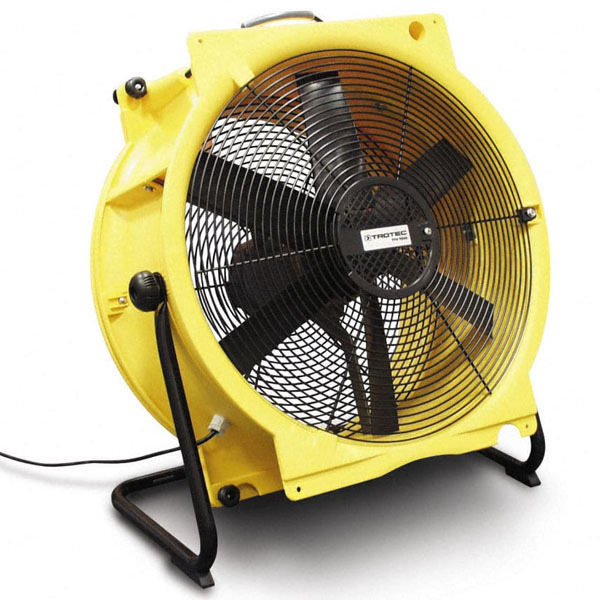

Trotec TTV7000 Fan
The TTV7000 is a high power, high quality and high performance axial fan with ventialtion speeds of up to 7000 m3/h
For users requiring large air changes and high volumes of air movement, the TTV7000 is the machine you need.
This high-performance fan is the first choice for all ventilation tasks in production or storage facilities or farms where large air volumes must be circulated.
With three settings for air movement, up to 7,000 m³/h, on the highest setting the TTV7000 can discharge air up to a distance of 65 metres in interior spaces.

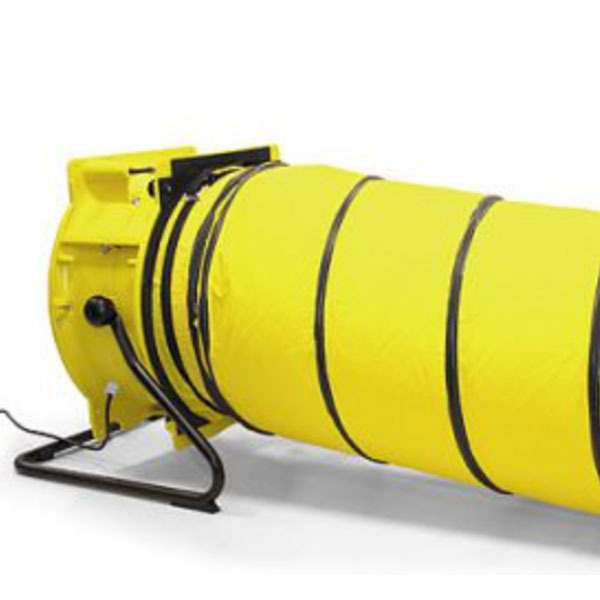

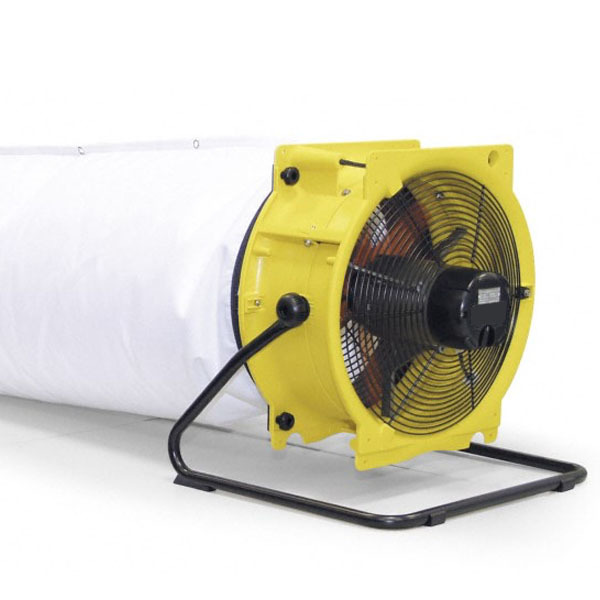

Optional 560mm flexible 7.6m hoses can be attached to the TTV7000 to distribute the air into confined spaces or to further away locations (adapter required). A washable 3m dust bag can also be attached to the rear of the fan and filters dust and dirt particles reliably out of the air.
The Trotec TTV7000 comes standard with a 1 Year Manufacturer's warranty covering any defects in materials or workmanship.
Specifications
- Airflow Rate: 7000 m3/hour maximum
- Stages: 2 stages/speeds
- Air Pressure: 80 Pa
- Hose/Ducting Size: 560mm diameter, 7.6m length
- Dust Bag Size: 3m length
- Power Consumption: 0.46kW max
- Noise Level: 58 dB (A)
- Weight: 15 kgs
- Dimensions: 690mm x 580mm x 360mm
- Warranty: 1 Year
Packages
| Product | Details | Price |
|---|---|---|
| Trotec TTV7000 Fan | TTV7000, 230V NZ/AUS power lead, user manual |
SPECIAL ORDER ITEM - CALL 0800 500 380 FOR LATEST PRICING
|
| Trotec TTV7000 Hose Adapter | Adapter for the TTV7000 fan required for connecting the 7.6m hose ducting |
|
| Trotec SPT560 Ventilation Ducting 7.6m | Ventilation/temperature grade flexible ducting with reinforced steel spirals for added strength with a maximum temperature of up to 100°C. |
|
| Trotec Hose Lashing Strap | Adjustable connecting strap with an automatic stop mechanism at the strap buckle used to connect the ducting to the TTV ventilators. |
