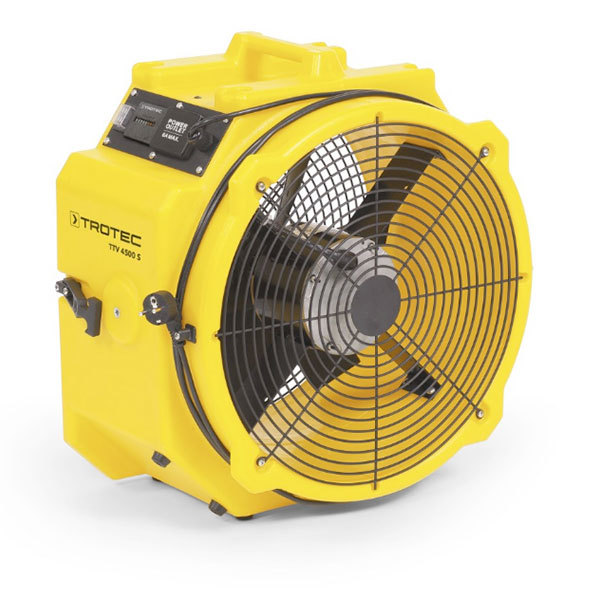

Trotec TTV4500S Fan

The TTV4500S is an axial fan with a high maximum air flow rate of up to 5,000 m3/h and an air pressure of 130 Pa.

Well suited to moving large volumes fair, the Trotec TTV4500S is an axial ventilator with dual air speeds and a maximum air movement of 5000 m3/h.
Combined with a pressure of 130 Pa, the TTV4500S can push air through the optional ducting up to a length of 15 meters.

Constructed from durable polycarbonate plastic, the TTV4500S is also lightweight making it easy and efficient to transport.

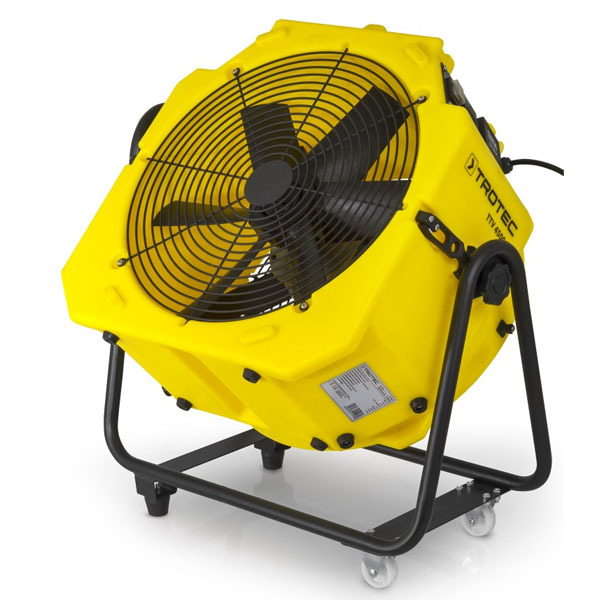

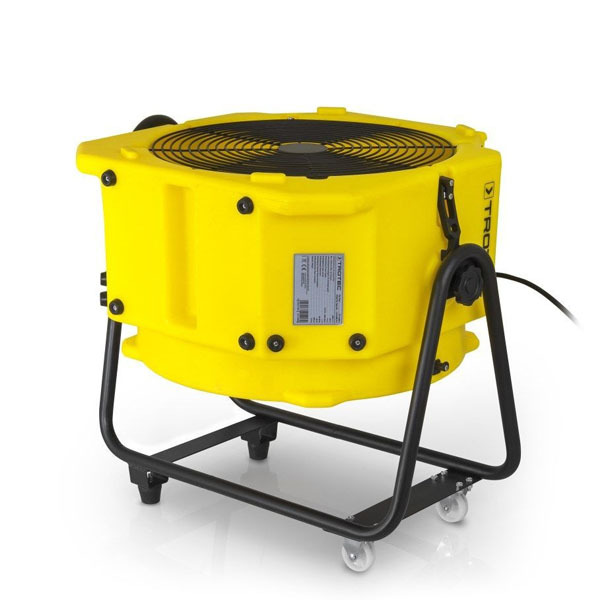

For targeted aeration of higher wall or ceiling areas, there is also an optional tilt frame available for the TTV 4500S. This allows movement of air direction controlled.

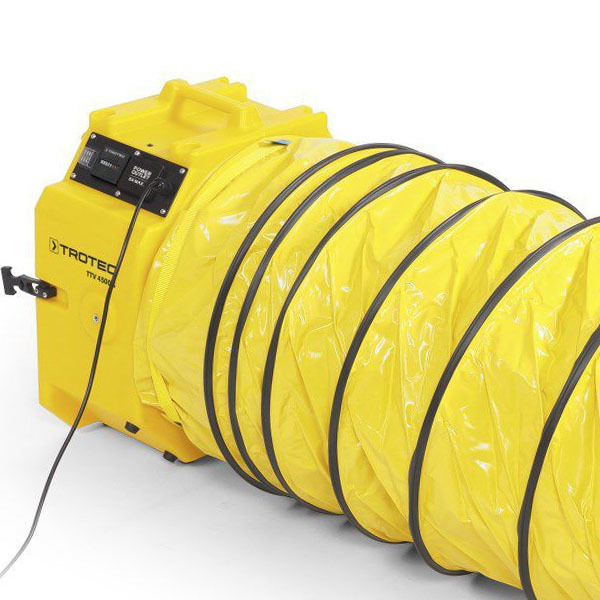

Optional 525mm flexible 7.6m hoses can be attached to the TTV4500S to distribute the air into confined spaces or to further away locations. A washable 5m dust bag can also be attached to the rear of the fan and filters dust and dirt particles reliably out of the air.

The Trotec TTV4500s comes standard with a 1 Year Manufacturer's warranty covering any defects in materials or workmanship.

Specifications

  • Airflow Rate: 5000 m3/hour maximum
  • Stages: 2 stages/speeds
  • Air Pressure: 130 Pa
  • Hose/Ducting Size: 525mm diameter, 7.6m length
  • Dust Bag Size: 5m length
  • Power Consumption: 0.33kW
  • Noise Level: 74 dB (A)
  • Dimensions: 560mm x 530mm x 330mm
  • Weight: 14.8kg

Packages

Product Details Price
Trotec TTV4500S Fan

TTV4500S, 230V NZ/AUS power lead, user manual

  • FAN-TROTEC-TTV4500S
    $585.00 + GST
Trotec TTV4500S Tilt Bracket

For targeted ventilation of the TTV4500S, the tilt bracket works at all installation angles including 90 degrees facing straight up.

  • FAN-TROTEC-TTV4500S-BRACKET
    $89.00 + GST
Trotec SPT525 Ventilation Ducting 7.6m

Ventilation/temperature grade flexible ducting with reinforced steel spirals for added strength with a maximum temperature of up to 100°C.

  • FAN-TROTEC-TTV4500S-HOSE
    $325.00 + GST
Trotec Hose Lashing Strap

Adjustable connecting strap with an automatic stop mechanism at the strap buckle used to connect the ducting to the TTV ventilators.

  • FAN-TROTEC-TTV4500S-HOSESTRAP
    $7.50 + GST
