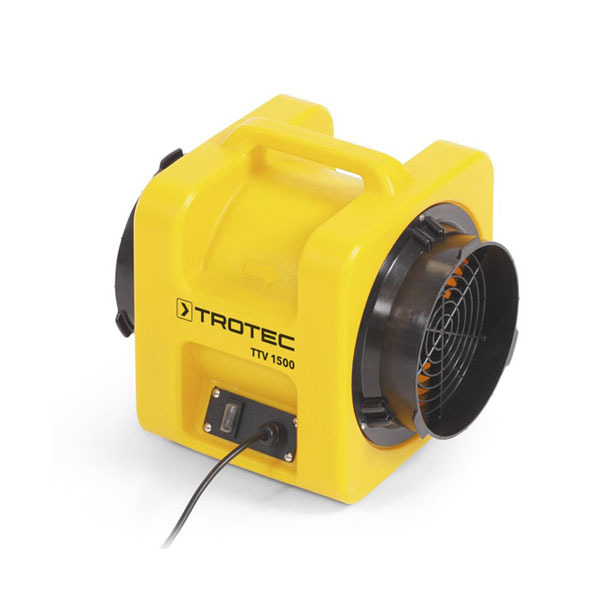

Trotec TTV1500 Fan

Single speed 1050 m3/h axial fan/ventilator for confined space air movement or general low-medium volume air movement.

The Trotec TTV1500 is a compact axial fan/ventilator designed for confined space ventilation and general air movement in small environments. It has a single speed operation of 1050 m3/h airflow.

It is ideally suited to small entry points with it's 8" (203mm) ducting.

Whether used for the fresh air supply in poorly ventilated areas or for ventilation during channel construction or welding jobs, wherever large amounts of air have to be circulated moderately, quickly and easily in not too harsh circumstances, the axial fans of the TTV-S series are in their element.
Just set it up, switch it on, all is done.

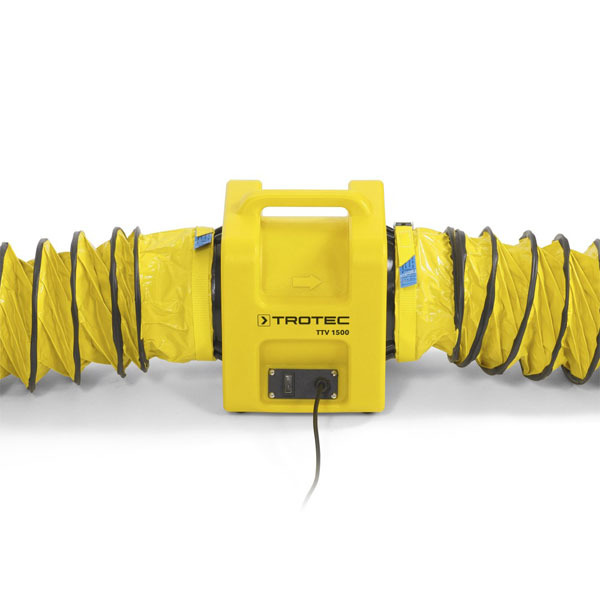

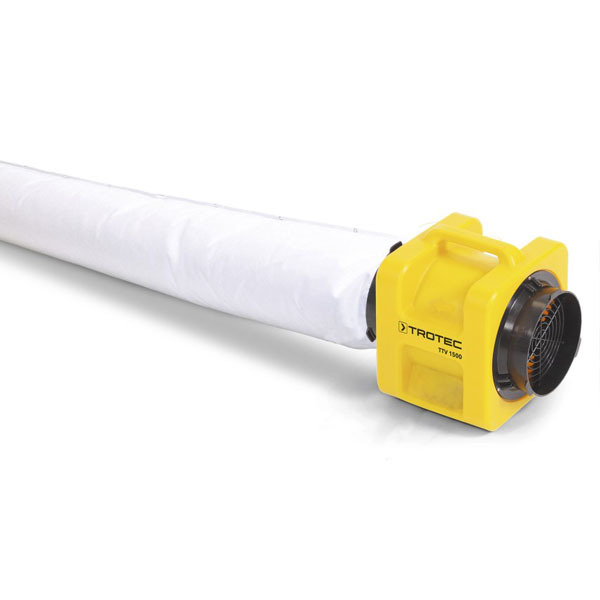

Optional 203mm flexible 7.6m hoses can be attached to the TTV1500 to distribute the air into confined spaces or to further away locations. A washable 3m dust bag can also be attached to the rear of the fan and filters dust and dirt particles reliably out of the air.

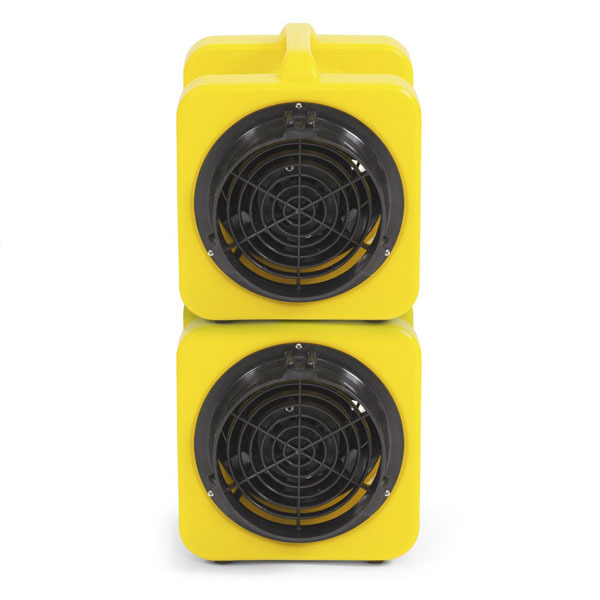

The TTV1500 is also stackable.
The Trotec TTV1500 comes standard with a 1 Year Manufacturer's warranty covering any defects in materials or workmanship.

Specifications

  • Airflow Rate: 1050 m3/hour
  • Stages: Single speed
  • Air Pressure: 225 Pa
  • Hose/Ducting Size: 203mm diameter, 7.6m length
  • Dust Bag Size: 3m length
  • Power Consumption: 0.17kW
  • Noise Level: 71 dB (A)
  • Dimensions: 348mm x 324mm x 285mm
  • Weight: 8kg

Packages

Product Details Price
Trotec TTV1500 Fan

TTV1500, 230V NZ/AUS power lead, user manual

  • FAN-TROTEC-TTV1500
    $369.00 + GST
Trotec SPT203 Ventilation Ducting 7.6m

Ventilation/temperature grade flexible ducting with reinforced steel spirals for added strength with a maximum temperature of up to 100°C.

  • FAN-TROTEC-TTV1500-HOSE
    $115.00 + GST
Trotec Hose Lashing Strap

Adjustable connecting strap with an automatic stop mechanism at the strap buckle used to connect the ducting to the TTV ventilators.

  • FAN-TROTEC-TTV1500-HOSESTRAP
    $7.50 + GST
Trotec 203mm Hose Joiner

Aluminium hose joiner 203mm used for connecting multiple lengths of SPT ducting to the TTV1500.

  • FAN-TROTEC-TTV1500-HOSEJOINER
    $45.00 + GST
