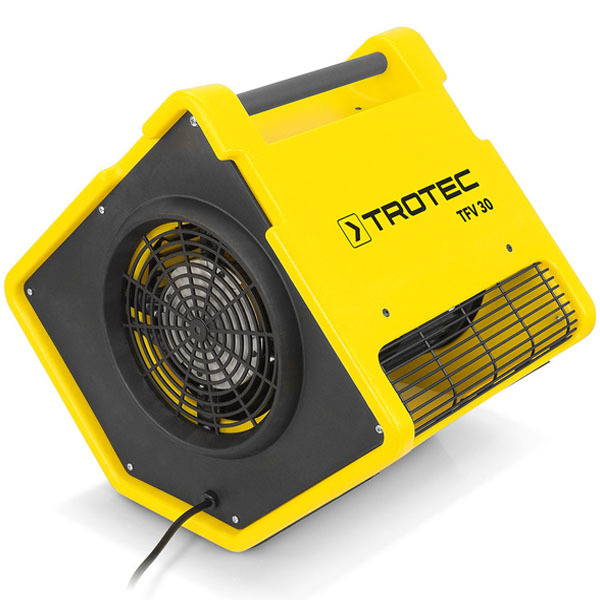

Trotec TFV30 Fan

Rectangular angled cube design portable fan used for carpet drying, building ventilation and flood restoration.

The TFV30 is a large powerful double-flow radial fan with an extra-large shaft and three-stage speed regulation.
In order to maximize the mechanical fatigue strength the fan motor is further enclosed by metal to provide protection against the infiltration of dust or dirt.

It has 3 different fan speeds, with a maximum airflow of 2200m3/hour.
Turbo fans are especially well-suited for operation in carpet and cavity drying and water damage restoration. They perform well when used in conjunction with dehumidifiers.

The TFV30 is designed to be operated at different angles of 0°, 45° or 90°, whilst retaining a stable position at all 3 angles. This means the air can be blown across the floor or surface, vertically or into the surrounding air/room.
It also features an operating hours counter.

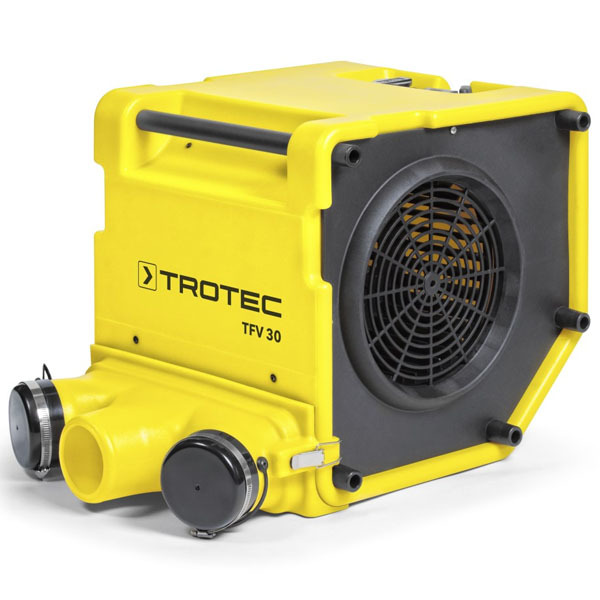

A triple hose connector is optionally available which allows the air flow to be directed to three different spots using just the 1 fan. If less than three hoses are used, the other connections are sealed.

The Trotec TFV30 comes standard with a 1 Year Manufacturer's warranty covering any defects in materials or workmanship.

NOTE: TFV30 internal multi socket connector not applicable for NZ use.

Specifications

  • Airflow Rate: Maximum 2200 m3/h
  • Air Pressure: 425 Pa
  • Stages: 3 stages/speeds
  • Hose/Ducting Size: up to 3 optional 100mm x6m hoses
  • Noise Level: 73.5 dB (A) (lowest stage)
  • Current: 3.8amp
  • Power Usage: 0.85kW
  • Weight: 19kg

Packages

Product Details Price
Trotec TFV30 Fan

TFV30, AUS/NZ power cable, user guide.

  • FAN-TROTEC-TFV30
    $705.00 + GST
Trotec TFV30 3-way Adapter

Adapter for the TFV30 allowing for 3 x 6m individual hoses to be connected for multiple air distribution

  • FAN-TROTEC-TFV30-ADAPTER
    $95.00 + GST
Trotec TF-L 100mm Hose set of 3

Set of 3x TF-L hoses that attach to the adapter for the TFV30, 6 meters in length.

  • FAN-TROTEC-TFV30-TFL100
    $267.00 + GST
