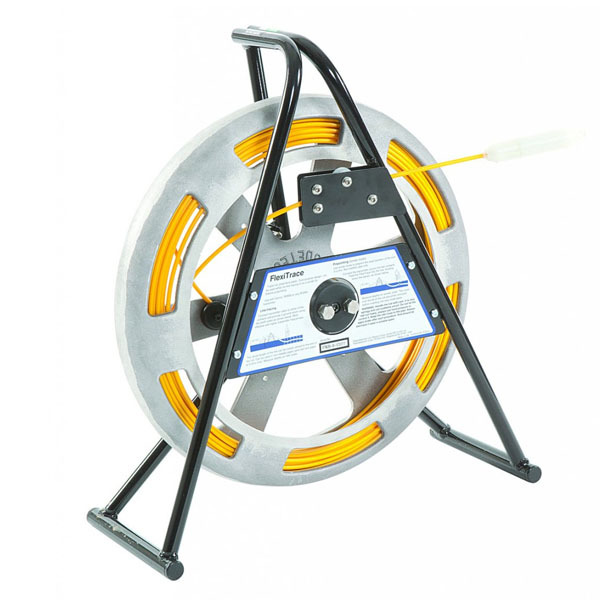

Radiodetection 50m Flexitrace Reel
The FlexiTrace reel is designed to be connected to a Genny or TX transmitter to assist in locating plastic pipes that generally cannot be found using a locator only.
The FlexiTrace is a 50meter rod (6mm diameter) that has wire conductors running its full length and a transmitting coil at the end.
It is designed to be connected to a Genny or TX transmitter where the signal generated, actively runs down the length of the wire, enabling its location to be traced.
Depending on how the FlexiTrace is connected to the transmitter, either the entire length of the rod or just the coil end can be traced to a maximum depth of 3m.
The FlexiTrace fits into pipes as small as 12mm with a minimum bend radius of 250mm.
Optional 80m length available upon request.
Specifications
- Construction: Glass fibre rod and wire conductors in a polypropylene sleeve on plastic coated steel spool
- Rod Length: 50m (optional 80m available)
- Rod Diameter: 5mm
- Transmitting End Diameter: 8mm
- Minimum Bend Radius: 25cm
- Weight: 6.6kg
- Power Rating: 1W
- Operating Frequency: Any transmitter output frequency
- Depth Range Down: to 3m, dependent on the transmitter setting
- Compatibility: Genny3/4, T1, TX-1, TX-5(B)*, TX-10(B) and RD5000
Packages
| Product | Details | Price |
|---|---|---|
| Radiodetection 50m Flexitrace Reel | Flexitrace 50m length cable with anodised reel. |
